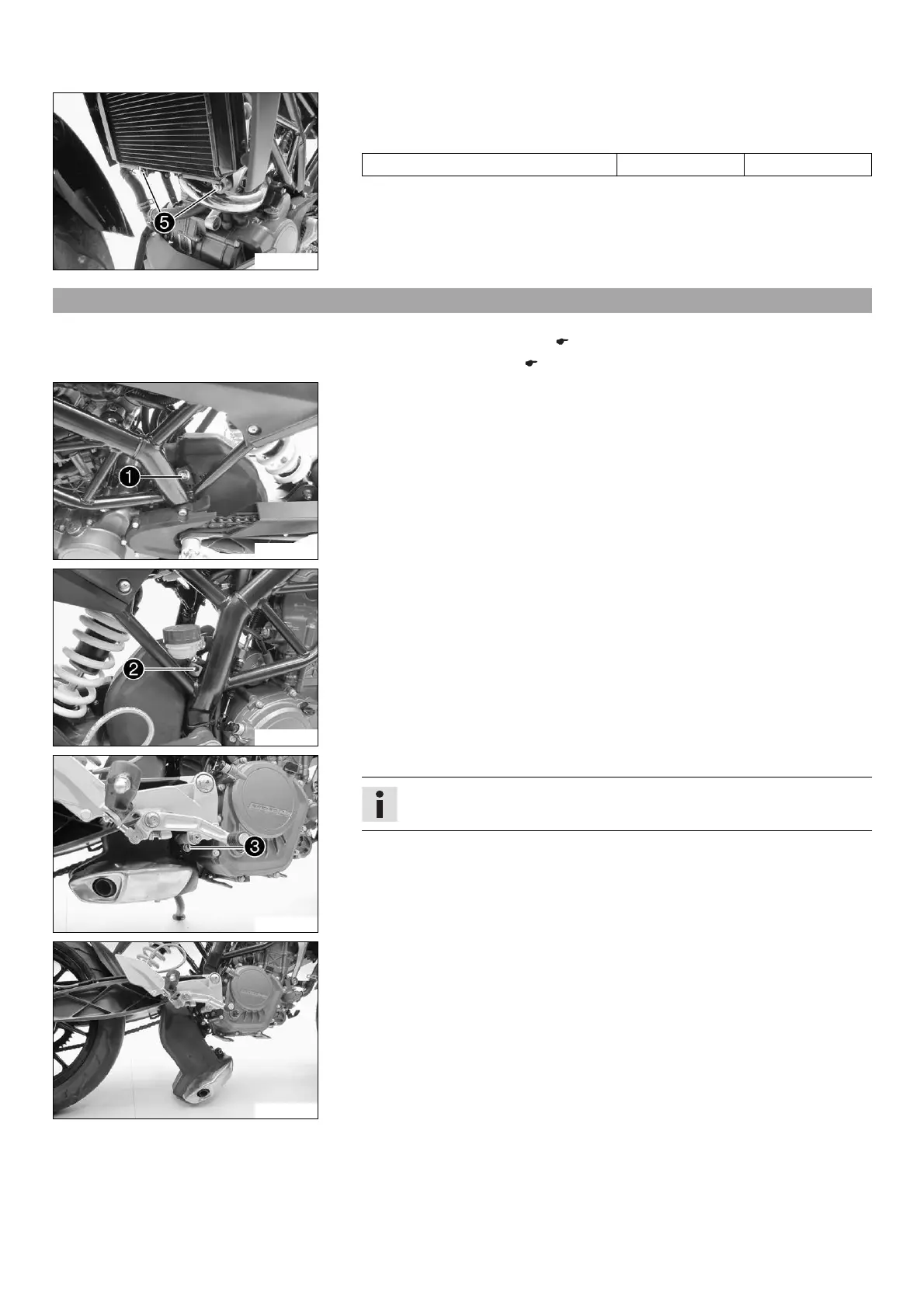

9 EXHAUST 35

304843-11

– Position the radiator.

– Mount and tighten nuts 5.

Guideline

Nut, radiator M6 5 Nm (3.7 lbf ft)

9.3 Removing the main silencer

Preparatory work

– Remove the exhaust manifold. ( p. 33)

– Remove the front spoiler. ( p. 47)

304849-10

Main work

– Remove screw 1 with washers.

304850-10

– Remove screw 2 with washers.

304851-10

– Remove screw 3.

Info

Do not misplace the sleeves.

304852-10

– Remove the main silencer toward the bottom.
