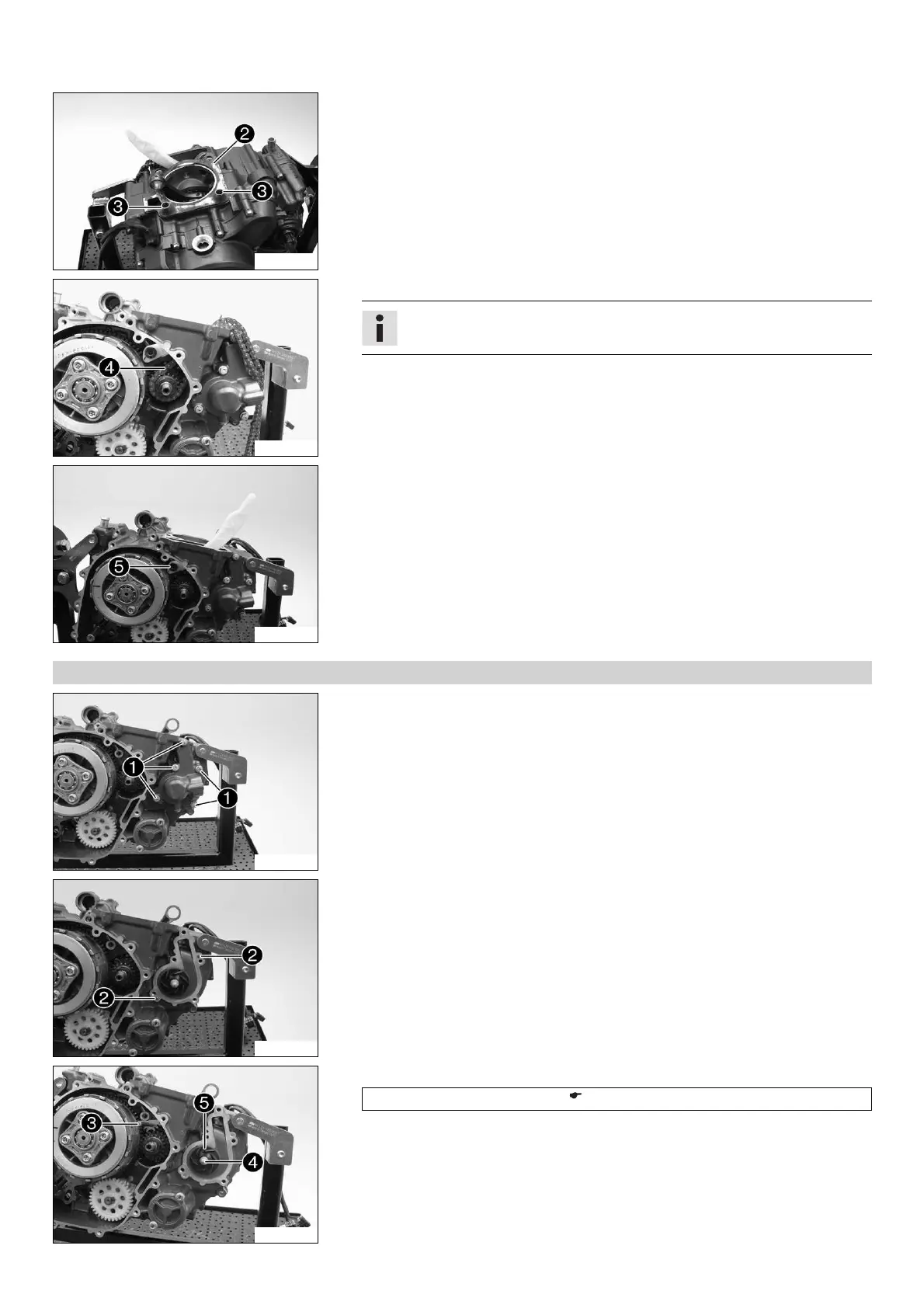

16 ENGINE 109
305831-10
– Take off cylinder base gasket 2.
– Remove dowels 3.
305832-10
– Slip out timing chain 4.
Info
If the timing chain is to be reused, mark the direction of travel.
305833-10
– Remove screw 5.
– Take off the timing chain tensioning rail from above.
16.3.46 Removing the water pump wheel (200 Duke)
305837-10
– Remove screws 1.
– Remove the water pump cover with the gasket.
305838-10
– Remove locating pins 2.
305839-10
– Lock the clutch basket and primary gear using special tool 3.
Gear segment (90129081100) ( p. 259)
– Remove nut 4 with washer.
– Take off the water pump wheel 5.
