16 ENGINE 180

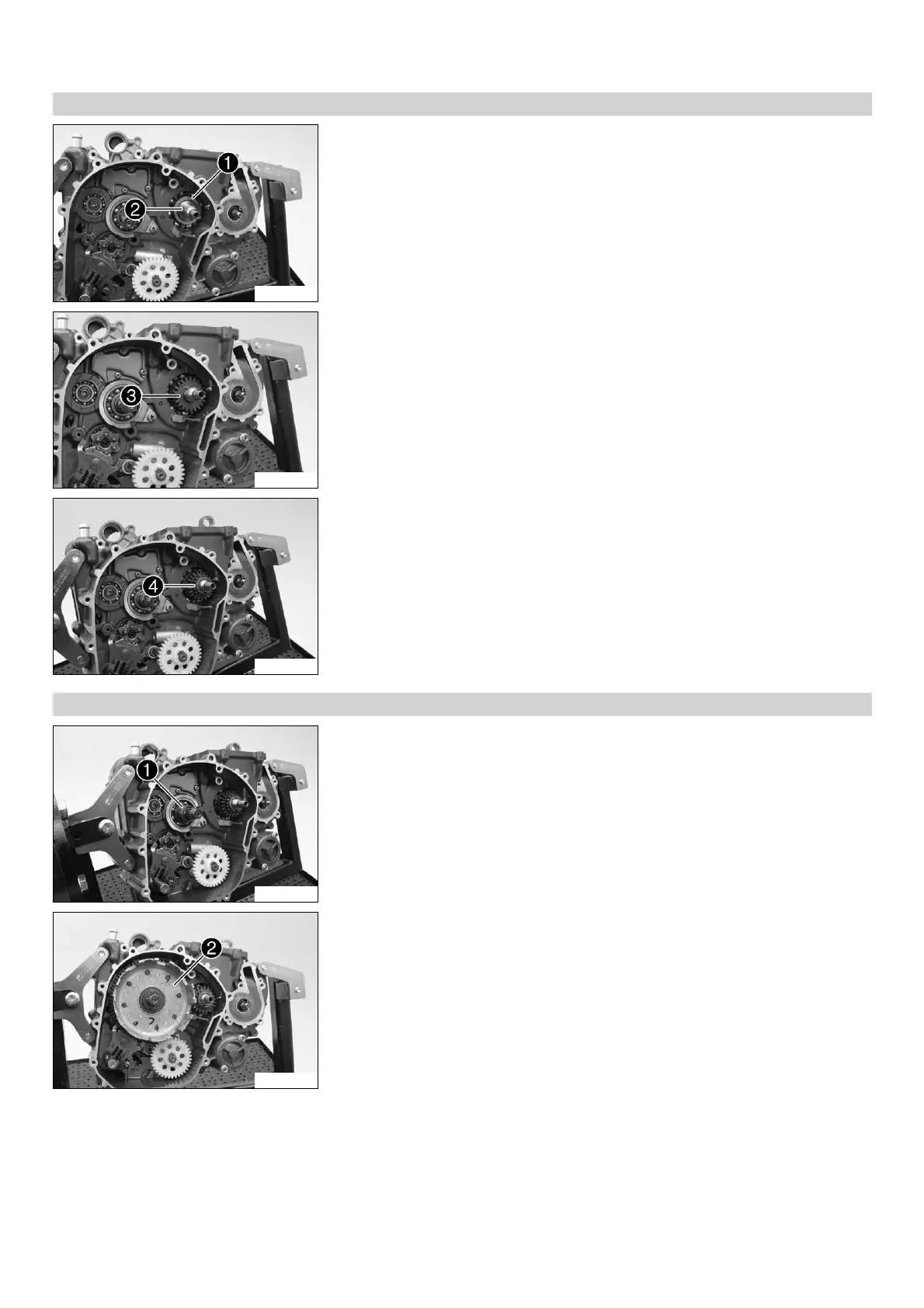

16.5.47 Installing the primary gear (200 Duke)

305867-11

– Position spacer ring 1.

– Mount spring washer 2.

305866-11

– Mount primary gear 3.

305865-11

– Mount timing chain sprocket 4.

16.5.48 Installing the clutch basket (200 Duke)

305862-11

– Mount collar sleeve 1.

305861-11

– Slide the clutch basket 2 onto the gearbox main shaft. Turn the oil pump gear

until the gear teeth of the clutch basket mesh.
