13 WIRING HARNESS, BATTERY 65

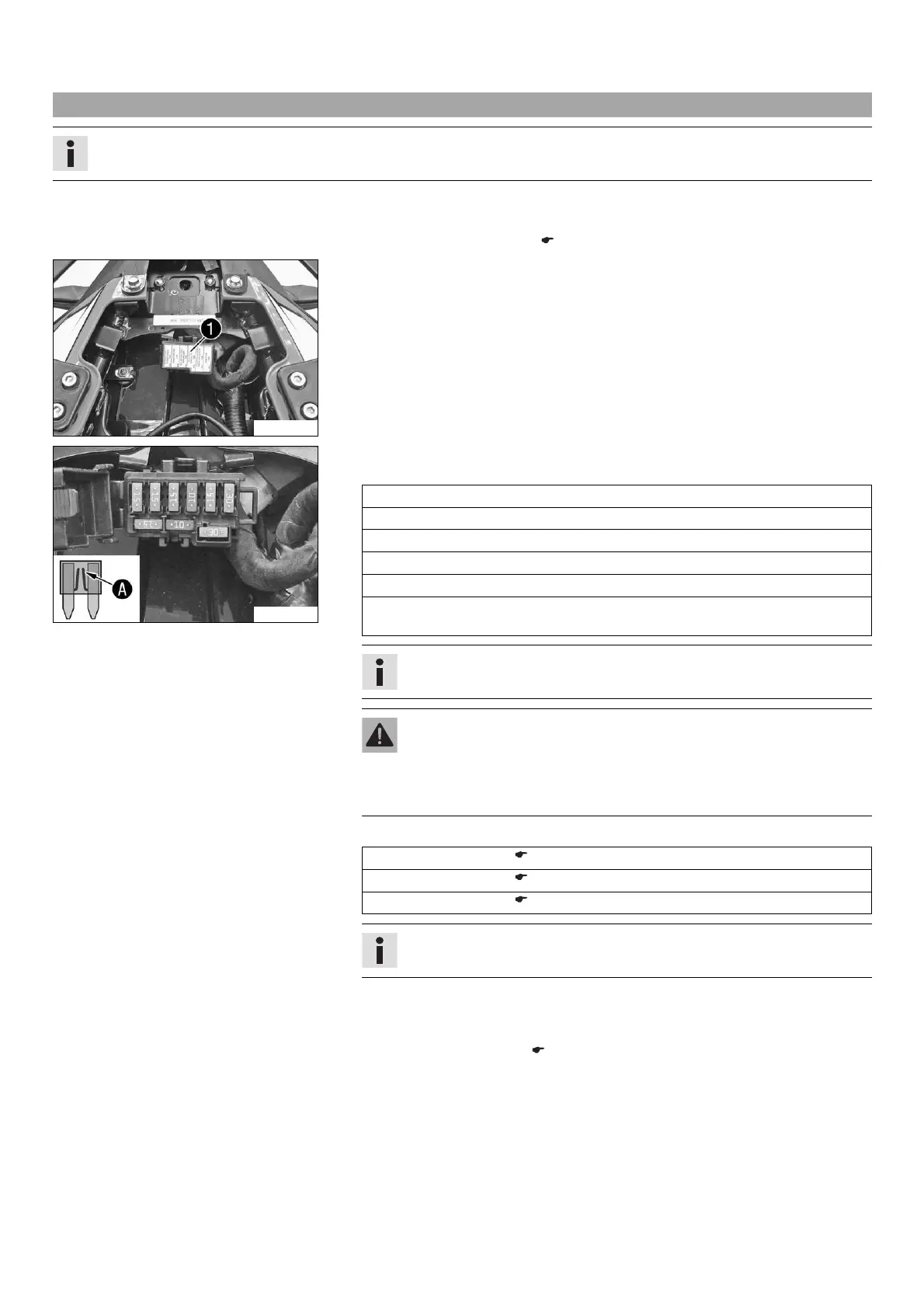

13.7 Changing the fuses of individual power consumers
Info
The fuse box with the main fuse and the fuses of the individual power consumers is located under the passenger seat.
Preparatory work
– Switch off all power consumers and switch off the engine.
– Remove the passenger seat. ( p. 39)
B00753-10
Main work
– Open fuse box cover 1.
B00754-10
– Remove the defective fuse.
Guideline
Fuse 1 - 30 A - main fuse
Fuse 2 - 15 A - combination instrument
Fuse 3 - 10 A - control unit, main relay
Fuse 4 - 15 A - ignition coil, alarm system (OPTIONAL)
Fuse 5 - 15 A - radiator fan
Fuse 6 - 15 A - horn, brake light, turn signal, high beam, low beam, parking
light, tail light, license plate lamp
Info
A defective fuse is indicated by a burned-out fuse wire A.
Warning
Fire hazard The electrical system can be overloaded if the wrong fuses are
used.
– Use only fuses with the prescribed amperage. Never by-pass or repair
fuses.
– Use spare fuses with the correct rating only.
Fuse (75011088010) ( p. 207)
Fuse (75011088015) ( p. 207)
Fuse (75011088030) ( p. 207)
Tip
Replace the spare fuse in the fuse box so that it is available if needed.
– Check that the power consumer is functioning properly.
– Close the fuse box cover.
Finishing work
– Mount the passenger seat. ( p. 39)
