16 ENGINE 160

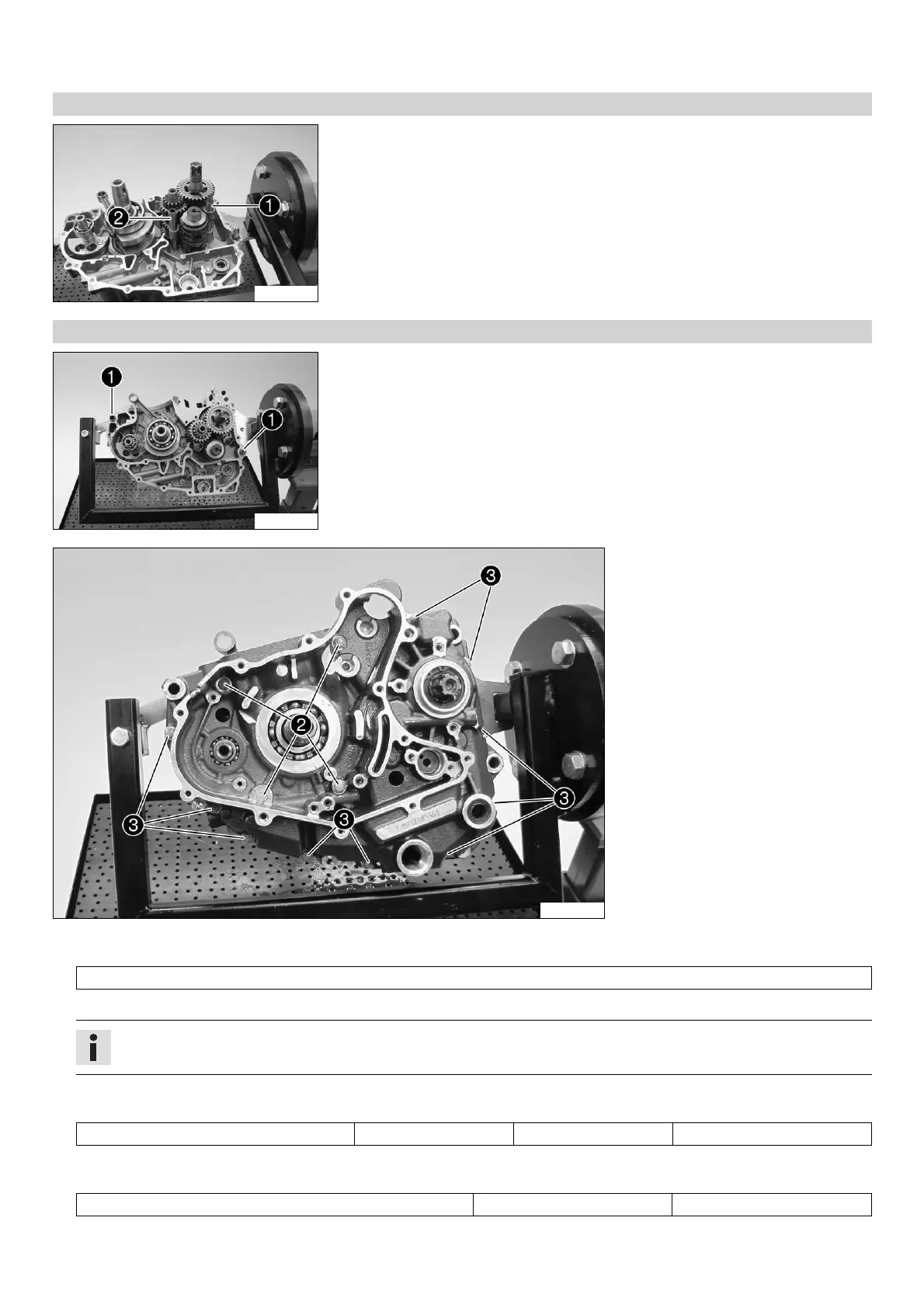

16.5.6 Installing the shift rails (125 Duke)
305904-10
– Oil all parts carefully before assembling.
– Mount shift rail 1 together with upper spring and the lower spring.
– Mount shift rail 2.
16.5.7 Installing the left engine case (125 Duke)
305903-11
– Clean the sealing areas.
– Mount dowels 1.
– Mount the engine case gasket.
304790-11
– Warm the left engine case section in an oven.
Guideline
150 °C (302 °F)
– Mount the engine case section. If necessary, tap lightly with a rubber mallet while turning the transmission shafts.
Info
Do not tighten the engine case sections using the screws.
– Mount screws 2 but do not tighten them yet.
Guideline
Screw, engine case M6x60 12 Nm (8.9 lbf ft) Loctite
®
243â„¢
– Mount screws 3 and tighten all screws in a crisscross pattern.
Guideline
Screw, engine case M6x40 12 Nm (8.9 lbf ft)
