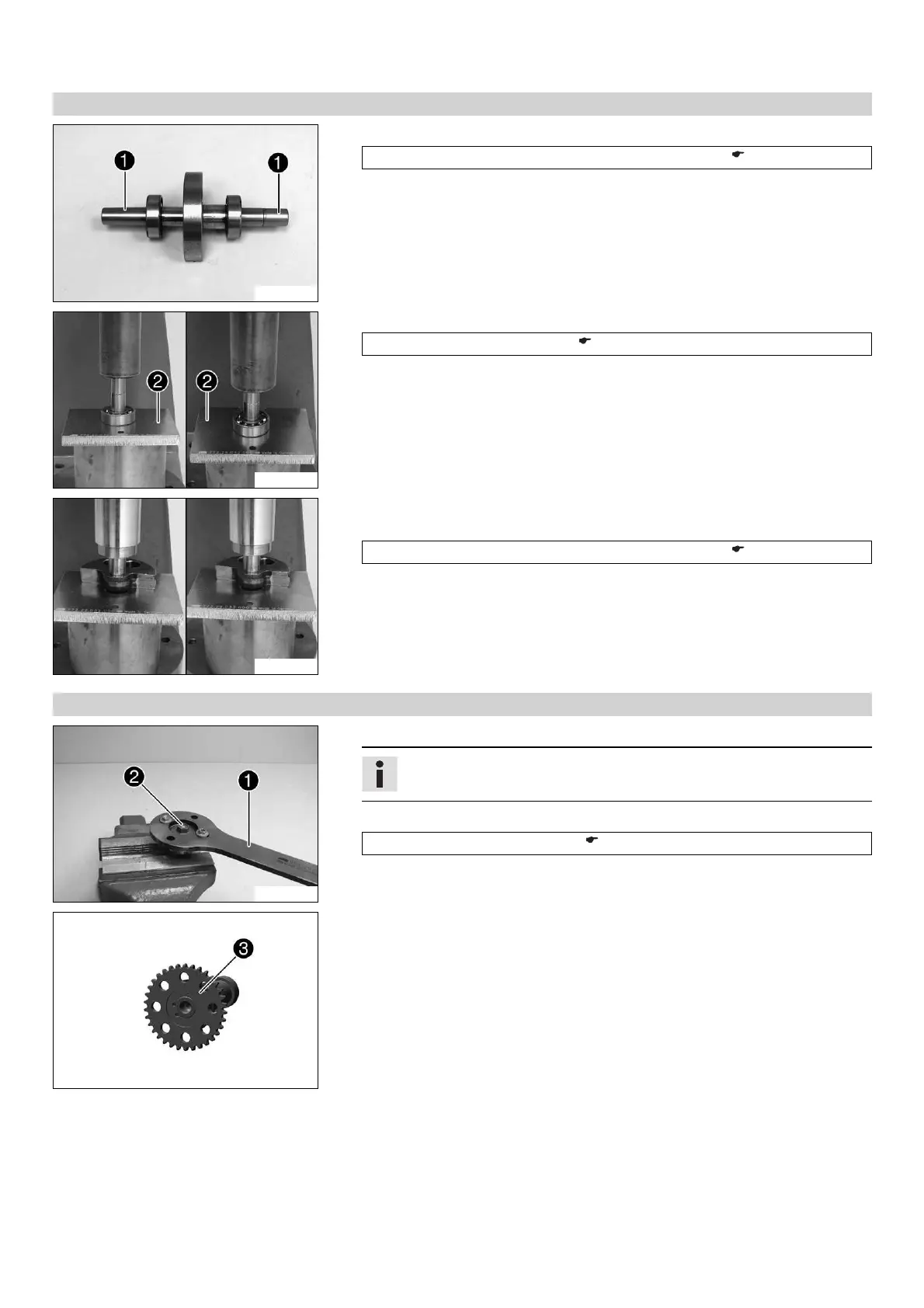

16 ENGINE 143
16.4.36 Changing the balancer shaft bearing (200 Duke)
304566-10
– Mount special tools 1.
Disassembly tool, balancer shaft bearing (90129056000) ( p. 259)
304567-10
– Position the balancer shaft with special tool 2 in the press.
Separator plate (77229032000) ( p. 255)
– Press out the bearing.
304568-10
– Press on the balancer shaft bearing with a suitable tool.
– Remove the special tools.
Disassembly tool, balancer shaft bearing (90129056000) ( p. 259)
16.4.37 Changing the camshaft bearing (200 Duke)
304564-10
– Clamp the camshaft in a vise using soft jaws.
Info
Protect the outer cam of the camshaft against damage with adhesive tape.
– Mount special tool 1.
Holding spanner (90129012000) ( p. 256)
– Remove screw 2.
304545-10
– Remove camshaft gear 3.
