16 ENGINE 112

305850-10

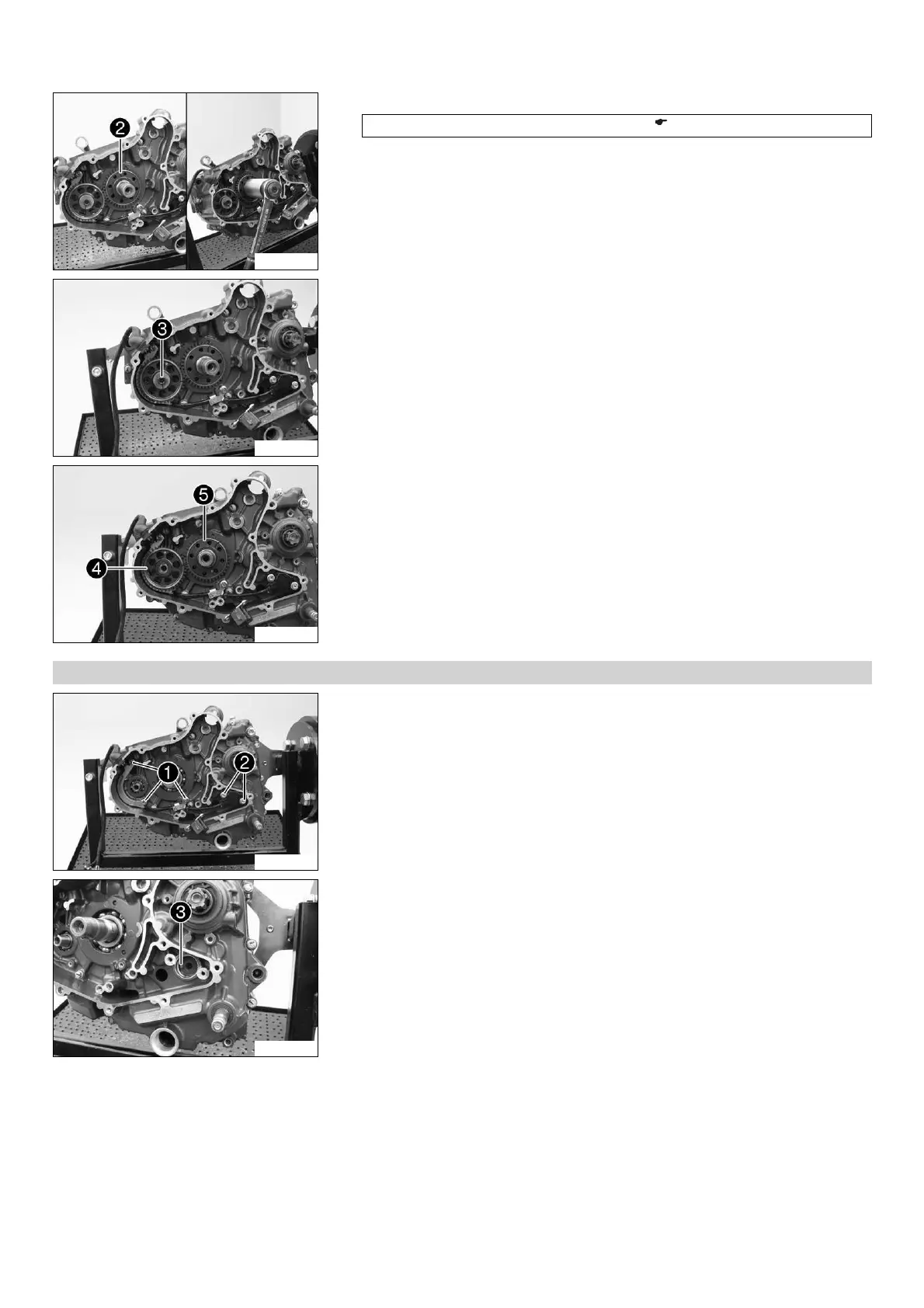

– Remove nut 2 with washer.

Castle nut wrench; ½" drive (90129022000) ( p. 257)

305851-10

– Remove screw 3 with the washer.

305852-10

– Remove balancer shaft gear 4 with a wedge.

– Take off drive wheel 5 of the balancer shaft.

– Remove the spring washer.

16.3.51 Removing the gear position sensor (200 Duke)

305855-10

– Remove screws 1.

– Take off the retaining bracket.

– Remove screws 2 and take off the gear position sensor.

305856-10

– Remove contact pin 3 and the contact spring.
