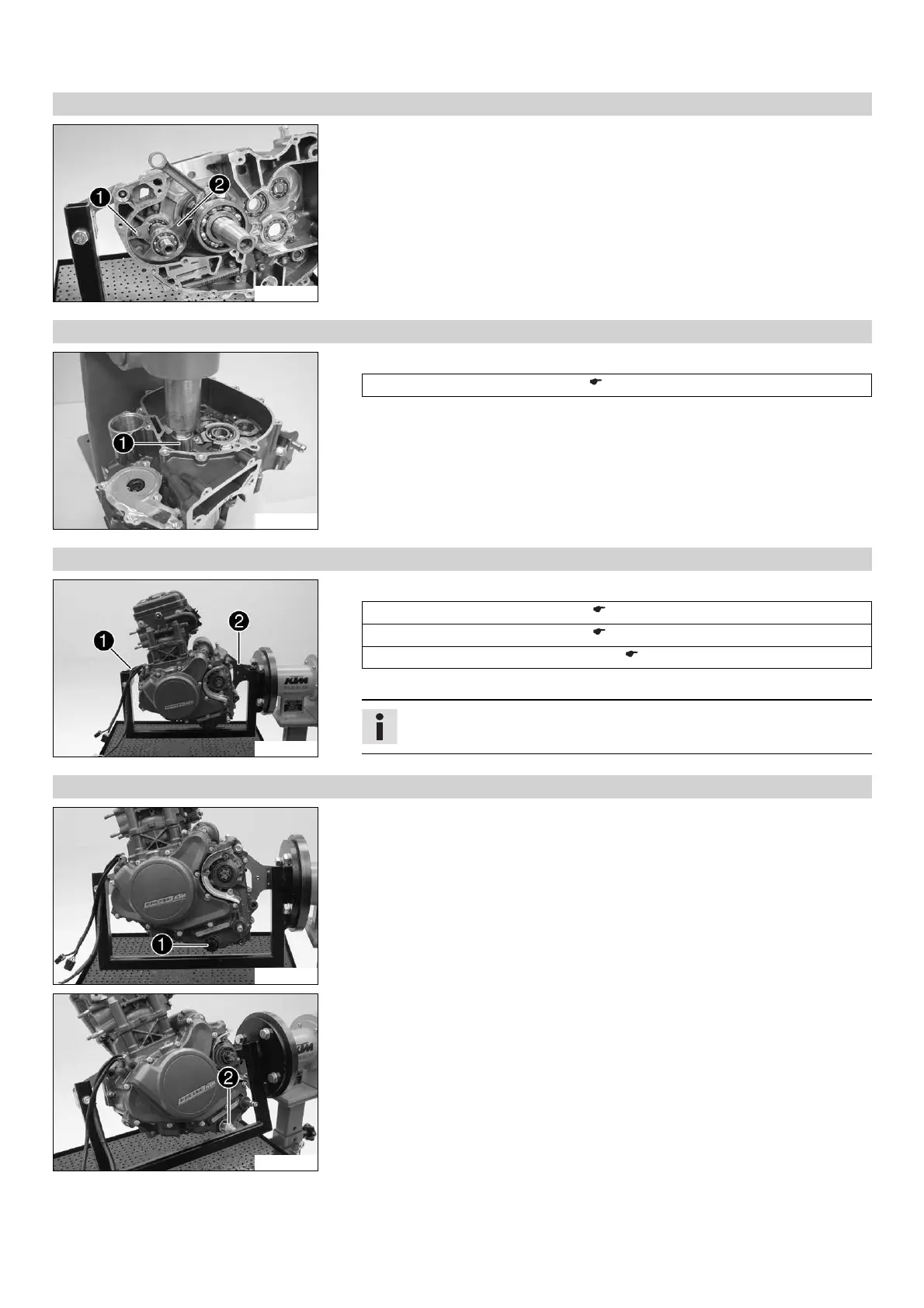

16 ENGINE 104
16.3.32 Removing the balancer shaft (125 Duke)
304799-10
– Remove screw 1.
– Take off the lock washer.
– Remove balancer shaft 2.
16.3.33 Removing the crankshaft (125 Duke)
304800-10
– Mount special tool 1.
Protecting sleeve (90129019000) ( p. 257)
– Position the section of the engine case in a press.
– Press out the crankshaft.
16.3.34 Preparations (200 Duke)
305800-10
– Mount special tools 1 and 2 on the engine assembly stand.
Engine fixing arm (90129002060) ( p. 256)
Engine fixing arm (90129002050) ( p. 255)
Engine assembly stand (61229001000) ( p. 254)
– Mount the engine on special tool.
Info
Have an assistant help you or use a crane.
16.3.35 Draining the engine oil (200 Duke)
305801-10
– Remove oil drain plug 1 with the O-ring.
305802-10
– Remove oil screen 2 with the O-ring.
– Completely drain the engine oil.
