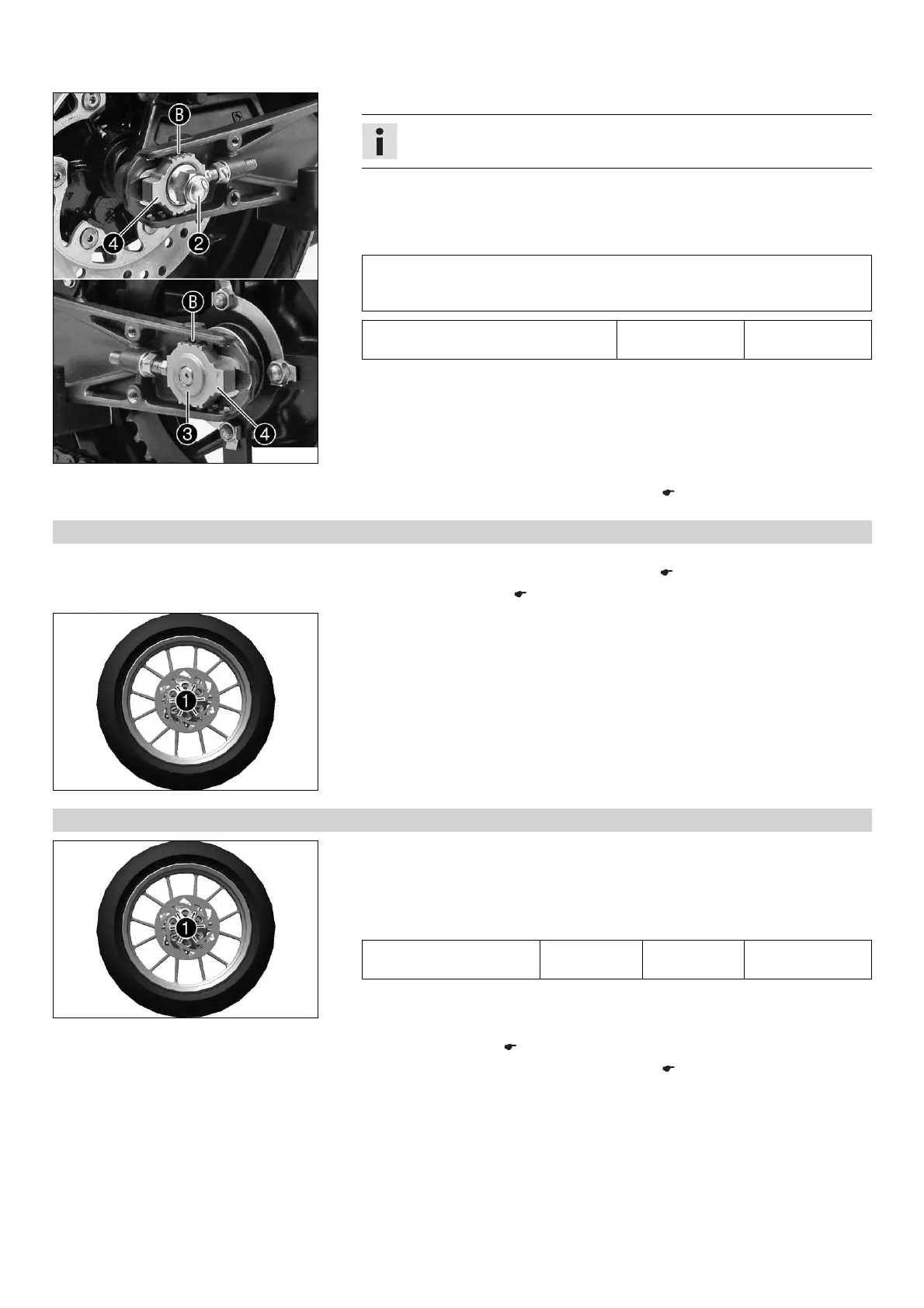

12 WHEELS 57
B00745-11
– Pull the rear wheel back and mount wheel spindle 3.
Info
Mount the left and right chain adjusters 4 in the same position.
– Mount nut 2 and washer.
– Push the rear wheel forward so that the chain adjusters are on the screws, and
tighten nut 2.
Guideline
In order for the rear wheel to be correctly aligned, the markings on the left and
right chain adjusters must be in the same position relative to the reference
marks B.
Nut, rear wheel spindle M14x1.5 60 Nm
(44.3 lbf ft)
Finishing work
– Take the motorcycle off of the rear wheel stand. ( p. 10)
12.5.3 Removing the brake disc of the rear brake
Preparatory work
– Raise the motorcycle with the rear wheel stand. ( p. 10)
– Remove the rear wheel. ( p. 56)
304805-10
Main work
– Remove screws 1.
– Remove the brake disc.
12.5.4 Installing the brake disc of the rear brake
304805-10
Main work
– Clean the contact surface of the brake disc.
– Position the brake disc with the label facing outward.
– Mount and tighten screws 1.
Guideline
Screw, rear brake disc M8 29 Nm
(21.4 lbf ft)
Loctite
®
243â„¢
Finishing work
– Install the rear wheel. ( p. 56)
– Take the motorcycle off of the rear wheel stand. ( p. 10)
