KTM 200 DUKE EU Repair Manual

16 ENGINE 107

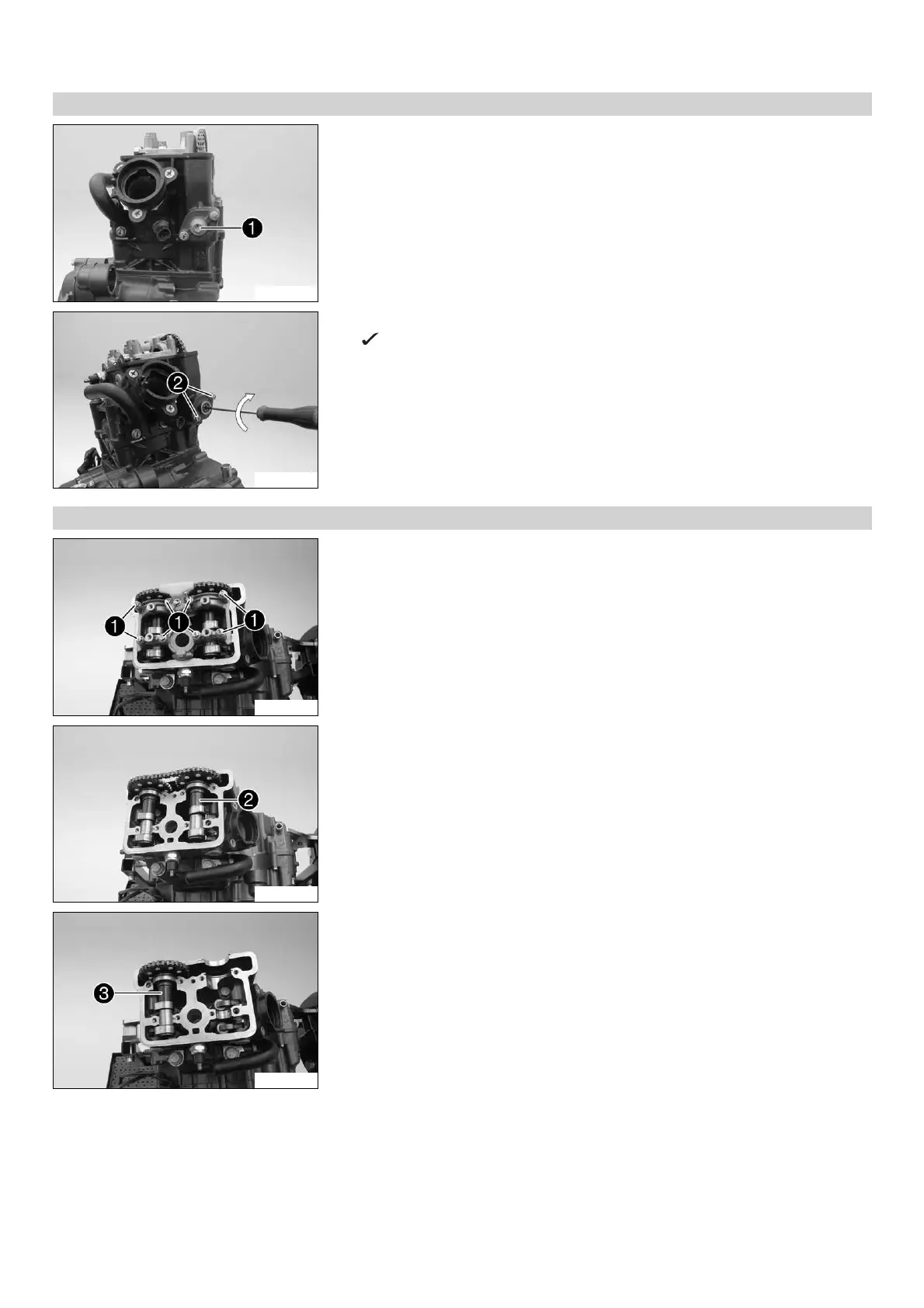

16.3.42 Removing the timing chain tensioner (200 Duke)
305813-10
– Remove screw 1 with the O-ring.
305814-10
– Turn the timing chain tensioner screw clockwise.
The timing chain tensioner is locked.
– Remove screw 2.
– Remove the timing chain tensioner with the gasket.
16.3.43 Removing the camshaft (200 Duke)
305820-10
– Release screws 1 from the outside to the inside and remove them.
– Remove the camshaft bearing bridge.
– Remove dowels.
305821-10
– Remove intake camshaft 2.
305822-10
– Remove exhaust camshaft 3.
