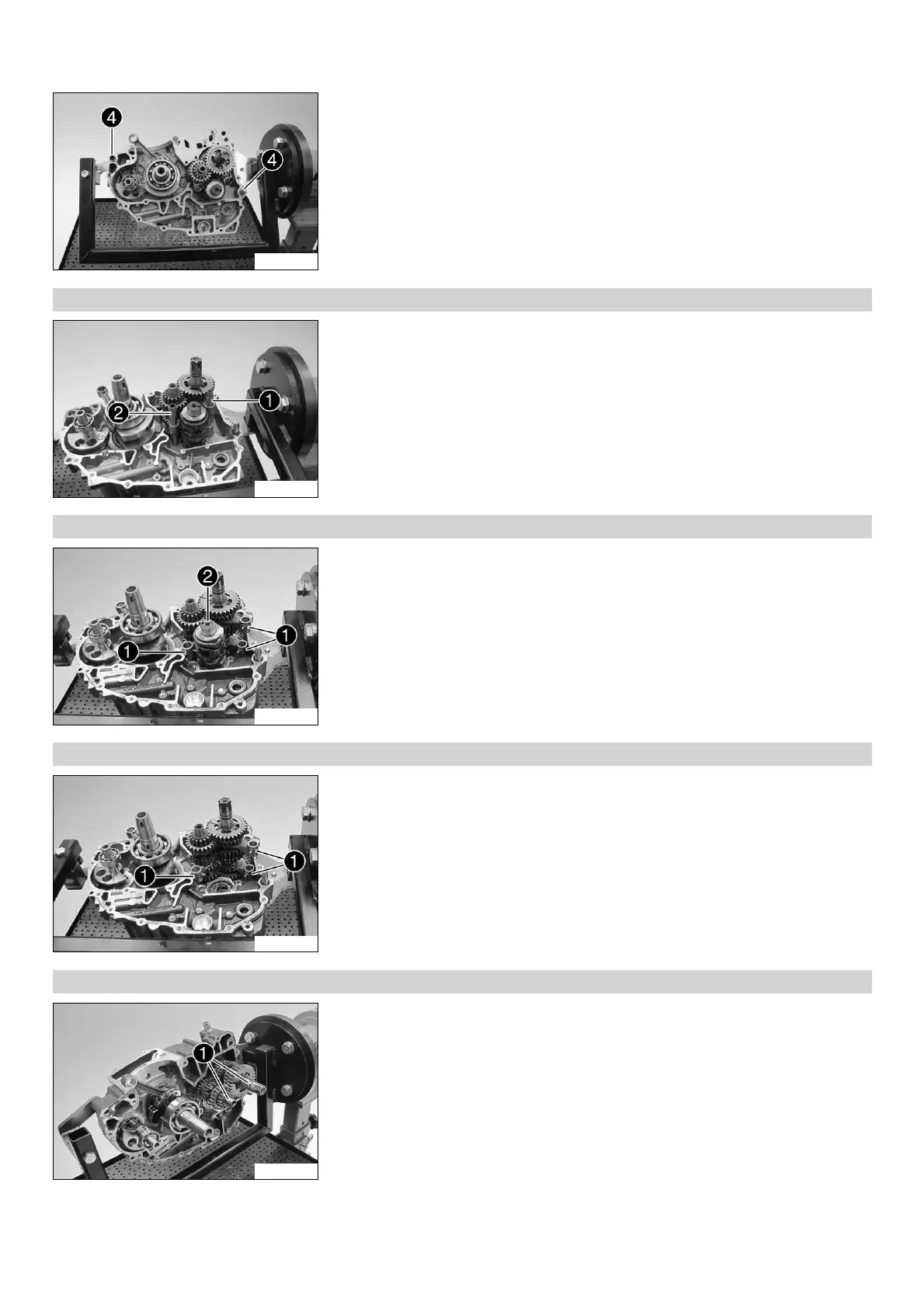

16 ENGINE 103

305903-10

– Remove dowels 4.

– Remove the engine case gasket.

16.3.28 Removing the shift rails (125 Duke)

305904-10

– Remove shift rail 1 together with upper spring and the lower spring.

– Remove shift rail 2.

16.3.29 Removing the shift drum (125 Duke)

304795-10

– Swing shift forks 1 to one side.

– Remove shift drum 2.

16.3.30 Removing the shift forks (125 Duke)

304796-10

– Remove shift forks 1.

16.3.31 Removing the transmission shafts (125 Duke)

304798-10

– Pull both transmission shafts 1 out of the bearing seats together.
