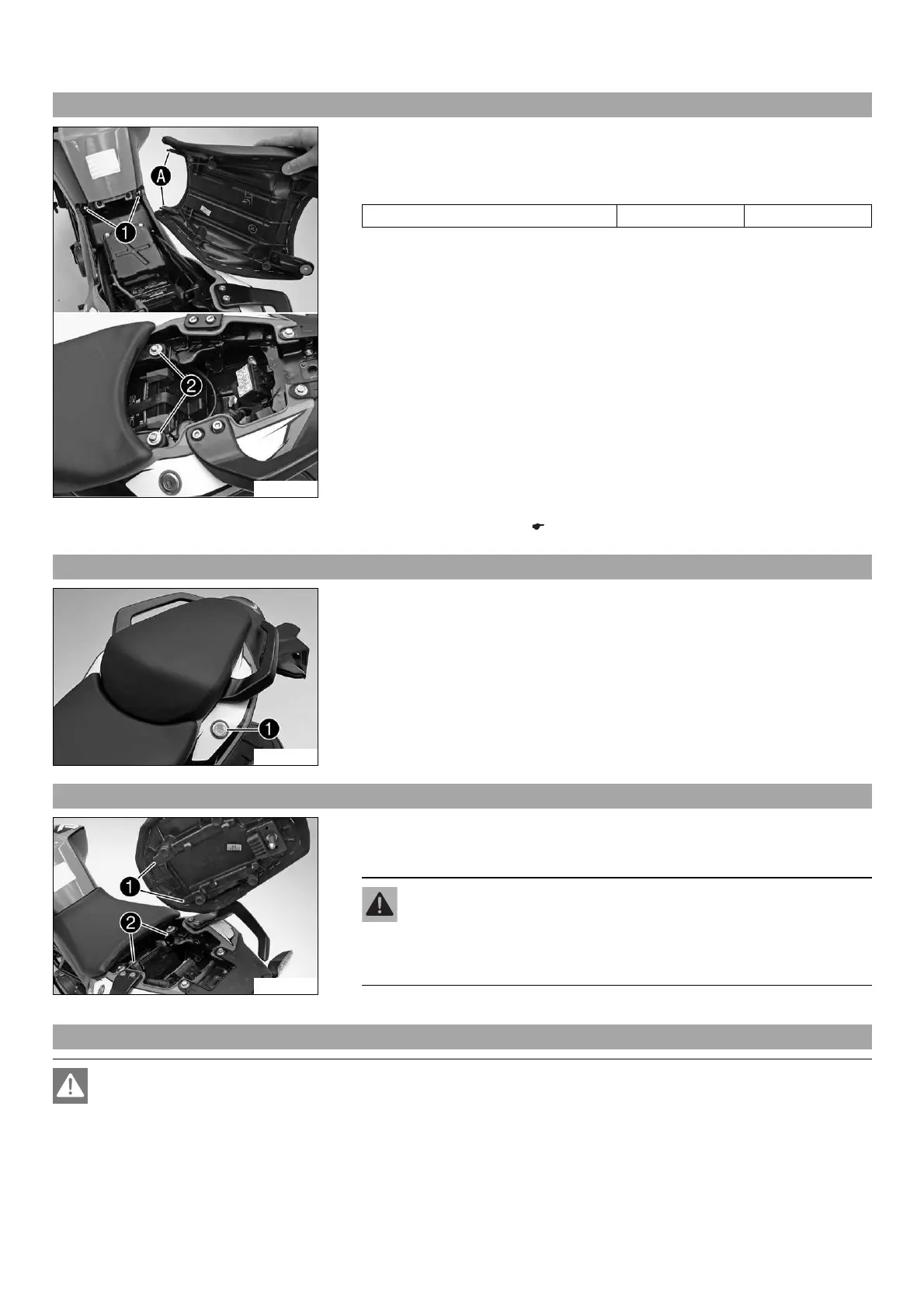

11 FUEL TANK, SEAT, TRIM 39
11.4 Mounting the seat
B00727-10
Main work
– Attach seat recesses A at screws 1 and lower at the rear.
– Mount and tighten screws 2.
Guideline
Screw, seat M6 11 Nm (8.1 lbf ft)
Finishing work
– Mount the passenger seat. ( p. 39)
11.5 Removing the passenger seat
B00712-01
– Insert the ignition key in seat lock 1 and turn it clockwise.
– Raise the rear of the seat, push it towards the rear, and remove it upwards.
– Remove the ignition key from the seat lock.
11.6 Mounting the passenger seat
B00724-10
– Attach hooks 1 on the passenger seat to brackets 2 on the subframe, and lower it
at the rear while pushing forward.
– Press down the passenger seat until it clicks into place.
Warning
Danger of accidents The passenger seat can come loose from the anchoring
if it is not mounted correctly.
– After mounting the passenger seat, check that it is locked correctly by
pulling up.
– Finally, check that the passenger seat is correctly mounted.
11.7 Removing the fuel tank cover
Danger
Fire hazard Fuel is highly flammable.
– Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no
fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
– The fuel in the fuel tank expands when warm and may emerge if overfilled. Follow the instructions on refueling.
