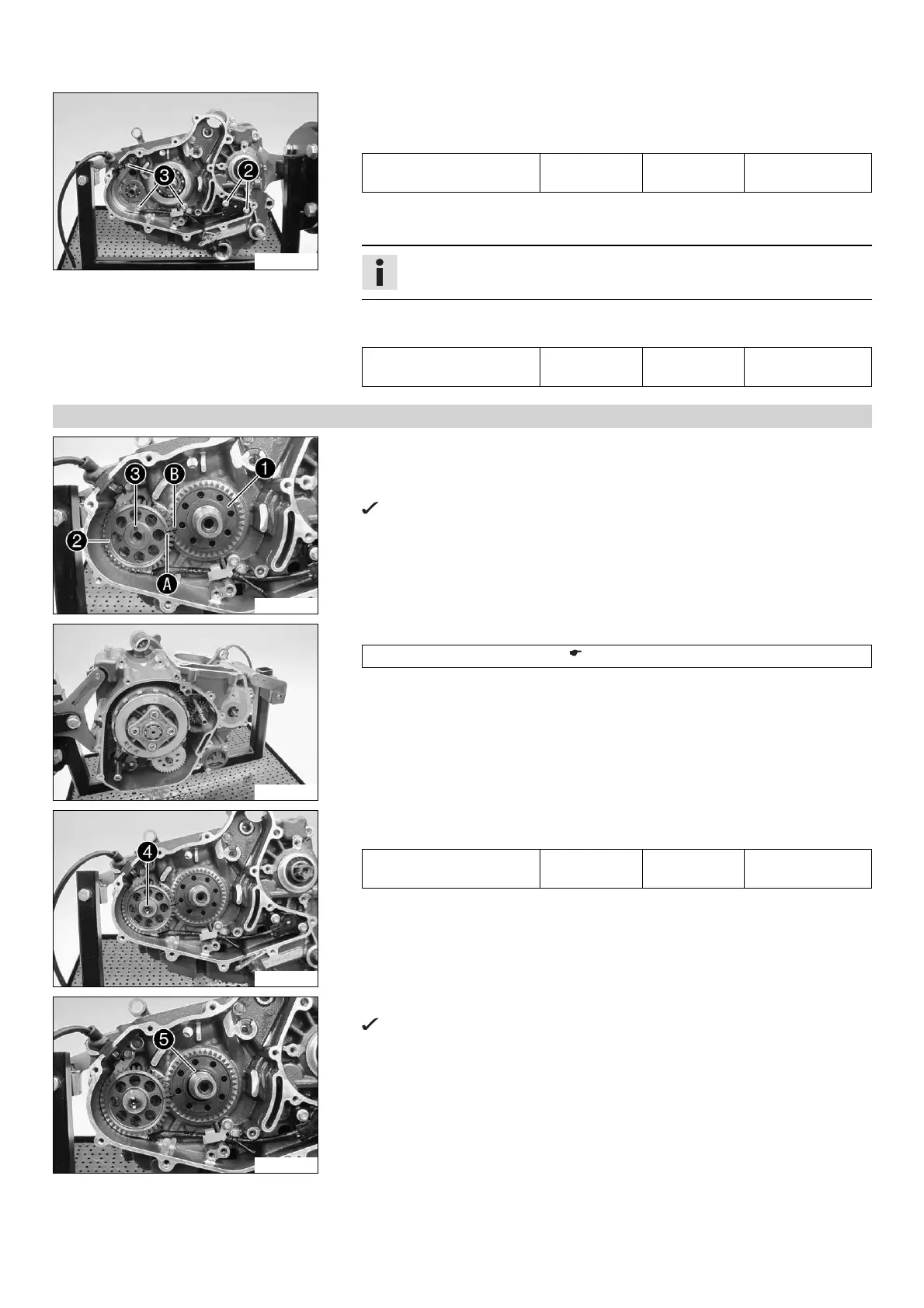

16 ENGINE 165
304771-11
– Install the gear position sensor.
– Mount and tighten screws 2.
Guideline
Screw, gear sensor M5 6 Nm
(4.4 lbf ft)
Loctite
®
243â„¢
– Position the cable guide in the engine case.
– Position the retaining bracket.
Info
Ensure that the cable is correctly routed.
– Mount and tighten screws 3.
Guideline
Screw, retaining bracket M5 6 Nm
(4.4 lbf ft)
Loctite
®
243â„¢
16.5.17 Installing the balancer shaft drive wheel (125 Duke)
304766-10
– Mount the spring washer.
– Mount drive wheel 1 of the balancer shaft.
– Position balancer shaft gear 2.
Markings A and B align.
– Mount wedge 3.
304756-11
– Lock the clutch basket and primary gear using the special tool.
Gear segment (90129081100) ( p. 259)
304764-11
– Mount and tighten screw 4.
Guideline
Screw, balancer shaft gear M8 20 Nm
(14.8 lbf ft)
Loctite
®
243â„¢
304767-10
– Mount washer 5.
The outer side of the washer is in contact with the drive wheel and the inside
faces away from the drive wheel.
