16 ENGINE 149
» If there is discoloration or scoring:
– Change all clutch lining discs.
– Check the thickness of clutch facing discs 6.
Clutch facing discs – thickness of total package ≥ 27.00 mm (≥ 1.063 in)
» If the clutch facing discs do not meet specifications:
– Change all clutch lining discs.
– Check intermediate disc 7 for damage and wear.
» If the intermediate discs are not flat or have punctiform outbreaks:
– Change all intermediate discs.

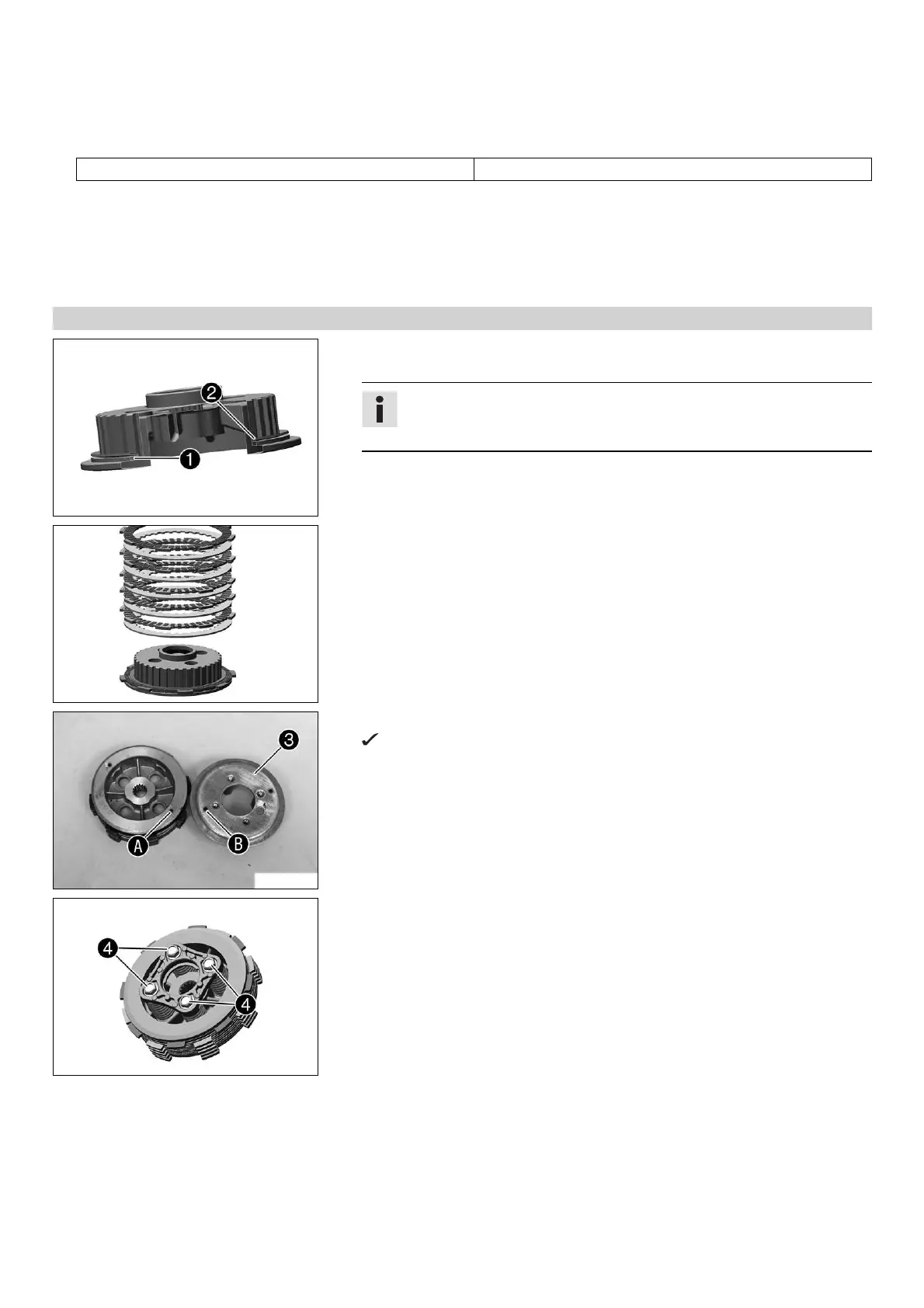

16.4.47 Preassembling the clutch (200 Duke)
304556-10
– Lubricate the clutch facing discs thoroughly.
– Push support ring 1 and pretension ring 2 onto the inner clutch hub.
Info
The pretension ring must be installed so that it is flush with the inner edge
on the support ring.
305871-10
– Position the clutch facing disc with the notch for the pretension ring on the inner
clutch hub face down.
– Beginning with a clutch disc, position all further clutch facing discs and clutch
discs alternately.
304558-10
– Mount clutch pressure cap 3.
Marking A and B are aligned.
305889-10
– Position the clutch springs.
– Position the release bearing holder and mount screws 4 but do not tighten yet.
