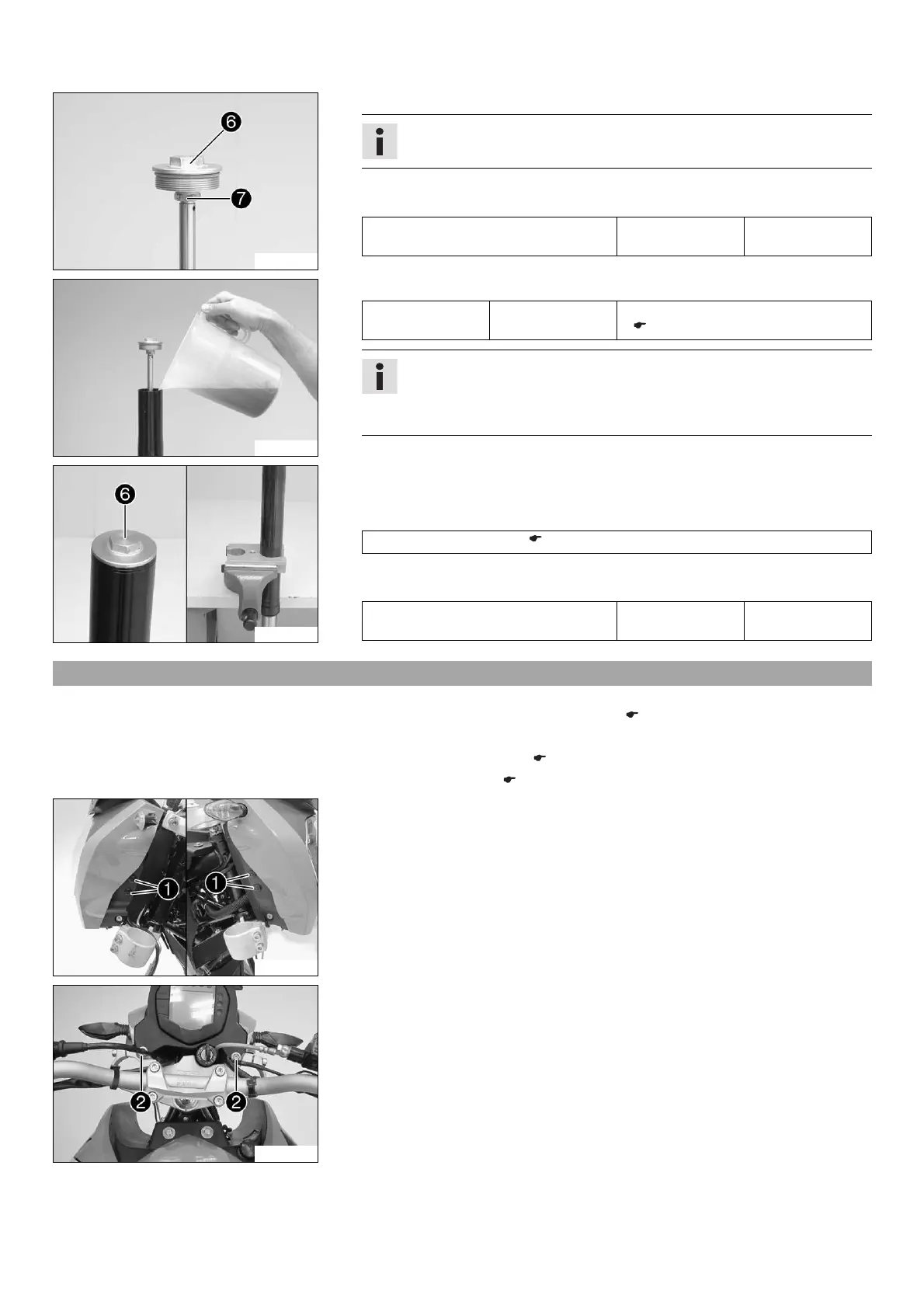

6 FORK, TRIPLE CLAMP 22
202097-10
– Mount screw cap 6 onto the piston rod.
Info
Nut 7 must be turned all the way down.
– Hold the screw cap and tighten the nut.
Guideline
Nut, piston rod on screw cap M12x1 30 Nm
(22.1 lbf ft)
201523-10
– Fill it with fork oil.
Fork oil 450 ml
(15.21 fl. oz.)
Fork oil (SAE 4) (48601166S1)
( p. 249)
Info
If it should be impossible to add the full quantity of oil, close the screw cap
of the outer tube, unclamp the fork and bounce a number of times. Then
add the remaining quantity.
201522-10
– Push the outer tube upward.
– Mount screw cap 6.
– Unclamp the fork leg in the area of the lower triple clamp.
Clamping stand (T612S) ( p. 260)
– Tighten the screw cap.
Guideline
Screw cap on outer tube M47x1.5 30 Nm
(22.1 lbf ft)
6.7 Removing the lower triple clamp
Preparatory work
– Raise the motorcycle with the work stand. ( p. 11)
– Tie the rear of the vehicle down.
– Dismount the front fender. ( p. 48)
– Remove the fork legs. ( p. 15)
304864-10
Main work
– Remove expanding rivets 1.
304865-10
– Remove screws 2.
– Lift the headlight mask slightly and swing forward.
