16 ENGINE 187
305827-11

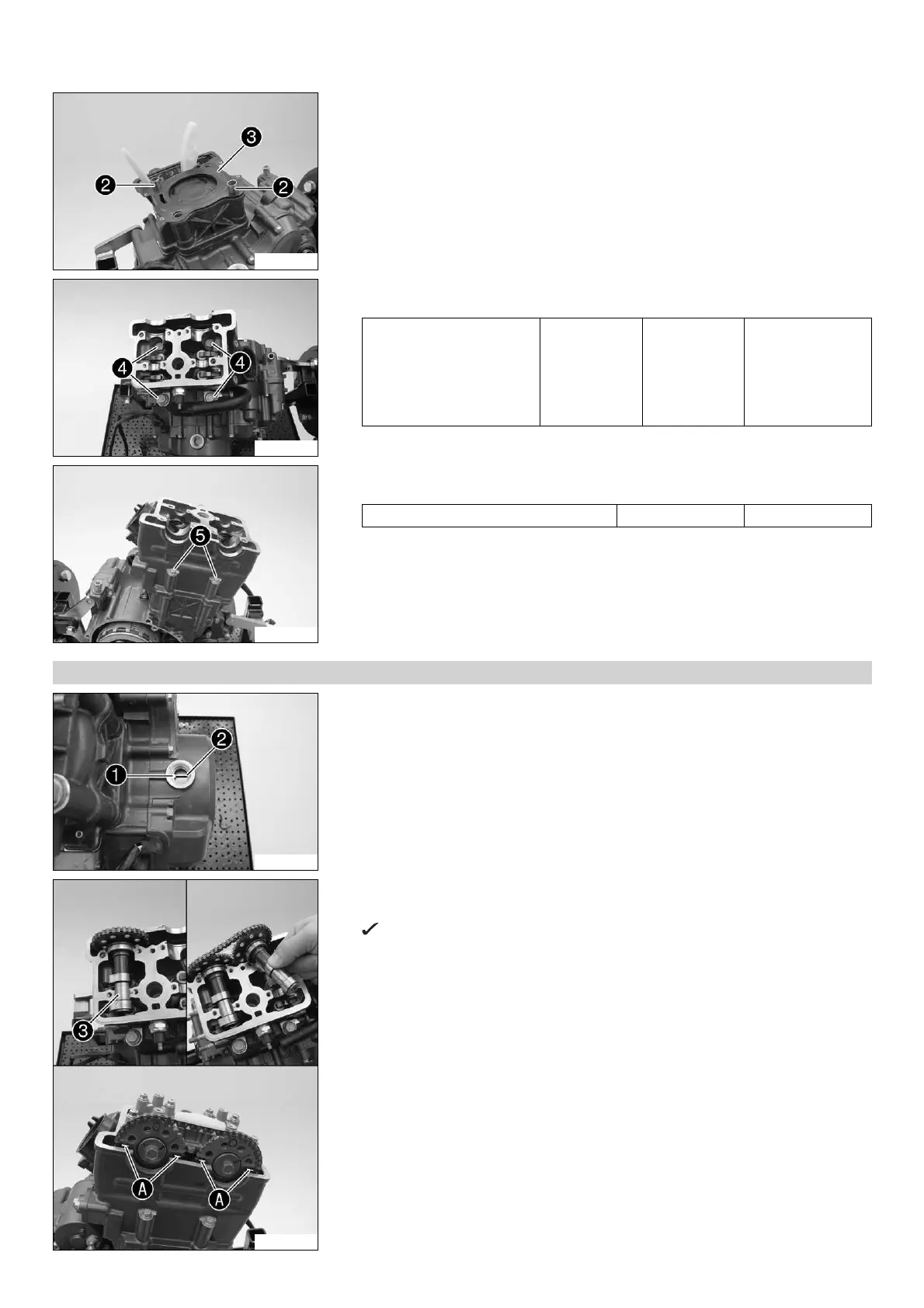

– Mount dowels 2.
– Put on cylinder head gasket 3.
– Mount the cylinder head.
305826-11
– Mount screws 4 with the washer and tighten in a crisscross pattern.
Guideline
Cylinder head screw M10 Step 1
20 Nm
(14.8 lbf ft)
Step 2
40 Nm
(29.5 lbf ft)
Thread is oiled,
head flat is
greased
305825-11
– Mount and tighten screws 5.
Guideline
Cylinder head screw M6 12 Nm (8.9 lbf ft)
16.5.58 Installing the camshafts (200 Duke)
305823-10
– Turn the crankshaft clockwise until markings 1 and 2 align.
305824-10
– Pull up the timing chain and insert exhaust camshaft 3.
– Place the timing chain over the camshaft gear of the intake camshaft.
Markings A of the camshafts align with the edge of the cylinder head.
