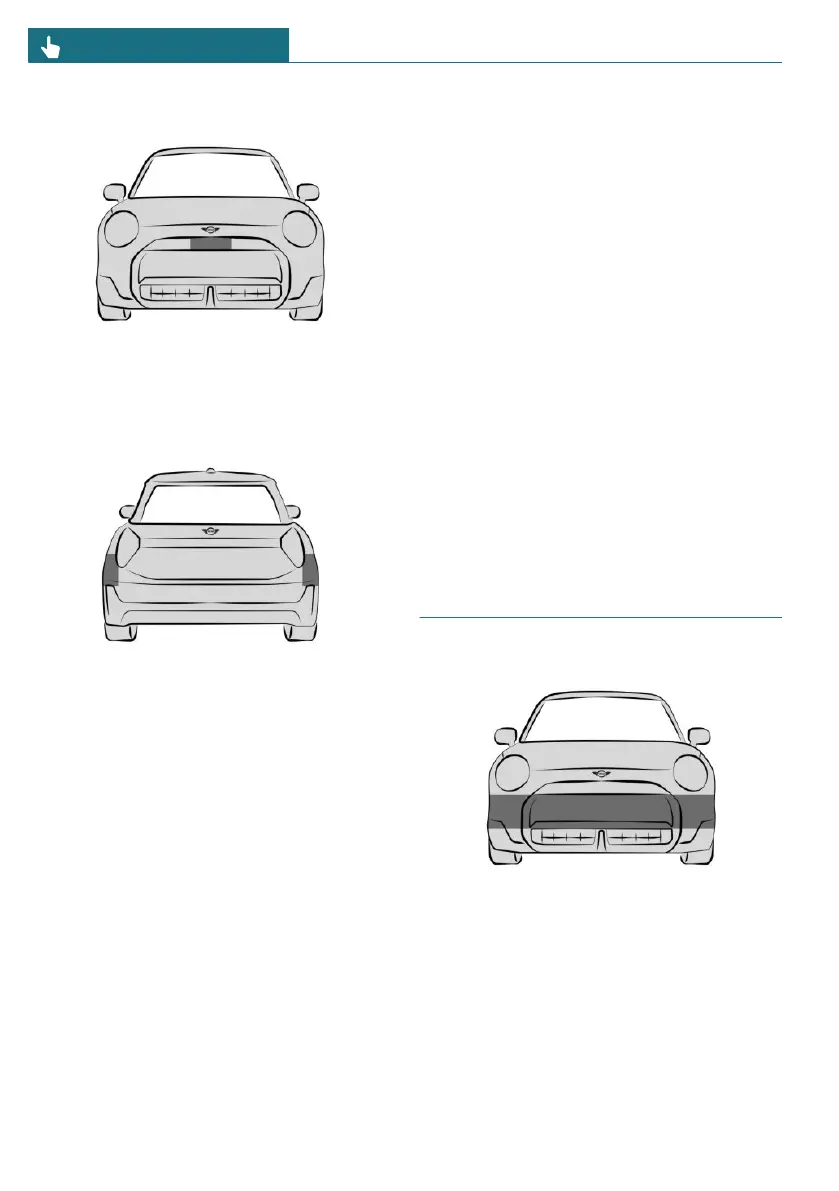

Front radar sensor
The front radar sensor is located above the
license-plate carrier.
Radar sensors, side, rear
The radar sensors are located on the side of
the rear bumper.
Functional requirement of the
radar sensors
For the radar sensors to function correctly,
the area around the radar sensors must be
kept clean and free.
Additional information:
– Washing the vehicle, refer to page 341.
– Vehicle care, refer to page 342.
System limits of the radar sensors
The function of the radar sensors may be
restricted or not available, for instance in
the following situations:
– In case of dirty sensors.
– In case of iced-up sensors.
– If sensors are covered such as by labels,
films or a license-plate carrier.
– If the sensor is not aligned correctly, for
instance due to parking damage.
– If the radiation range of the sensors is
covered, e.g., by protruding cargo.
– When the field of view of the sensors
is covered, e.g., by garage walls, hedges,
snow hills, vehicles or trailers.
– After improper paint work on the vehi-
cle in the area of the sensors.
– On steep hilltops or in sharp dips in the
road.
If applicable, a Check Control message will
be displayed when the system limits are
reached.
Ultrasonic sensors
Ultrasonic sensors, front
The ultrasonic sensors of the parking as-
sistance systems are located in the front
bumper.
