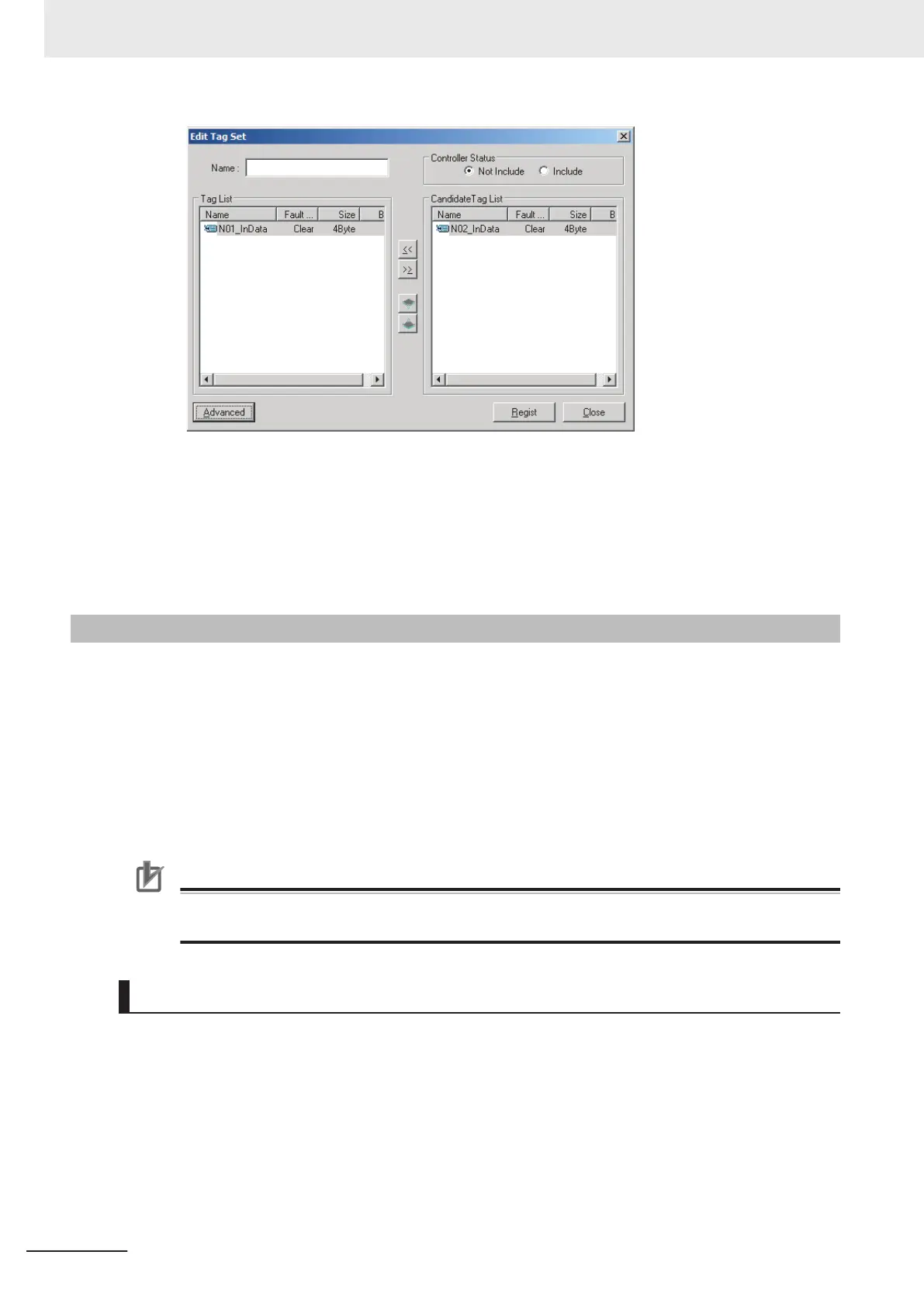

3 You can change tag set names in this dialog box. To confirm a change, click the Regist
Button
in the Edit Tag Set Dialog Box.
4 Perform steps 1 to 3 for all the devices to which tag data links are made to import variables and
to create tag sets.
7-2-5
Connection Settings
After you create the tag sets, click the Connections T
ab at the top of the Edit Device Parameters
Dialog Box, and set the following connection information.
• The target devices and tag sets with which connections are opened
• The connection type (multicast or unicast)
• The length of the packet intervals (RPI)
• Connection name (optional)
Make the connections settings on the originator only. The connections settings are not necessary on
the target device.
Precautions for Correct Use
Make the connections settings after you create tag sets for all of the devices involved in tag da-
ta links.
Connection Settings (Connections Tab Page)

Registering Devices in the Register Device List
1 Double-click the icon of the device for which to make originator settings in the Network Config-
uration Pane of the Network Configurator
. The Edit Device Parameters Dialog Box is dis-
played. Or, right-click the icon to display the pop-up menu, and select Parameter – Edit.
2 Click the Connections T
ab in the Edit Device Parameters Dialog Box.
All of the devices registered in the network (except the local node) are displayed.
7 Tag Data Link Functions
7-36
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
