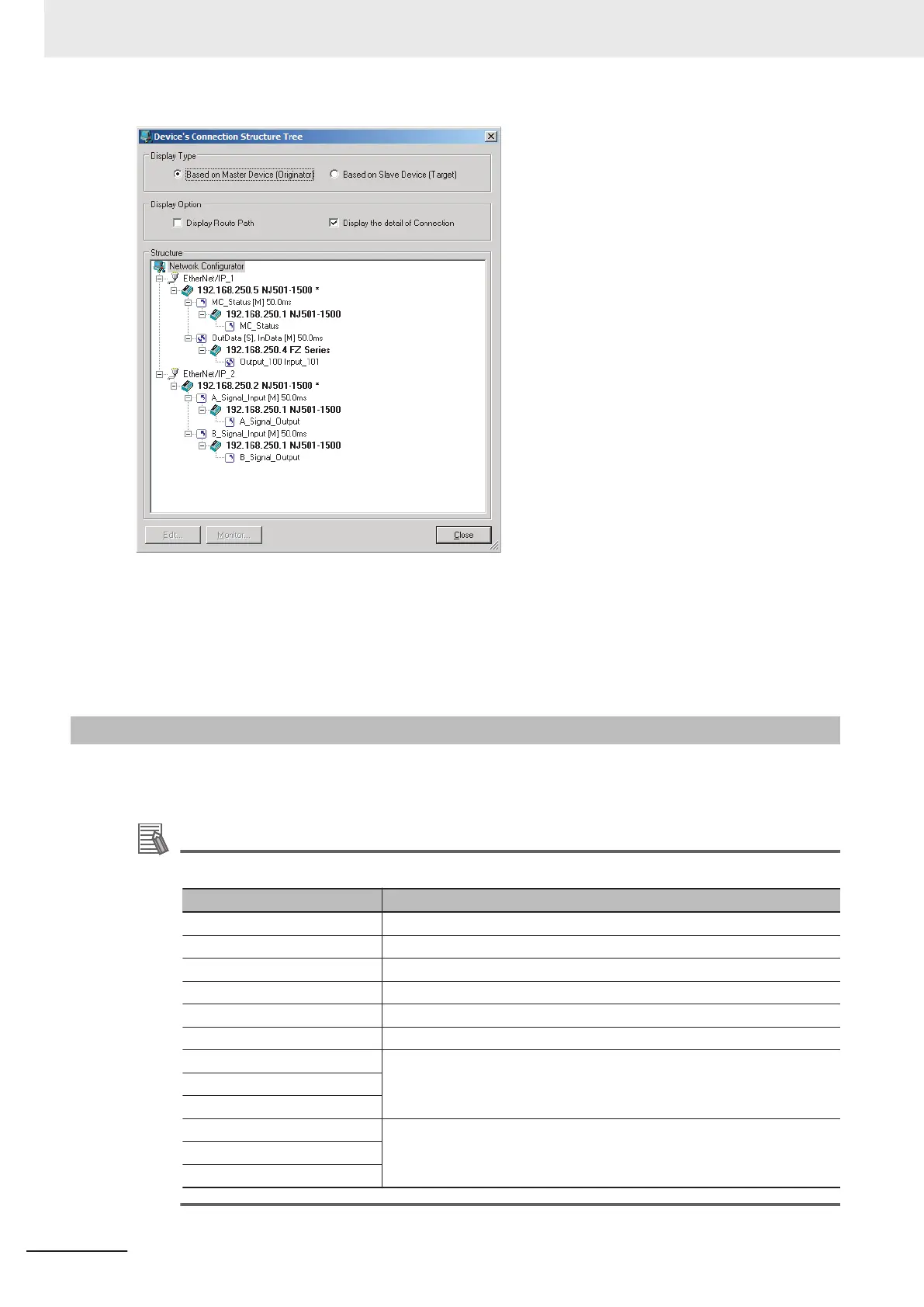

• You can check the Display the detail of Connection Check Box to switch between device-level
and connection-level views of tag data link communications.
•
An asterisk is displayed after the device name of the originator set for the connection.
• The Edit Device Parameters Dialog Box is displayed if you select a connection and click the Edit
Button. You can edit the connections in this dialog box.
7-2-6
Creating Connections Using the Wizard
You can use the Network Configurator's Wizard to easily create connections between OMRON PLCs
following the instructions provided by the Wizard.
Additional Information
The Wizard can be used only with the following OMRON EtherNet/IP devices.
Device name Remarks
CJ1W-EIP21 (NJ) CJ1W-EIP21 mounted to NJ-series Controller
CJ1W-EIP21 CJ1W-EIP21 mounted to CJ1 CPU Unit
CJ1W-EIP21 (CJ2) CJ1W-EIP21 mounted to CJ2 CPU Unit
CJ2B-EIP21 Built-in EtherNet/IP port in CJ2H CPU Unit
CJ2M-EIP21 Built-in EtherNet/IP port in CJ2M CPU Unit
CS1W-EIP21 CS1W-EIP21 mounted to CS1 CPU Unit
NX701 Built-in EtherNet/IP port on NX-series CPU Unit
NX102-££££
NX1P2
NJ501-££££
Built-in EtherNet/IP port on NJ-series CPU Unit
NJ301-££££
NJ101
7 Tag Data Link Functions
7-46
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
