11-6

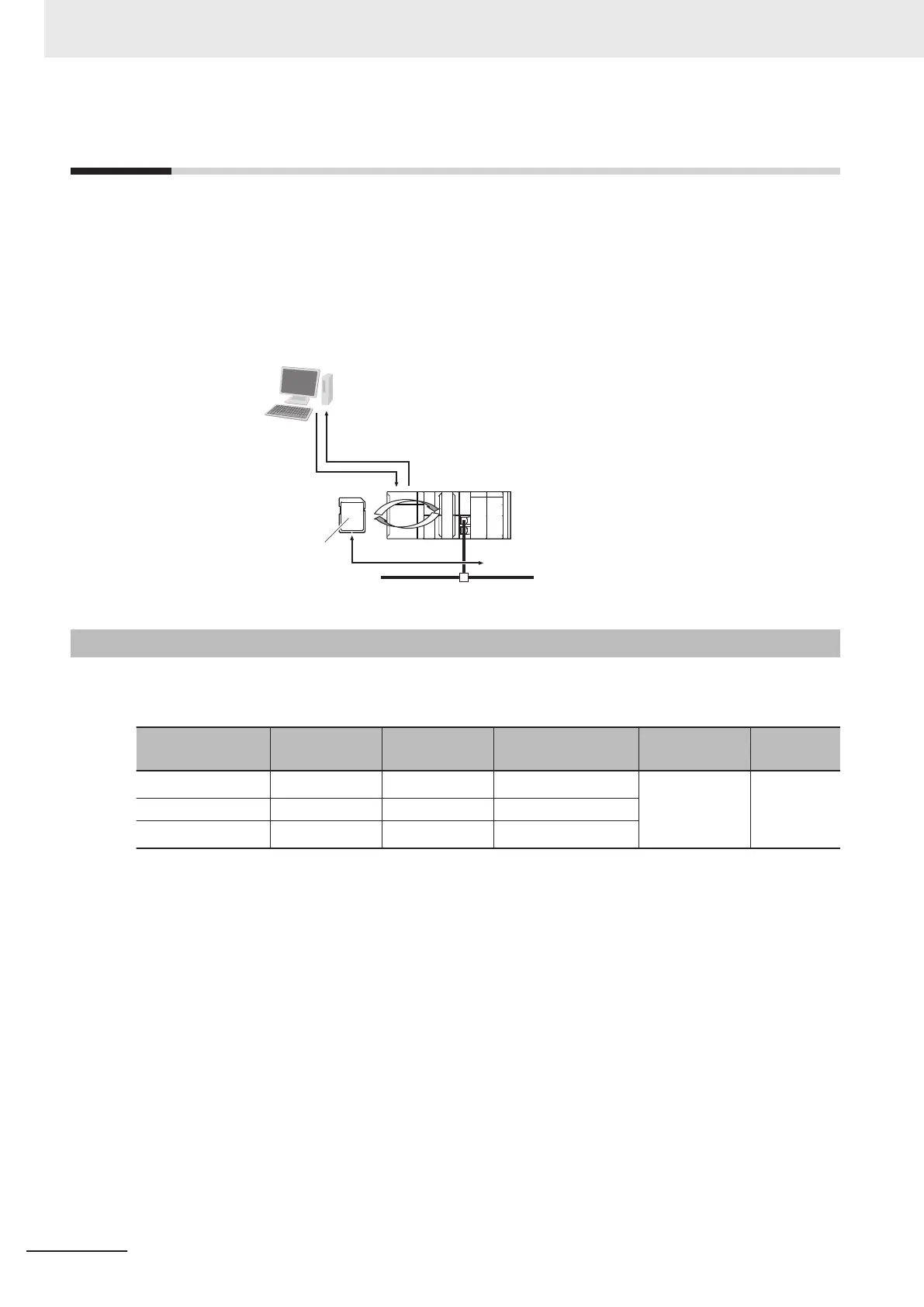

Using SD Memory Card Operations
The built-in EtherNet/IP port can be used to upload and download the following data between the SD
Memory Card and the FTP server.
• Variables files (binary format)
The following three methods are available when a CPU Unit saves data to and reads data from the SD
Memory Card.
1) Creating and reading files
from th
e Sysmac Studio
2) File operations from Windows
Uploading data to or downloading
data from the FTP server
SD Me
mory Card
Sysmac Studio
NJ/NX-series CPU Units
3) Reading and writing variable files with
SD Memory Card instructions
11-6-1
SD Memory Card Types
Use the SD or SDHC Memory Card specified in the table below.
Operation may not be dependable if another SD or SDHC Memory Card is used.
Model number Card type Capacity [GB] Format
Number of
overwrites
Weight
HMC-SD291
*1
SD 2 FAT16 100,000 writes 2 g max.
HMC-SD491 SDHC 4 FAT32
HMC-SD1A1
*2
SDHC 16 FAT32
*1.
You cannot use an HMC-SD291 for the NJ 501-££££ CPU Unit with the hardware revision
"A" and unit
version 1.15 or later.
*2. This can be used on the following CPU Units.
• The NX102-££££ CPU Units with unit version 1.32 or later
• The NX701-££££, NX1P2-££££££, NJ501-££££, NJ301-££££, and NJ101-££££ CPU
Units with unit version 1.21 or later
11 FTP Server
11-18
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
