Checking Status with the Network
Configurator
16-2-1
The Network Configurator's Device Monitor Function

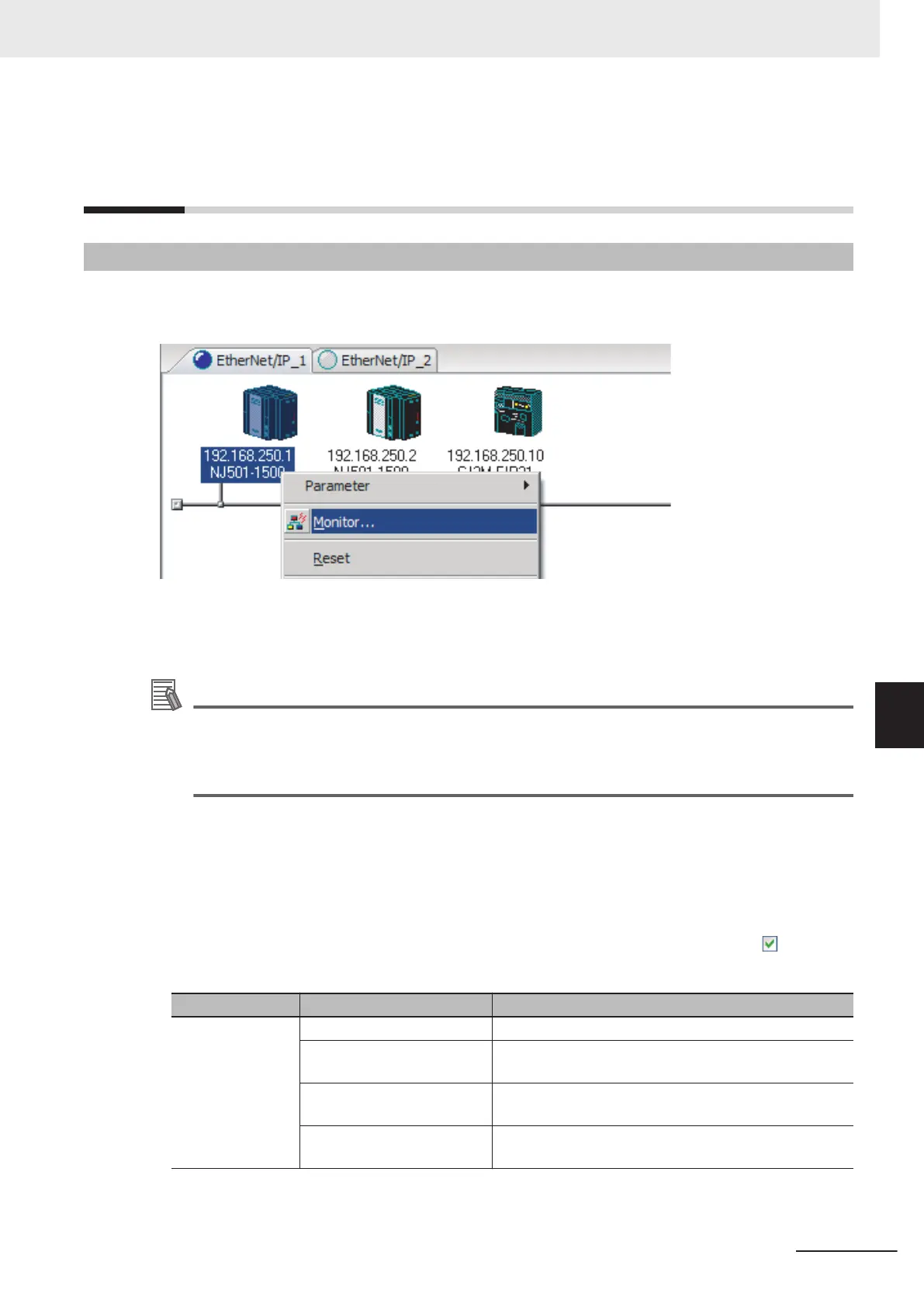

Connect the Network Configurator online, select the device to be checked, right-click to display the
pop-up menu, and select Monitor.
The Monitor Device Dialog Box will be displayed.
Additional Information
If a communications error occurs during monitoring, the dialog box will continue to show the last
information that was collected.
T
o start monitoring again, close the Monitor Device Dialog Box, and then open the Monitor
Device Dialog Box again.
You cannot monitor the CIP Safety communications status with Network Configurator. Refer to the NX-
series Safety Control Unit User
’s Manual (Cat. No. Z930) for details on confirming CIP Safety commu-
nications status.

Status 1 Tab Page
The following check boxes are displayed for the status. If a check box is checked with
, the sta-
tus is TRUE.
Classification Item Corresponding system-defined variable
Ethernet Status Com. Controller Error An error occurred in the communications controller.
IP Address Duplicated The same IP address is assigned to more than one
node.
On-Line Indicates that the Unit is online. (The EtherNet/IP Unit
can perform communications processing.)
Multiple Switch ON Indicates that more than one data link start/stop switch
changed to TRUE at the same time.
16 Troubleshooting
16-3
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
16-2 Checking Status with the Network Configurator
16
16-2-1 The Network Configurator's Device Monitor Function
