Additional Information

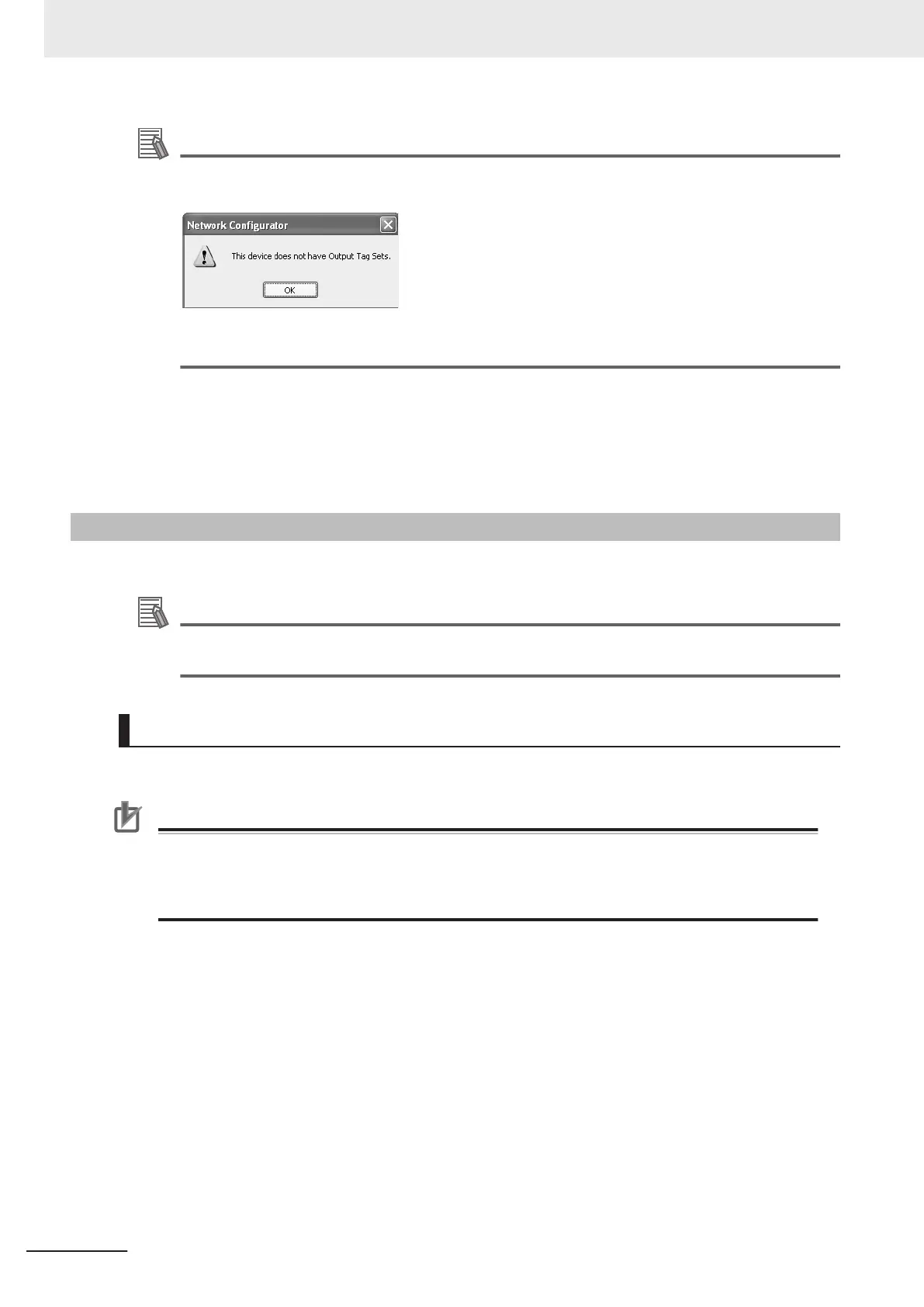

The following dialog box will be displayed if a target device that does not have I/O data is drop-
ped.
Before dropping again, refer to the manual of the applicable device and create the I/O data (i.e.,
output tag sets) required to create a connection.
3 After you complete the settings, click the Regist Button to create the connection. When the
connection is completed, the input tag set box and the output tag set box will be blank. Y
ou can
continue to create another connection by selecting a next connection I/O type and setting a tag
set.
7-2-8
Connecting the Network Configurator to the Network
This section describes how to connect the Network Configurator to the network.
Additional Information
Although NX102 and NX701 CPU Units provide two EtherNet/IP ports, the Network Configura-
tor treats these two ports as two dif
ferent units and connects them individually.
Connecting through Ethernet
Connect to the built-in EtherNet/IP port on the CPU Unit via an Ethernet switch.
Precautions for Correct Use
The first time you connect via Ethernet with Windows XP (SP2 or higher), Windows Vista, or
Windows 7, you must change the Windows firewall settings.
For the procedure, refer to A-4 Precautions for Using the Network Configurator on W
indows XP,
Windows Vista, or Windows 7 or Higher on page A-43.
1 Select Option - Select Interface
- Ethernet I/F.
2 Select Network - Connect.
If there are multiple Ethernet interfaces on the computer, the Select Interface Dialog Box is
displayed. Select the interface to connect, and press the OK Button.
The following dialog box is displayed.
7 Tag Data Link Functions
7-52
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
