3-17
3 Specifications
G5-series AC Servomotors and Servo Drives User’s Manual (with Built-in EtherCAT Communications)
3-1 Servo Drive Specifications
3
3-1-5 EtherCAT Communications Connector Specifications (RJ45)
The EtherCAT twisted-pair cable is connected to a shielded connector.
• Electrical characteristics: Confirm to IEEE 802.3.
• Connector structure: RJ45 8-pin modular connector (conforms to ISO 8877)

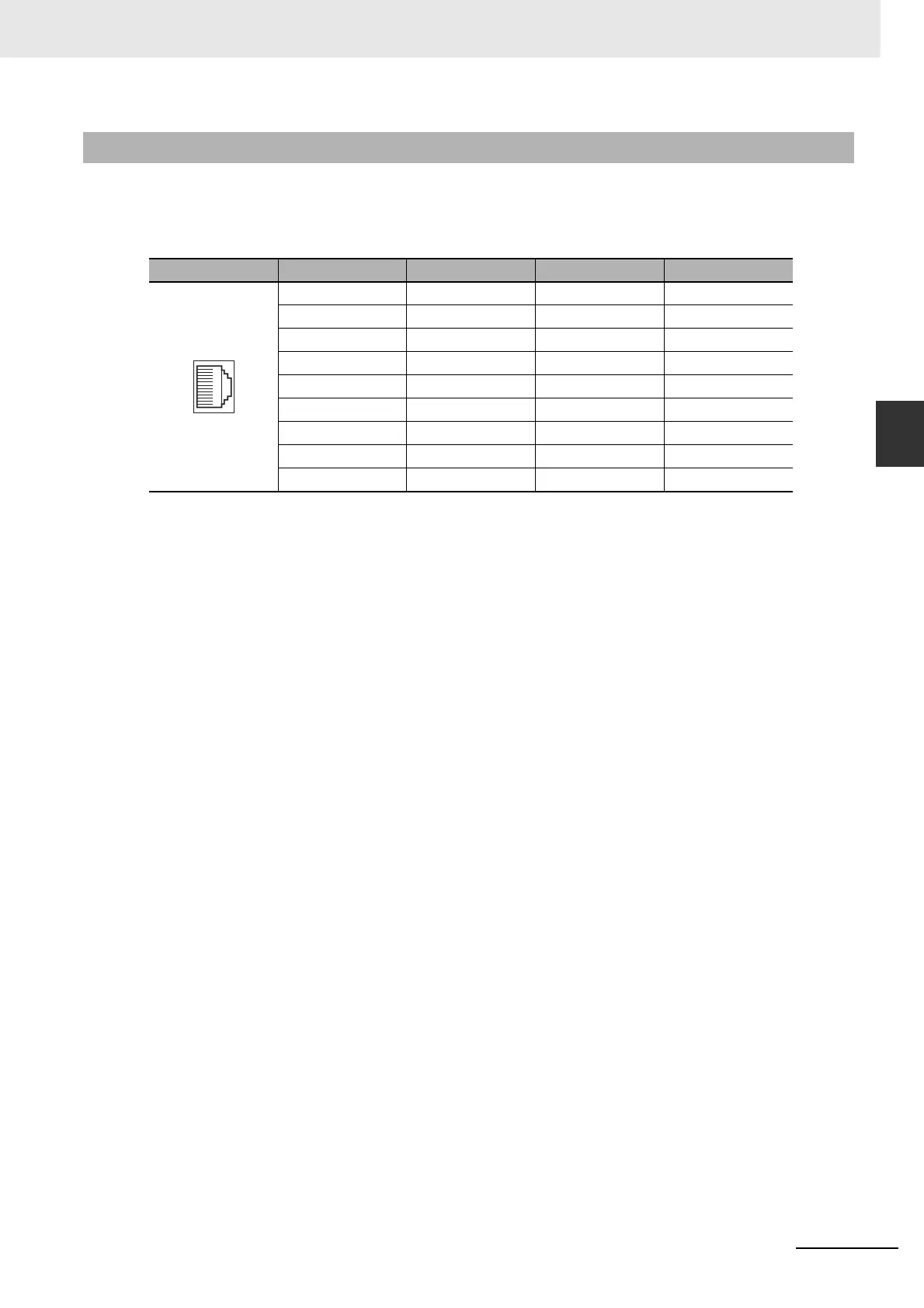

3-1-5 EtherCAT Communications Connector Specifications (RJ45)
Pin No. Signal name Abbreviation Direction
1 Send data + TD+ Output
2 Send data − TD− Output
3 Receive data + RD+ Input
4 Not used −−
5 Not used −−
6 Receive data − RD− Input
7 Not used −−
8 Not used −−
Connector hood Protective ground FG −
