To improve machine rigidity:
• Install the machine on a secure base so that it does not have any play.
• Use couplings that have a high rigidity, and that are designed for servo systems.
• Use a wide timing belt, and use a tension within the range of allowable axial load for the motor.
• Use gears with small backlash.
The specific vibration (resonance frequencies) of the mechanical system has a large impact on the
gain adjustment of the servo. The servo system responsiveness cannot be set high for machines with
a low resonance frequency (low machine rigidity).

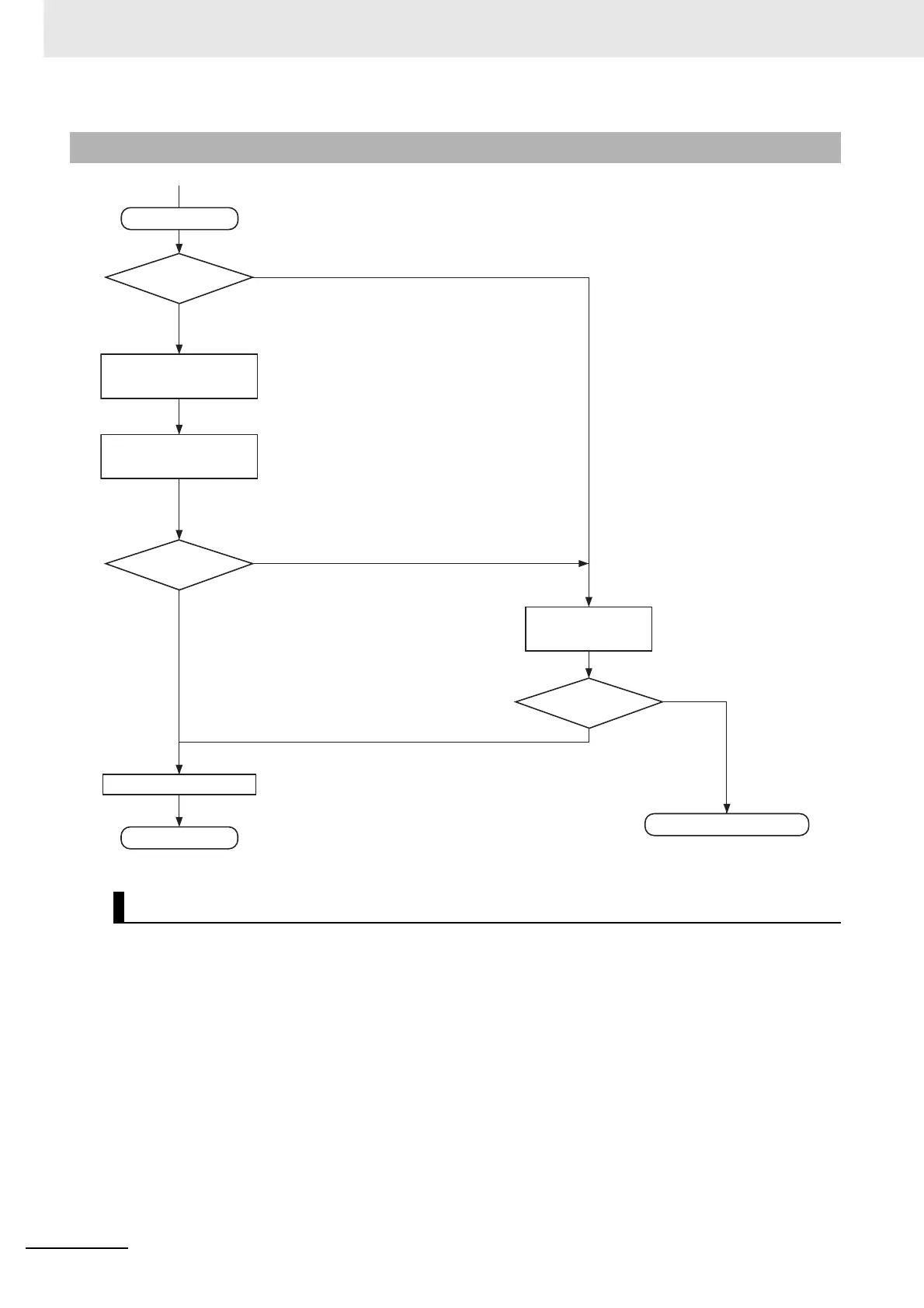

11-2-3 Gain Adjustment Procedure
Gain Adjustment and Machine Rigidity
Start adjustment.
Automatic
adjustment?
Operation OK?
Yes
Yes
No
Operation OK?
Yes
No
No
Realtime autotuning
Realtime
autotuning settings
Manual tuning
Adjustment completed.
Write to EEPROM.
Consult OMRON.
(Default setting)
