11-6 Adaptive Filter

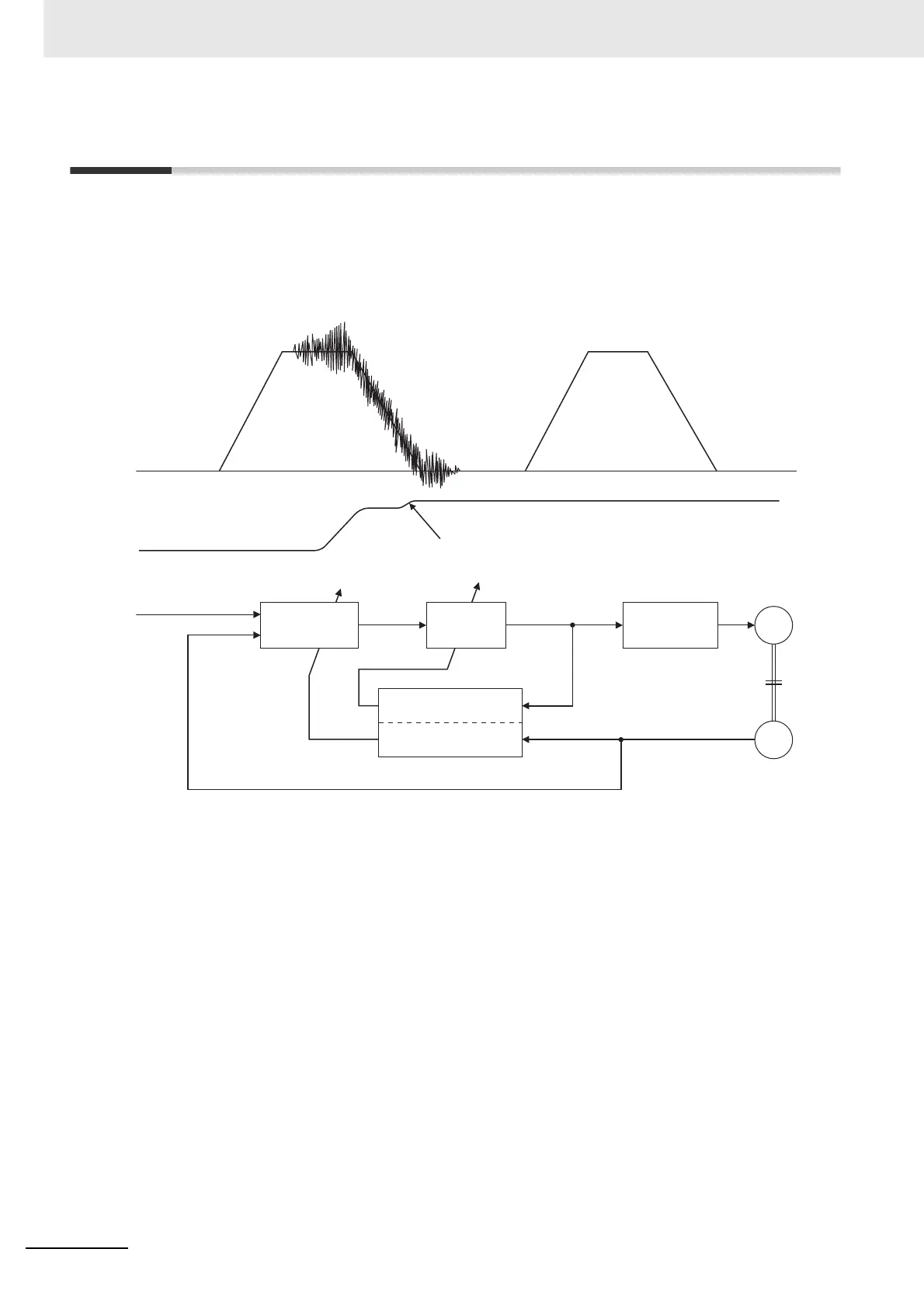

The adaptive filter reduces resonance point vibration by estimating the resonance frequency from the
vibration component that appears in the motor speed during actual operation and automatically sets the
frequency of the notch filter, which removes the resonance component from the torque command.
The automatically set notch filter frequency is set in Notch 3 (3207 to 3209 hex) or Notch 4 (3210 to
3212 hex). Refer to 11-7 Notch Filters on page 11-23 for information on notch filter.
Motor speed
After vibration
suppression
Adaptive filter disabled
Adaptive filter effect
Filter frequency setting completed
Position and
speed command
Speed feedback
Position/
speed control
Realtime autotuning
Resonance frequency
estimation
Load inertia estimation
Adaptive
filter
Current loop
control
Torque command
SM
RE
