Omron R88M-K User Manual

3-97
3 Specifications
G5-series AC Servomotors and Servo Drives User’s Manual (with Built-in EtherCAT Communications)
3-5 Cable and Connector Specifications
3
3-5-7 Analog Monitor Cable Specifications

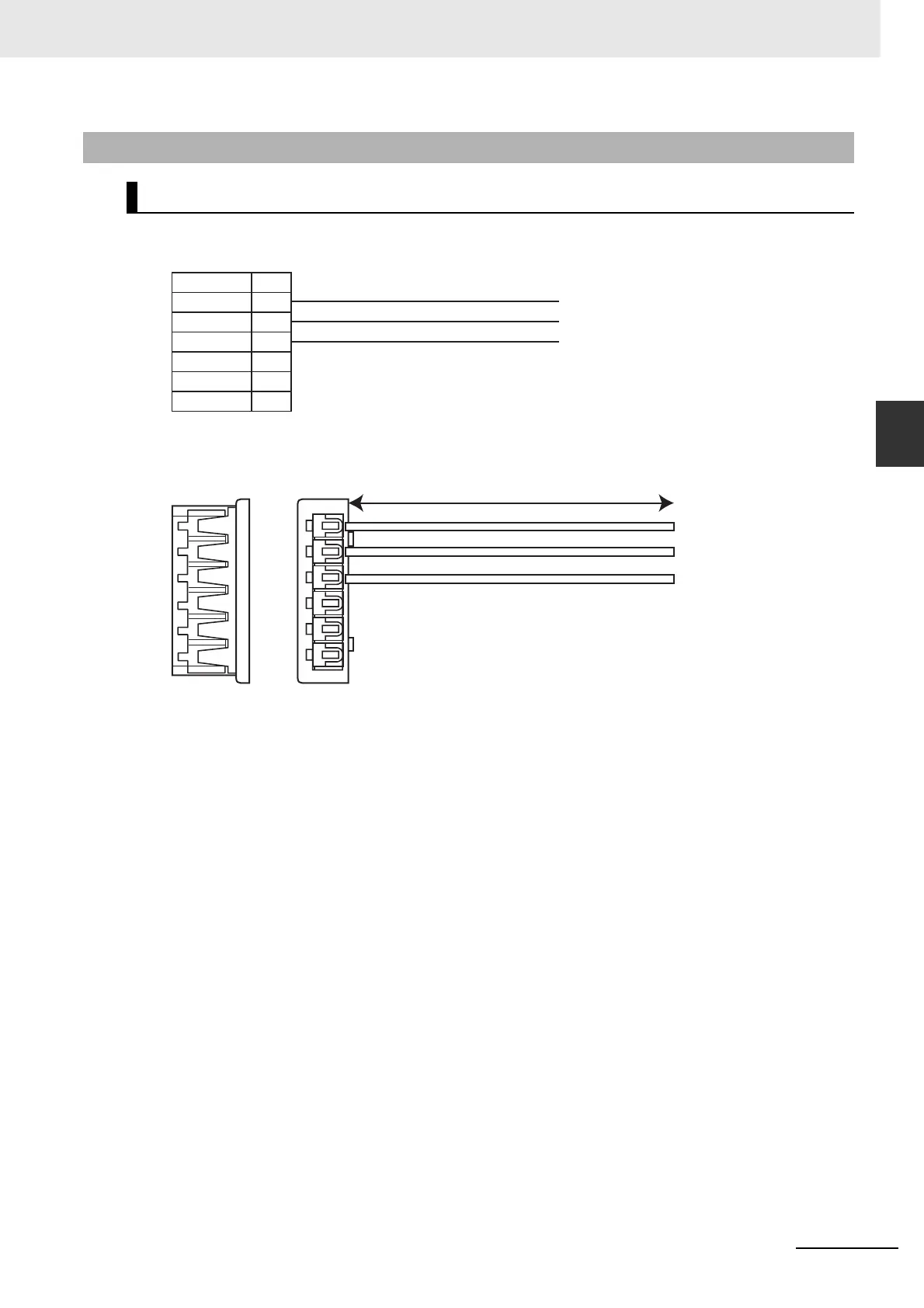

z Connection Configuration and External Dimensions
3-5-7 Analog Monitor Cable Specifications
Analog Monitor Cable (R88A-CMK001S)
1m
No.
1
2
3
4
5
6
AM1
AM2
GND
Symbol
White
Red
Black
Cable: AWG24×3C UL1007
Connector housing: 51004-0600 (Molex Japan)
Connector terminal: 50011-8000 (Molex Japan)
