2.18
9850064 R03 - 2021 650 / 850 Matryx Trail Performance / Crossover Snowmobile Service Manual
© Copyright Polaris Inc.

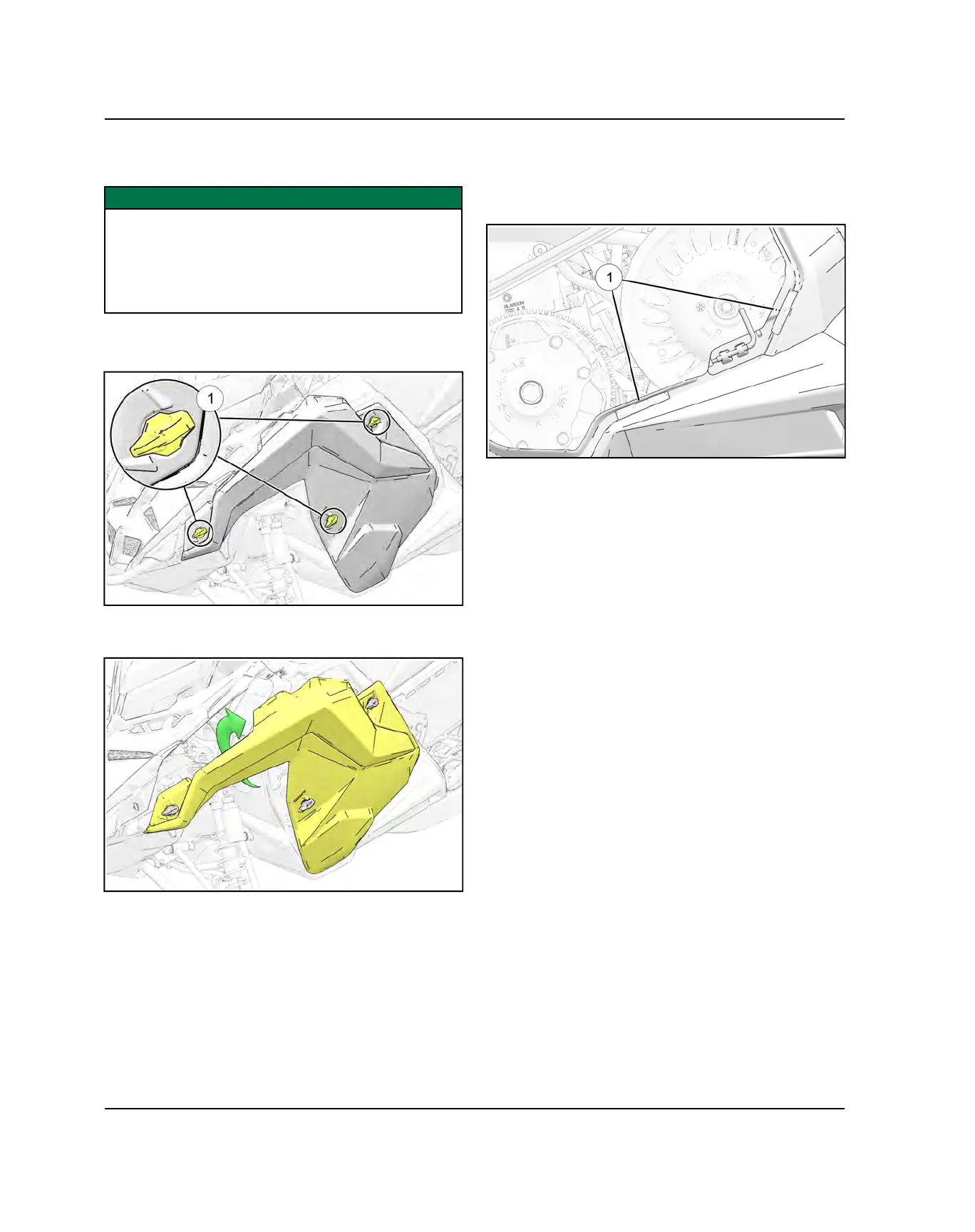

HOOD / SIDE PANEL SERVICE
SIDE PANEL REMOVAL
IMPORTANT
The hood and side panels protect the operator from
moving parts. Never operate a snowmobile with the
side panels open or removed. Always ensure that the
hood and side panels are installed and securely latched
before starting the engine unless instructed to do so for
servicing reasons.
1. Rotate the three 1/4 turn fasteners
q
at the front and
rear of the panel.
2. Open the side panel, then pull the panel outward to
release the tabs at the bottom.
SIDE PANEL INSTALLATION
1. Align the tabs on the side panel with the slots
q
in
the fender and console.
Left side shown, right side similar.
2. Carefully insert the rear tab of the side panel and
pivot the panel inward to insert the bottom tab.
3. Close the panel and secure with the three 1/4 turn
fasteners.
MAINTENANCE
