9850064 R03 - 2021 650 / 850 Matryx Trail Performance / Crossover Snowmobile Service Manual
© Copyright Polaris Inc.
5.9

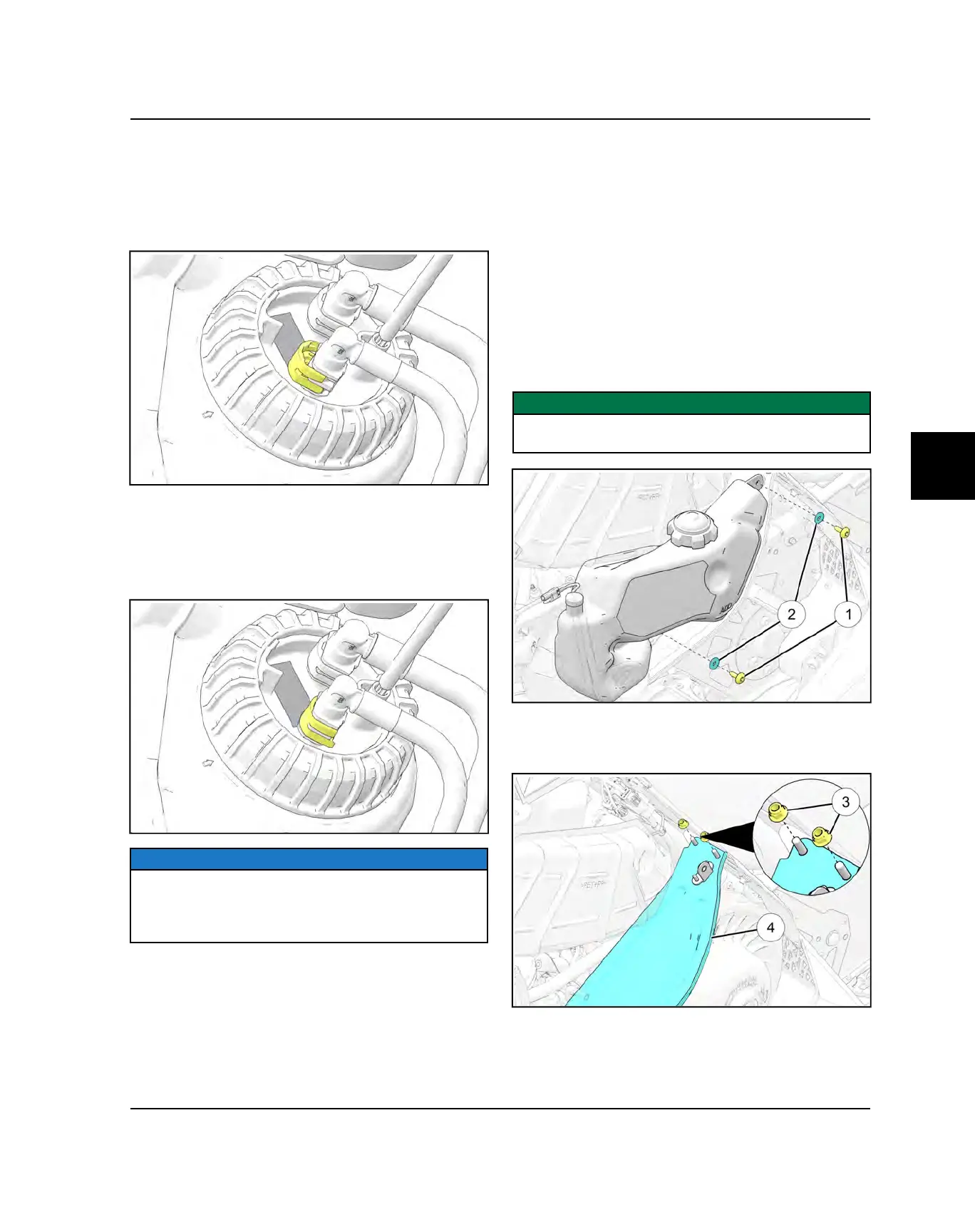

FUEL HOSE QUICK DISCONNECT
FITTINGS
Disconnect the fuel hoses by pressing the lock tabs
outward and then pushing the lock out of the connector.
Pull the connector up and off of the fitting (fuel pump
connections shown).
Reconnect the fittings by pushing the hoses together
until the hose flange bottoms-out in the connector. Push
the locking tabs inwards to secure the fitting. Verify an
audible “click” is heard when the lock tabs snap into
place. Pull up firmly on the connector to verify it is
secured.
NOTICE
Do not apply excessive pressure to fuel fittings or clips.
Verify proper operation of the fitting and clip by lightly
pulling on fitting to ensure it is secure before completing
repair.
THROTTLE BODY REMOVAL
1. Remove the side panels and hood.
2. Remove the console. See Console Removal page
9.23.
3. Remove the drive belt and driven clutch. See the
following procedures for removal:
• Drive Belt Removal
• Driven Clutch Removal
4. Remove the oil tank mounting fasteners
q
and
washers
w
securing the oil tank to the clutch guard.
Pull the oil tank away from the clutch guard just
enough to access the intake tube screw.
IMPORTANT
Do not damage the oil supply hose when moving the oil
tank.
5. Remove the fasteners
e
retaining the rear of the
clutch guard
r
and remove the clutch guard by
sliding the front out of the fender.
FUEL SYSTEM
