9850064 R03 - 2021 650 / 850 Matryx Trail Performance / Crossover Snowmobile Service Manual
© Copyright Polaris Inc.
3.123
E-VES-II – USING DIGITAL WRENCH DATA
DISPLAY
The Digital Wrench Data Display can be configured to
show the data items associated with the E-VES system.
The E-VES data items will not show any information or
populate current (active) diagnostic trouble codes
(DTCs) unless one of the following conditions is met:
• Engine is running
• Battery voltage supplied to the ECU PWR test and
Critical PWR test connectors.

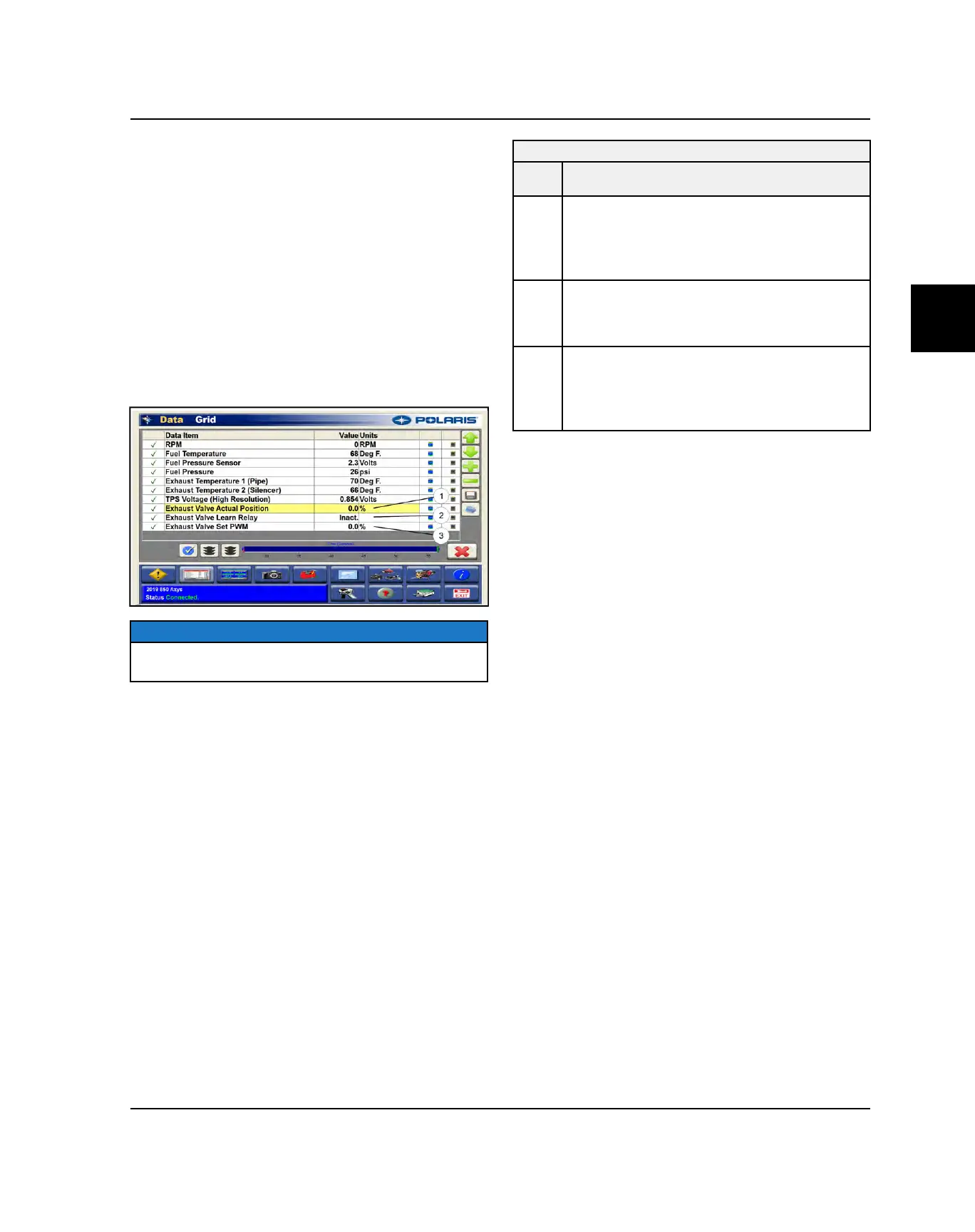

The data display image shows the four data items for the
E-VES system. Digital Wrench is connected to the
snowmobile with the engine off.
NOTICE
Create a custom data list display to show the E-VES
data items.
E-VES DIGITAL WRENCH DATA DISPLAY
DATA
ITEM
DESCRIPTION
q
EXHAUST VALVE ACTUAL POSITION
0.0% = Valves Closed
55.0 – 60.0% = Valves at Mid Position
100.0% = Valves at Full Open Position
w
EXHAUST VALVE LEARN RELAY
When engine is running, this relay should set to
“ACTIVE”.
e
EXHAUST VALVE SET PWM
PWM (Pulse Width Modulated) signal sent from
the ECU to the EV actuator to command the
valve position.
ENGINE / COOLING / EXHAUST
