SHOCKS - PRO-CC MODELS
FRONT TRACK SHOCK (FTS) SERVICE

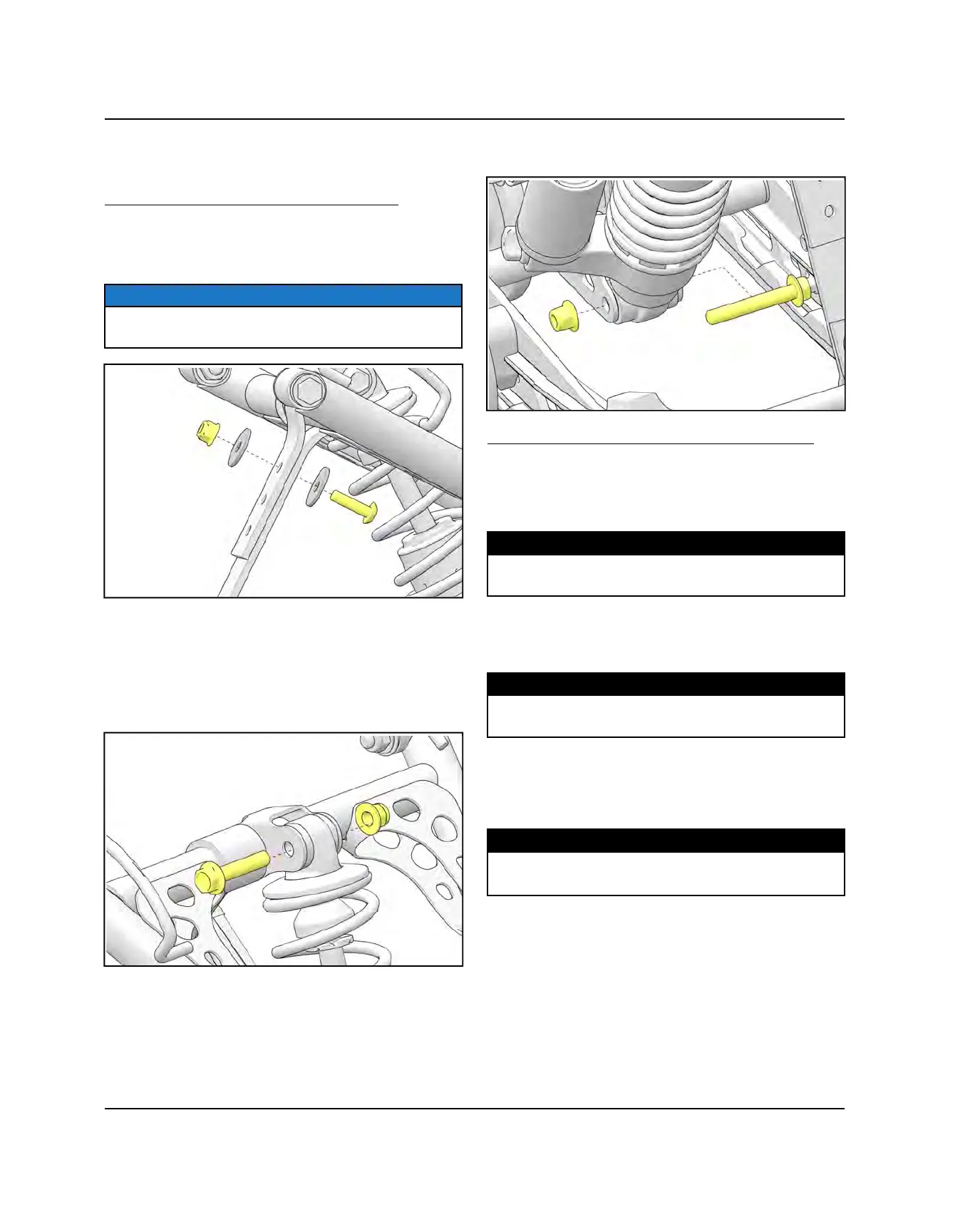

FRONT TRACK SHOCK (FTS) REMOVAL
1. With the snowmobile sitting on a flat surface, note
where the limiter strap screw is installed. Remove the
fastener securing the top of the limiter strap to the
front torque arm cross shaft.
NOTICE
Limiter strap fastener shown in the stock (upper hole)
position.
2. Raise the rear of the snowmobile off of the ground
using a dedicated track stand or similar device.
3. Measure the shock preload setting. Loosen the spring
preload by turning the preload adjuster clockwise.
4. Remove the fastener securing the shock rod to the
front torque arm. Discard the lock nut.
5. Remove the fastener securing the shock body to the
H-bracket. Discard the lock nut.
FRONT TRACK SHOCK (FTS) INSTALLATION
1. Install the FTS and align mounting holes.
2. Install the fastener securing the shock body to the H-
bracket. Use new lock nut. Torque fastener to
specification.
TORQUE
FTS Mounting Fasteners:
33 ft-lbs (45 N·m)
3. Install the fastener securing the shock rod to the front
torque arm. Use new lock nut. Torque fastener to
specification.
TORQUE
FTS Mounting Fasteners:
33 ft-lbs (45 N·m)
4. To secure the limiter strap, lower the front of the track
onto a floor jack. Jack the front of the suspension
upward until the limiter strap screw can be installed.
Torque fastener to specification.
TORQUE
Limiter Strap Lock Nuts:
12 ft-lbs (16 N·m)
5. Reset the FTS spring preload to the measurement
noted prior to disassembly.
