9850064 R03 - 2021 650 / 850 Matryx Trail Performance / Crossover Snowmobile Service Manual
© Copyright Polaris Inc.
3.127

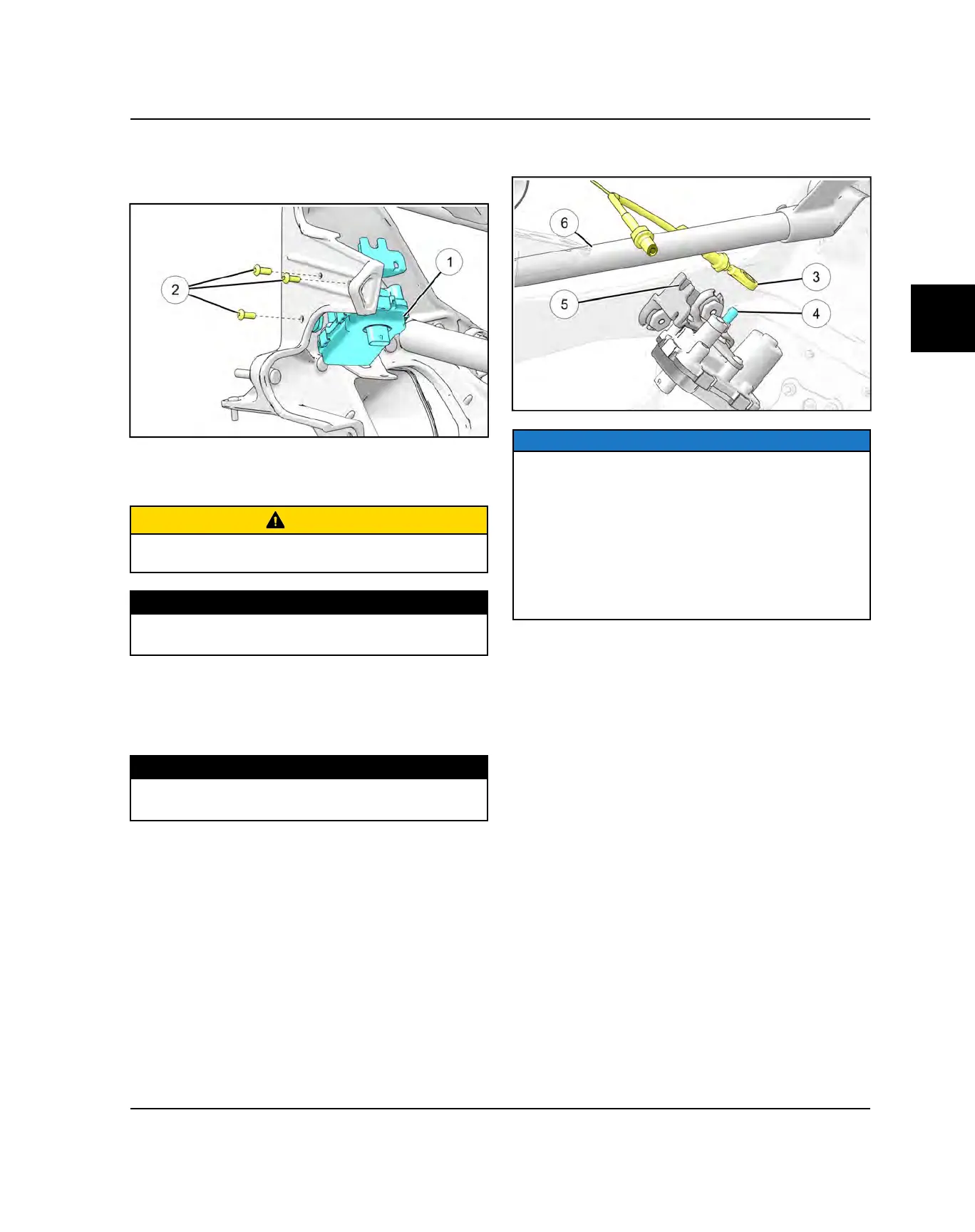

EV ACTUATOR MOUNTING
The EV actuator
q
is mounted to the front right bulkhead
clip.
The three mounting screws
w
/ retainer nuts can be
accessed by removing the hood assembly. Exhaust pipe
removal is not required.
CAUTION
Allow exhaust pipe to cool completely prior to servicing
EV actuator.
TORQUE
EV Actuator Mount Fasteners:
9 ft-lbs (12 N·m)
When installing the push / pull cable
e
, push the cable
end onto the lever pin
r
.
Install the jam nuts into the actuator cable bracket
t
.
Torque to specification.
TORQUE
E-VES Actuator Cable Jam Nut:
13 ft-lbs (18 N·m)
Route the push / pull cable over the bulk head support
tube
y
.
NOTICE
The EV Actuator Learn Procedure must be performed
whenever the following occurs:
• EV actuator is replaced
• EV actuator cable is replaced or removed from the tie
bar
• Any exhaust valve (upper or lower) is replaced
• Cylinder is replaced
ENGINE / COOLING / EXHAUST
