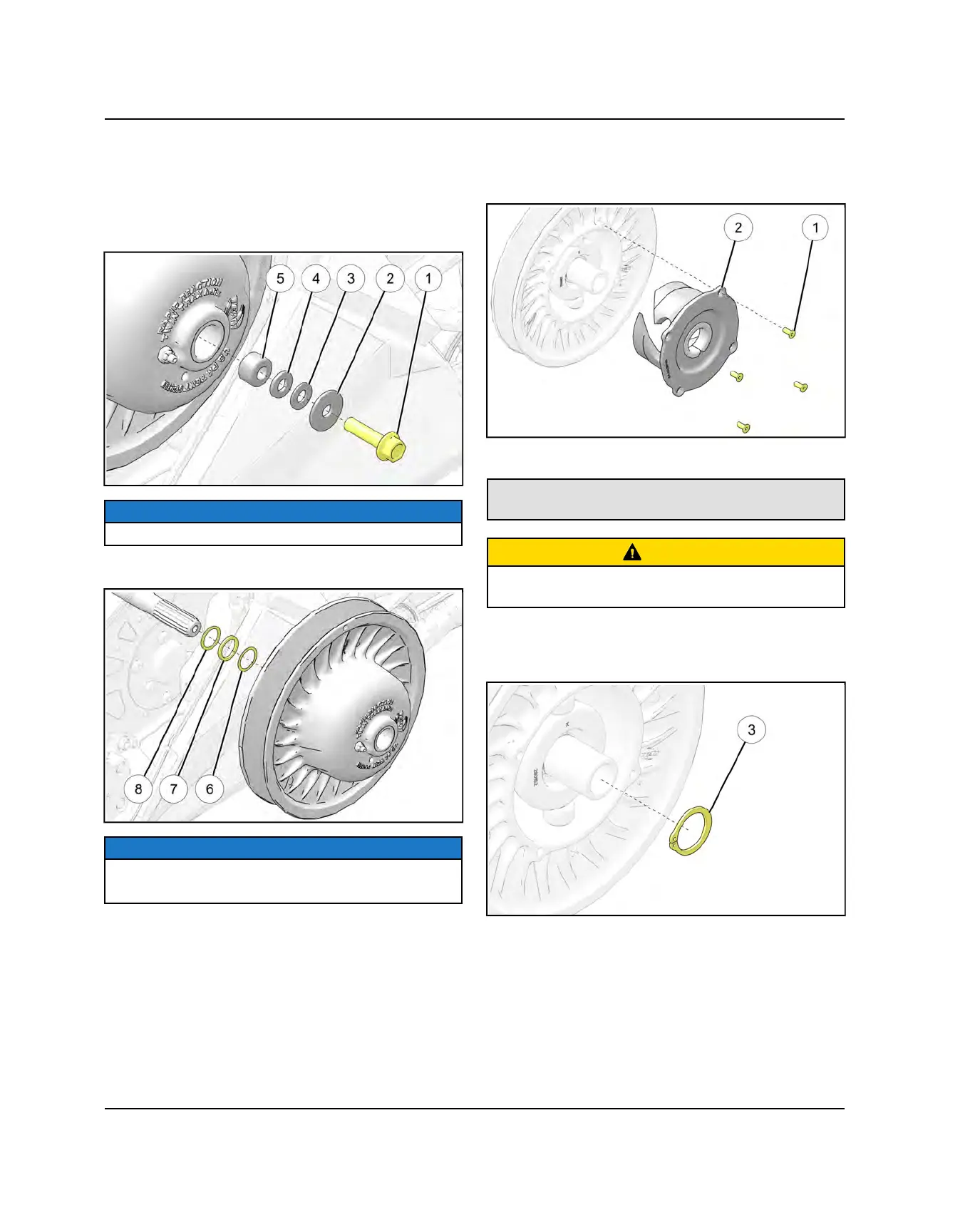

DRIVEN CLUTCH REMOVAL
1. Remove the drive belt.
2. Lock the parking brake.
3. Remove the driven clutch bolt
q
, flat washer
w
, float
washers
e
and
r
, and spacer
t
.
NOTICE
Note the number of float washers installed on the bolt.
4. Slide the driven clutch off of the jackshaft.
NOTICE
Note the number and location of the offset washers
y
and
u
/ bushing
i
located behind the driven clutch.
5. Inspect the jackshaft and driven clutch splines for
damage. Replace components as required.
DRIVEN CLUTCH DISASSEMBLY
1. Remove the screws
q
from the helix, then carefully
pry the helix
w
out of the moveable sheave.
2. Install the clutch in the clutch compressor fixture.
Clutch Compressor Fixture:
PU-50518
CAUTION
Driven spring under pressure. Wear eye protection
when removing snap ring and helix.
3. Wearing eye protection, carefully compress the roller
assembly to gain access to the snap ring. Remove
the snap ring
e
.
