9850064 R03 - 2021 650 / 850 Matryx Trail Performance / Crossover Snowmobile Service Manual
© Copyright Polaris Inc.

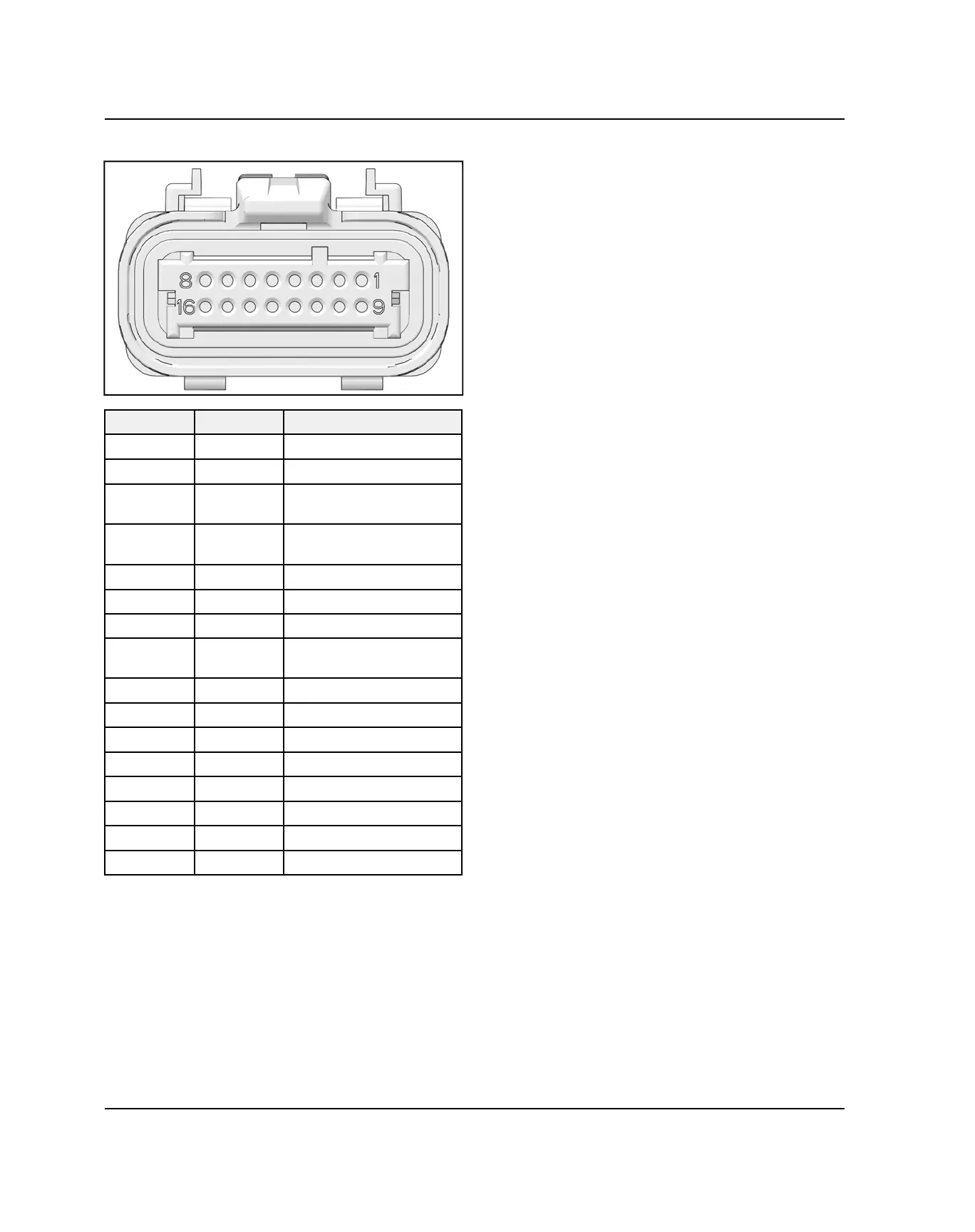

7S DISPLAY PINOUT
PIN COLOR FUNCTION
1 YE CAN HI
2 DG CAN LOW
3 RD/DG
SWITCHED DISPLAY
POWER
4 RD/YE
CONSTANT DISPLAY
POWER
5
BN CHASSIS GND
6
— —
7
— —
8 YE/RD
HIGH BEAM HEADLIGHT
PWR
9
— —
10
— —
11 VT/WH FUEL LEVEL
12
— —
13
— —
14
— —
15
— —
16 WH/RD ACCENT LED CONTROL
BATTERY / ELECTRICAL
