9.20
9850064 R03 - 2021 650 / 850 Matryx Trail Performance / Crossover Snowmobile Service Manual
© Copyright Polaris Inc.

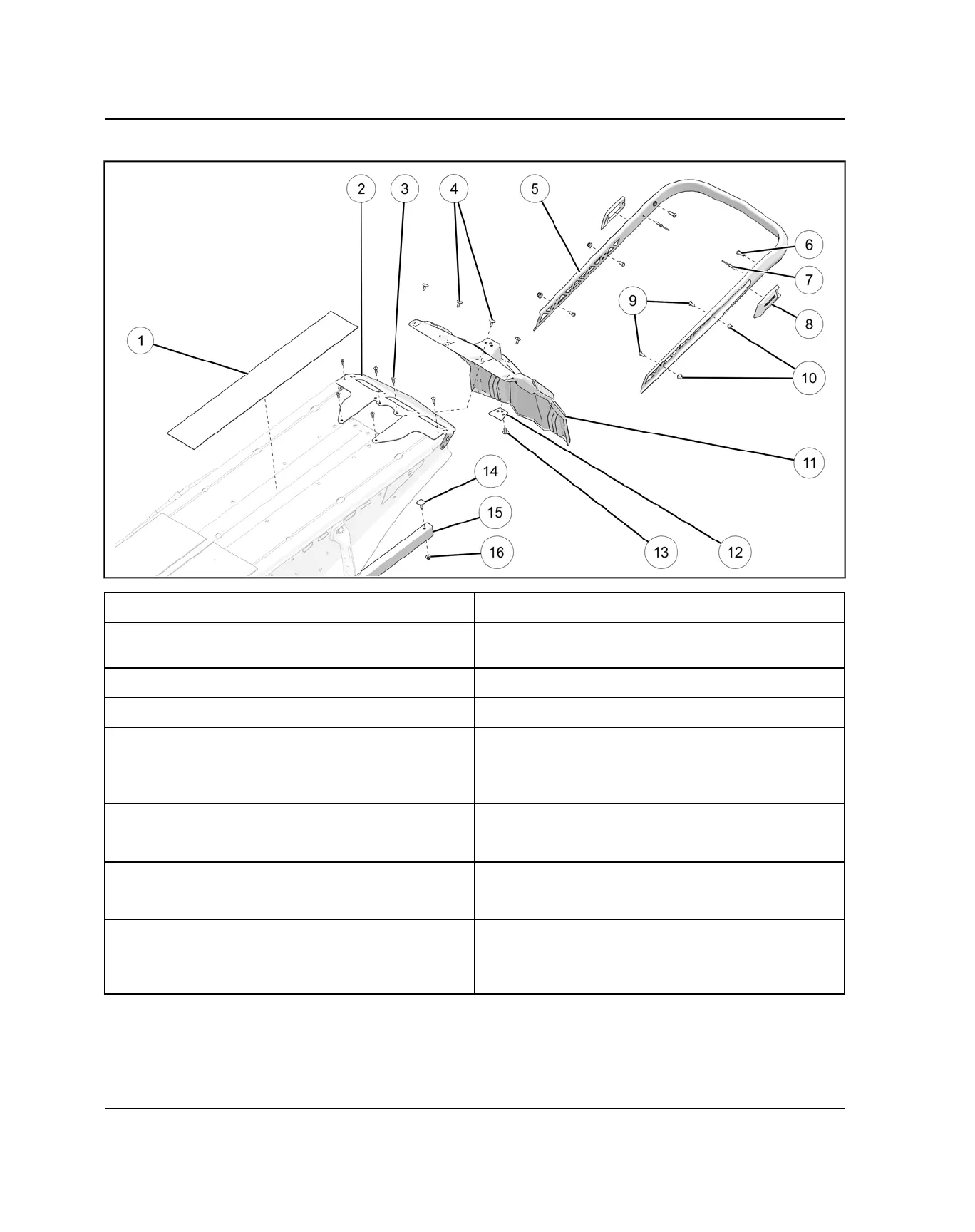

REAR BUMPER / CLOSEOFF ASSEMBLY VIEW
q
Taillight Harness Cover
o
Bumper Fasteners
w
Rear Tunnel Closeoff
a
Nut
75 in-lbs (8.5 N·m)
e
Rivet
s
Snow Flap
r
Rivet
d
Snow Flap Plate
t
Rear Bumper
f
Snow Flap Plate Fastener
42 in-lbs (4.7 N·m)
Ensure the screw is seated against the aluminum plate
and snowflap is tight against the bumper
y
Bumper Fasteners
75 in-lbs (8.5 N·m)
g
Tunnel Protector Fastener
Only applicable if stud protection accessory kit is
installed
u
Rivet
h
Tunnel Protector
Only applicable if stud protection accessory kit is
installed
i
Tube Plug
j
Nut
7 ft-lbs (9 N·m)
Only applicable if stud protection accessory kit is
installed
CHASSIS
