10.Once the adhesive bond is broken, remove the left-
side bulkhead clip from the chassis.
NOTICE
If the component is to be re-used, the adhesive must be
completely removed. See Bonded Component Surface
Preparation section.
LEFT BULKHEAD CLIP INSTALLATION
NOTICE
Thoroughly read and understand the Adhesive
Applicator Tool and Adhesive Application sections
before proceeding.
1. Verify the bulkhead clip and engine side support
brace are thoroughly cleaned and all residual
adhesive is removed from both parts.
2. Gather the fasteners that secure the bulkhead clip to
the engine side support brace.
3. Apply the adhesive to the left bulkhead clip as
outlined in Adhesive Application Patterns page 9.31.

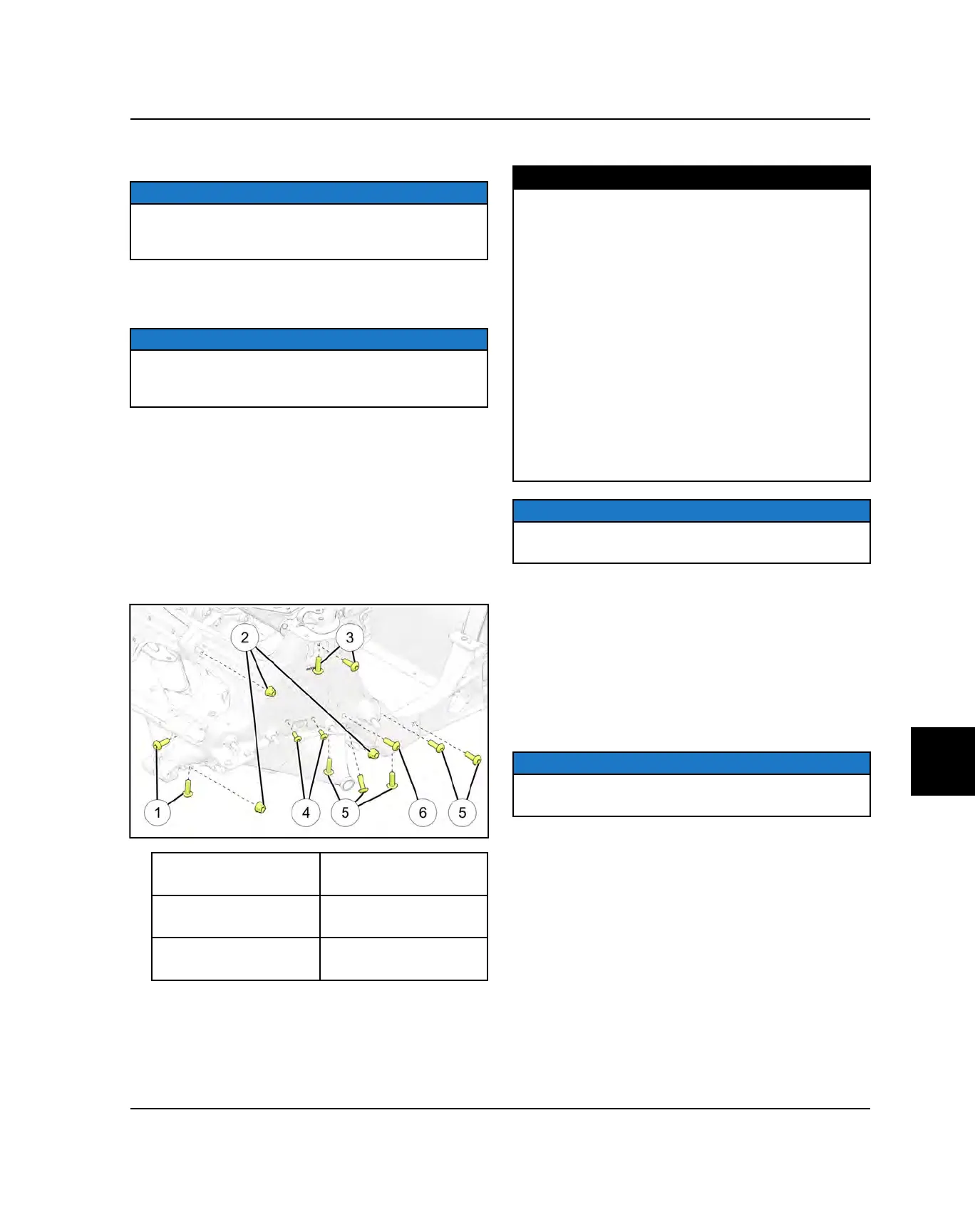

4. Install the bulkhead clip. Loosely install the fasteners
q
-
y
that attach the bulkhead clip.
q
Lower Steering
Mount Fasteners
r
Idler Bracket
Fastener
w
Clip Mounting
Fasteners
t
Side Support
Fasteners
e
Front Lower Over
Structure Fasteners
y
Crossover Tube
Fastener
5. Torque fasteners to specification.
TORQUE
Lower Steering Mount Fasteners
q
:
22 ft-lbs (30 N·m)
Clip Mounting Fasteners
w
:
26 ft-lbs (35 N·m)
Front Lower Over Structure Fasteners
e
:
22 ft-lbs (30 N·m)
Idler Bracket Fastener
r
:
9 ft-lbs (12 N·m)
Side Support Fasteners
t
:
26 ft-lbs (35 N·m)
Crossover Tube Fastener
y
:
22 ft-lbs (30 N·m)
NOTICE
The fasteners must be torqued within the adhesive
working time of 6 to 10 minutes.
6. Reinstall the following components:
• Bulkhead Floor Plate (See Bulkhead Floor Plate
Installation page 9.35)
• Engine assembly (See Engine Installation page
3.39)
• Left side front suspension components (See the
Steering and Suspension Chapter)
• Tie rod boot
NOTICE
Allow the adhesive to cure for 24 hours at 68 °F (20 °C)
before placing the snowmobile back into service.
