9850064 R03 - 2021 650 / 850 Matryx Trail Performance / Crossover Snowmobile Service Manual
© Copyright Polaris Inc.
7.13

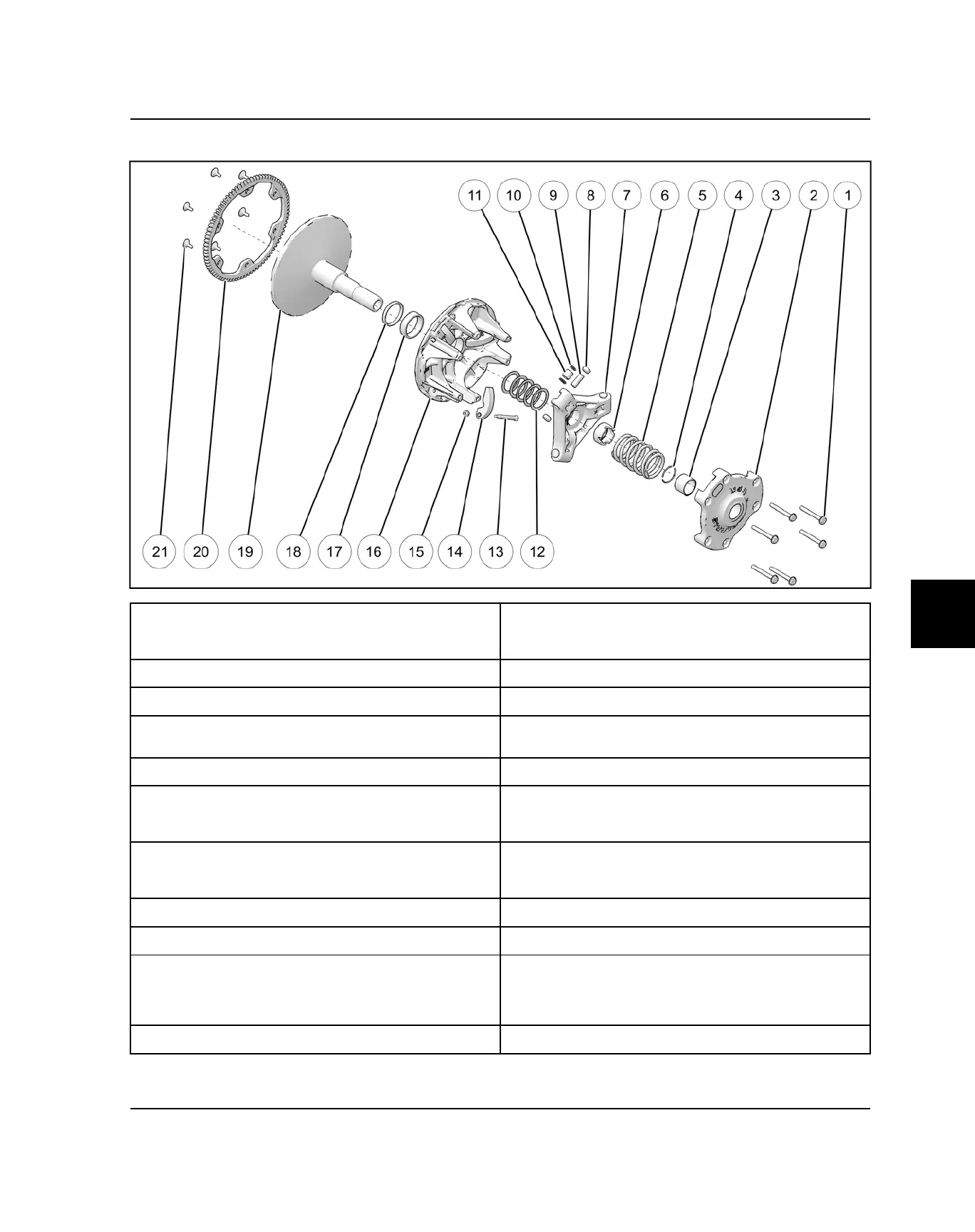

DRIVE CLUTCH ASSEMBLY VIEW
q
Clutch Cover Fasteners
100 in-lbs (11 N·m)
Use cross pattern
d
Spacers
w
Clutch Cover
f
Weight Pin
e
Cover Bearing
g
Weight / Bushing
r
Retaining Ring
h
Flexloc Nut
25 in-lbs (3 N·m)
t
Drive Clutch Spring
j
Moveable Sheave
y
Jam Nut
290-330 ft-lbs (394-447 N·m)
Apply Loctite® 243™ to Threads
k
Bearing Sleeve
u
Spider
280-300 ft-lbs (380-406 N·m)
Apply Loctite® 243™ to Threads
l
Moveable Insert
i
Guide Button
1(
Stationary Sheave
o
Roller Pin
2)
Starter Ring Gear (Applicable to electric start models)
a
Washers
2!
Starter Ring Gear Fasteners (Applicable to electric start
models)
165 in-lbs (19 N·m)
Apply Loctite® 271™ to Threads in hole of Stationary Sheave
s
Roller and Bushing
PVT SYSTEM
