Polaris 850 MATRYX SWITCHBACK ASSAULT 146 2021 User Manual

8
9850064 R03 - 2021 650 / 850 Matryx Trail Performance / Crossover Snowmobile Service Manual
© Copyright Polaris Inc.
8.35

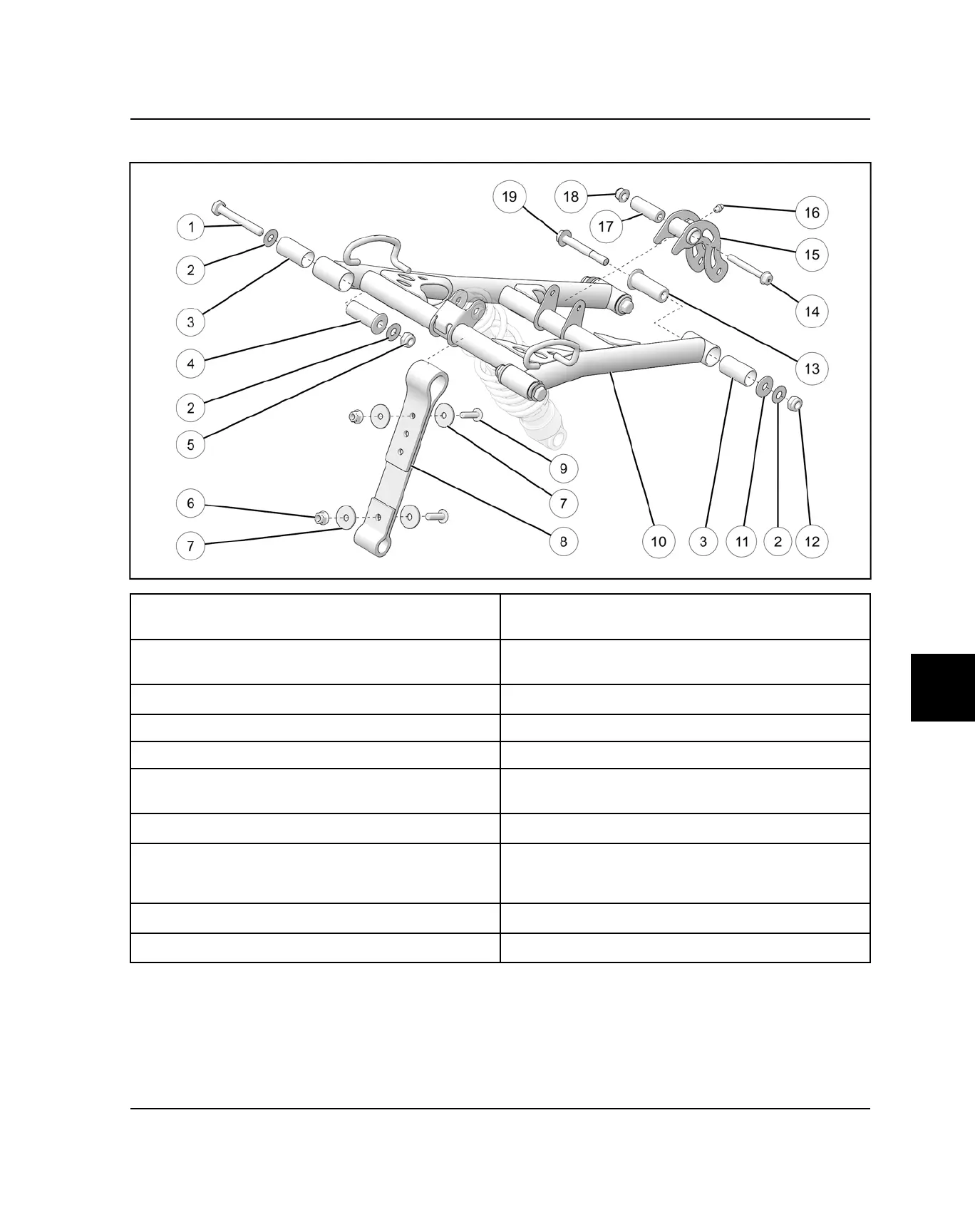

IGX 146 FRONT TORQUE ARM ASSEMBLY VIEW
q
Front Torque Arm to Tunnel Fastener
50 ft-lbs (68 N·m)
s
Washer
w
Washer
d
Nut
46 ft-lbs (63 N·m)
e
Pivot Bushing
f
Pivot Shaft
r
Pivot Shaft
g
Shock Pivot Fastener
t
Nut
h
Shock Pivot
y
Nut
12 ft-lbs (16 N·m)
j
Lubrication Fitting
u
Washer
k
RTS Pivot Bushing
i
Limiter Strap
Assembled with cloth compound side wrapped around
shaft, rubber to the outside
l
Nut
24 ft-lbs (33 N·m)
o
Limiter Strap Fastener
1(
Front Torque Arm to Rail Fastener
a
Front Torque Arm
STEERING / SUSPENSIONS
