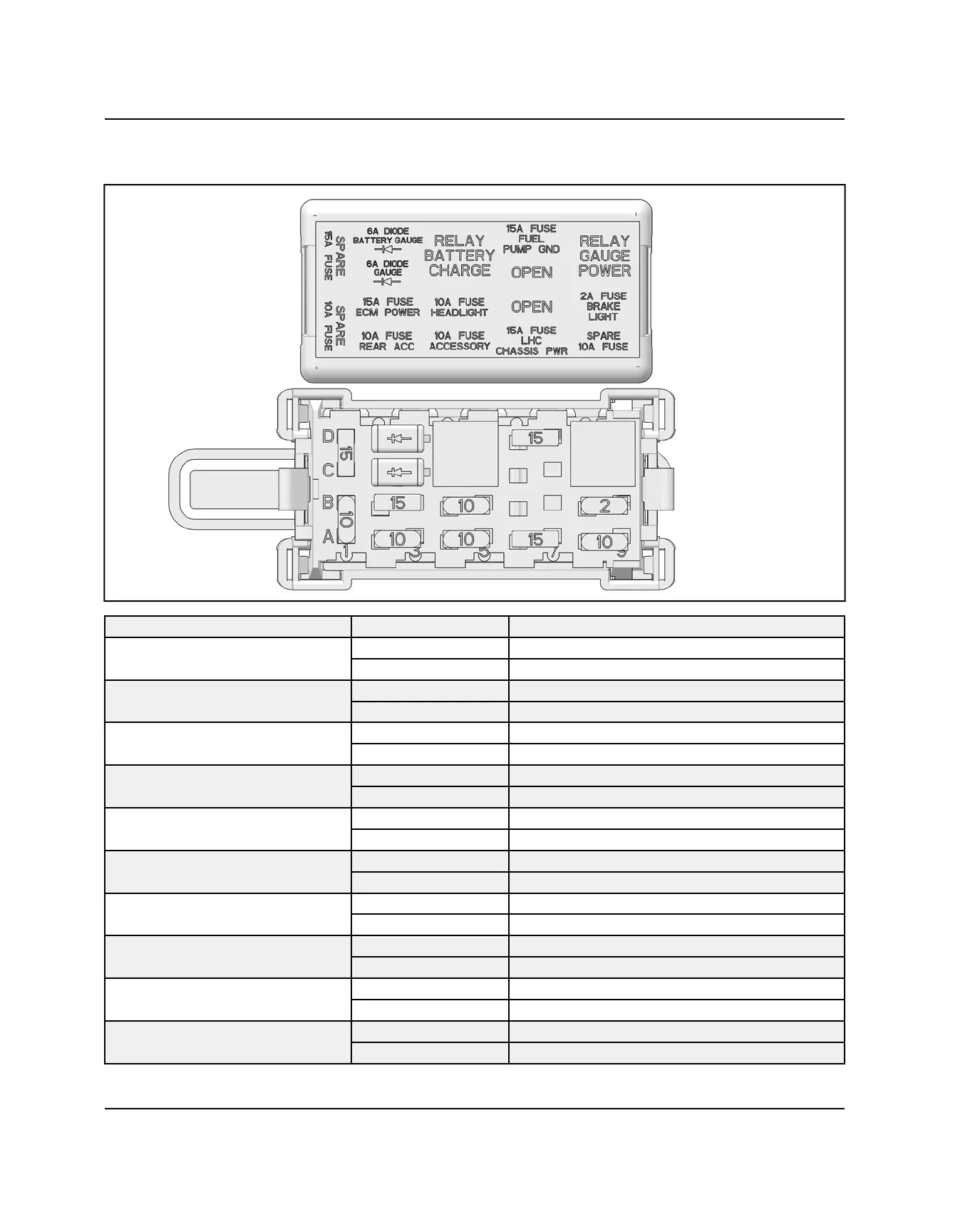

LOAD CENTER
LOAD CENTER DETAILS
CIRCUIT PIN FUNCTION
Spare 10A Fuse
A1
—
B1
—
Spare 15A Fuse
C1
—
D1
—
10A Fuse Rear Acc
A2
Power In
A3 Power Out
10A Fuse Accessory
A4 Power In
A5 Power Out
15A Fuse LHC Chassis PWR
A6 Power In
A7 Power Out
Spare 10A Fuse
A8
—
A9
—
15A Fuse ECM Power
B2 Power In
B3 Power Out
10A Fuse Headlight
B4 Power In
B5 Power Out
OPEN
B6
—
B7
—
2A Fuse Brake Light
B8 Power In
B9 Power Out
BATTERY / ELECTRICAL
