BATTERY HARNESS ROUTING

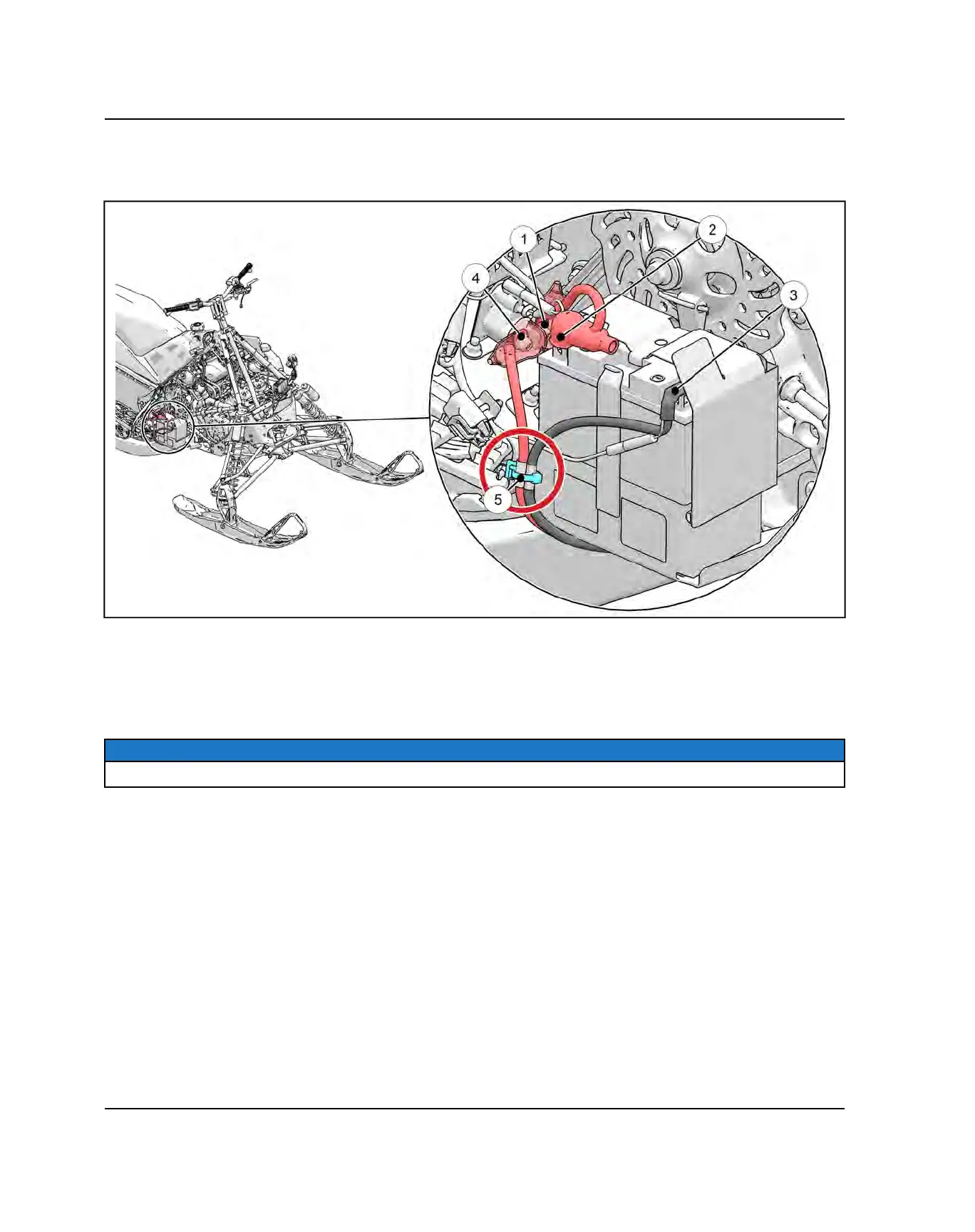

1. Connect one end of the battery / solenoid cable to the left solenoid post
q
and the other end to the positive battery
terminal
w
.
2. Connect the negative battery cable to the negative battery terminal
e
and route the cable downward toward edge
clip on the right footrest.
3. Connect the solenoid end of the positive battery cable to the right solenoid post
r
and route the cable downward
toward edge clip on the right footrest.
4. Secure the positive and negative battery cables together with the edge clip / panduit in location shown
t
.
NOTICE
The white tape signifies a retention point.
BATTERY / ELECTRICAL
