ADJUSTABLE HEADLIGHT
NOTICE
The image below is for reference only. Your model may differ slightly.
INSPECTION
It is very crucial to correctly complete the steps below in order to achieve optimal headlight performance. The headlight
can be inspected for vertical aim using the following procedure.
1. In a well-ventilated area, position the snowmobile on a level surface with the headlight approximately 25 feet (7.6
m) from a wall
q
.
2. Place the rider or the approximate weight of the rider on the seat or tunnel floorboards.

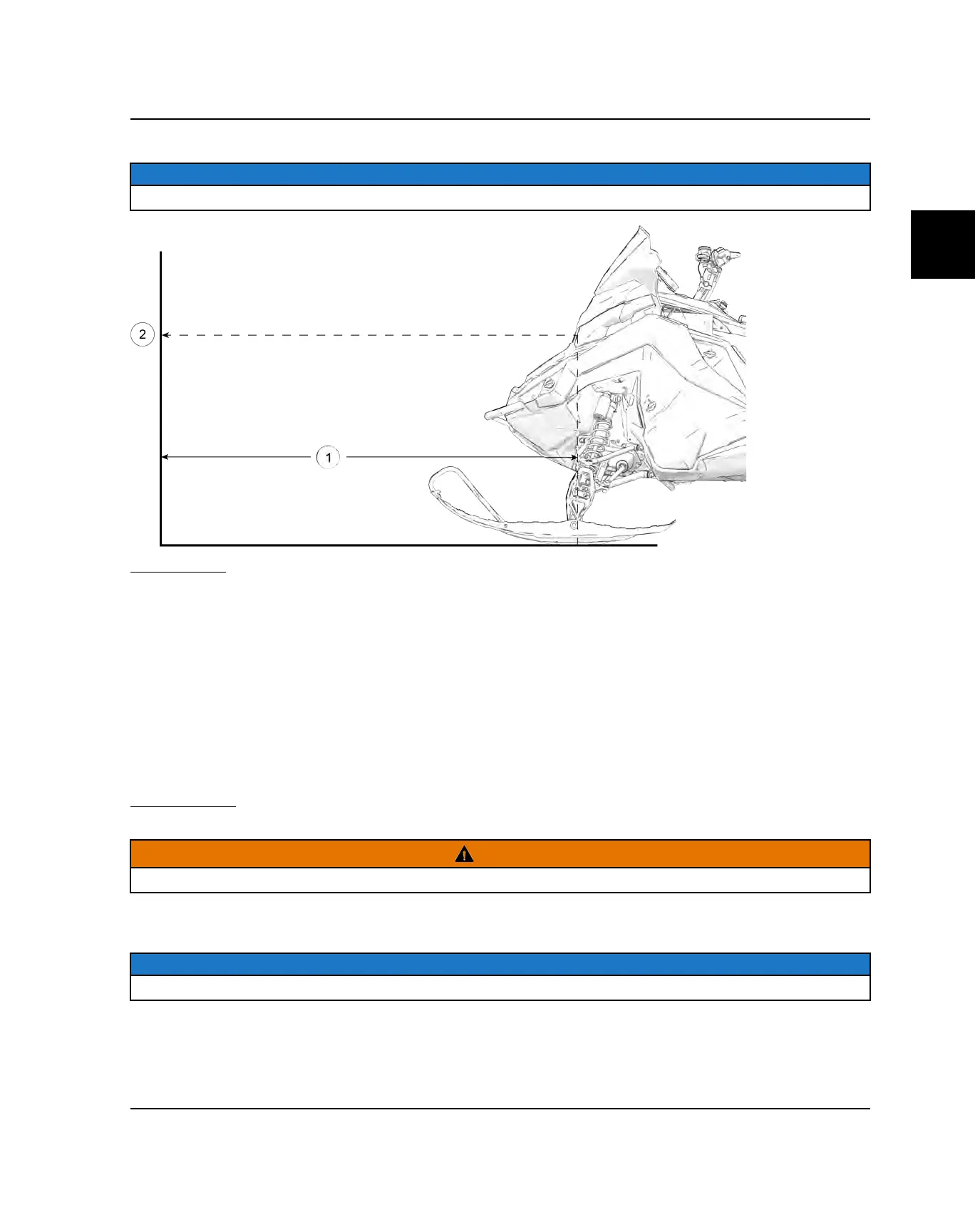

3. Measure the distance from the floor to the center of the headlight and make a mark on the wall at the same height
w
.
4. Start the engine. Move the headlight switch to low beam.
5. Observe the headlight aim on the wall. There should be a distinct horizontal line on the wall from the low beam.
That line should align with the mark on the wall
w
.
ADJUSTMENT
1. Shut off engine.
WARNING
To prevent serious injury, NEVER attempt to adjust the headlight while the engine is running.
2. If adjustment is necessary, an adjuster knob is located on the back of the headlight, which can be accessed by
removing the vehicle’s left side panel.
NOTICE
The adjuster knob is located at the rear of the light above the plug.
3. To LOWER the beam, turn the adjuster knob CLOCKWISE.
4. To RAISE the beam, turn the adjuster knob COUNTERCLOCKWISE.
