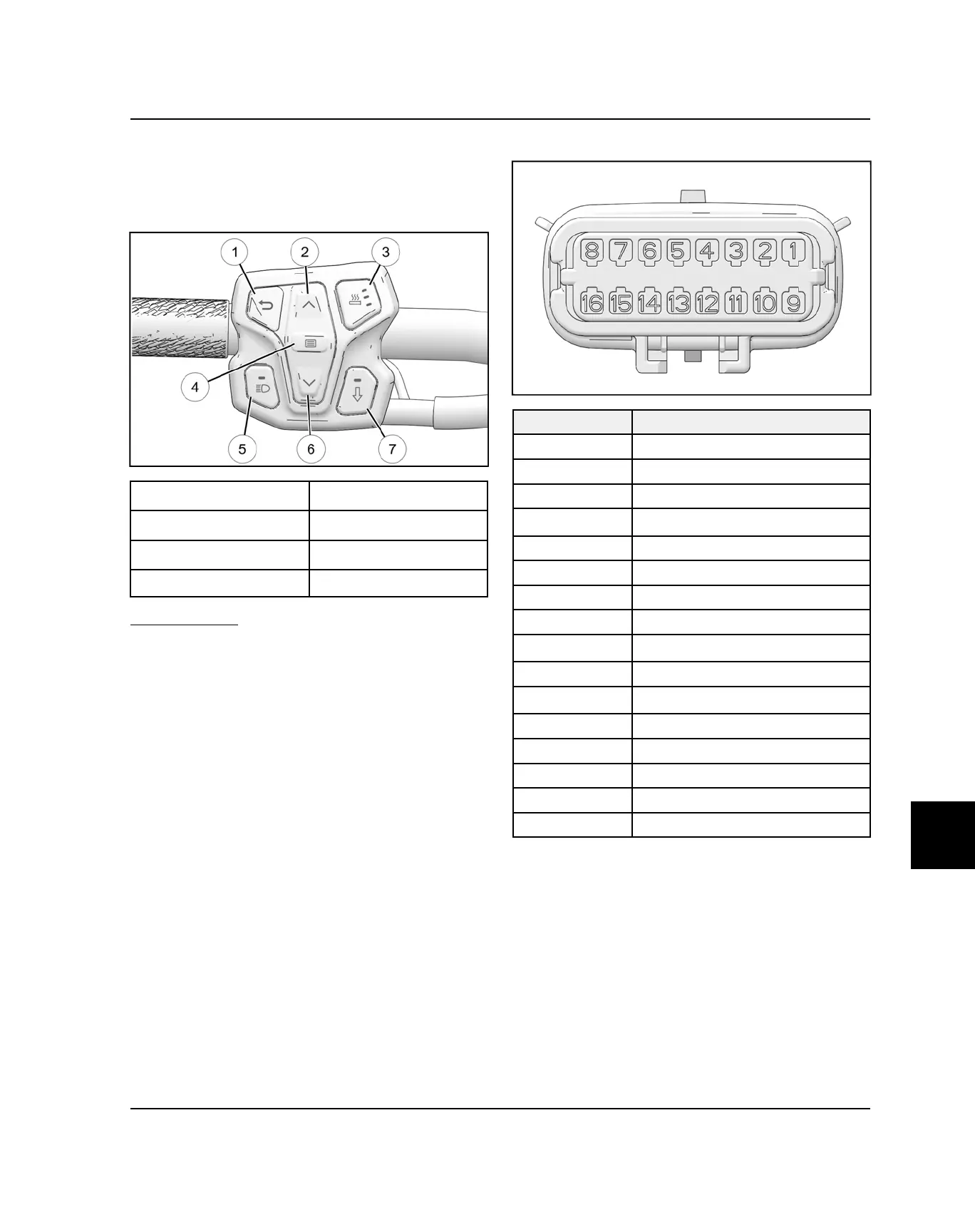

LEFT HAND CONTROL OVERVIEW
The left hand control features backlit silicon soft touch
controls and allows operators to easily change and view
functions. Reference the owner’s manual for user
information.
q
Back Button
t
High Beam Button
w
Up Button
y
Down Button
e
Heated Grips Button
u
Reverse Button
r
Select Button
DIAGNOSTICS
Digital wrench must be used troubleshooting issues with
the left hand control.
LEFT HAND CONTROL PINOUT
PIN FUNCTION
1 Critical Power
2 Chassis Power
3 Ground
4
High Beam
5 Reverse
6 RH Warmer
7 LH Warmer
8 Throttle Warmer
9
CAN High
10 CAN Low
11
Ignition Switch Power
12 Start Solenoid
13 Start Ground
14
—
15
—
16
—
