8.30
9850064 R03 - 2021 650 / 850 Matryx Trail Performance / Crossover Snowmobile Service Manual
© Copyright Polaris Inc.

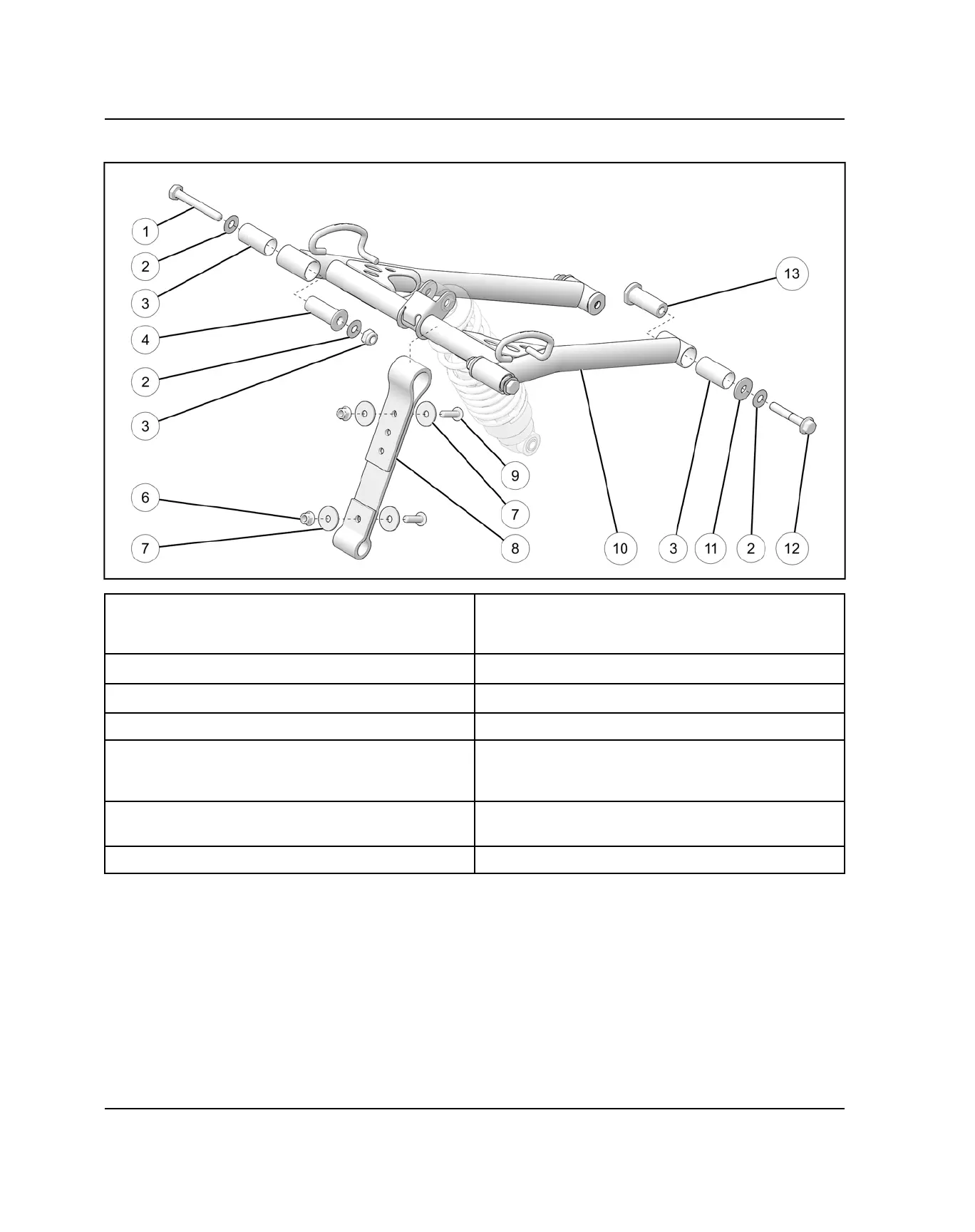

PRO-CC FRONT TORQUE ARM ASSEMBLY VIEW
q
Front Torque Arm to Tunnel Fastener
46 ft-lbs (63 N·m)
i
Limiter Strap
Assembled with cloth compound side wrapped around
shaft, rubber to the outside
w
Washer
o
Limiter Strap Fastener
e
Pivot Bushing
a
Front Torque Arm
r
Pivot Shaft
s
Washer
t
Nut
d
Front Torque Arm to Rail Fastener
56 ft-lbs (76 N·m)
Apply Loctite 263 to fastener prior to assembly
y
Nut
12 ft-lbs (16 N·m)
f
FTA Mount Tapped
u
Washer
STEERING / SUSPENSIONS
