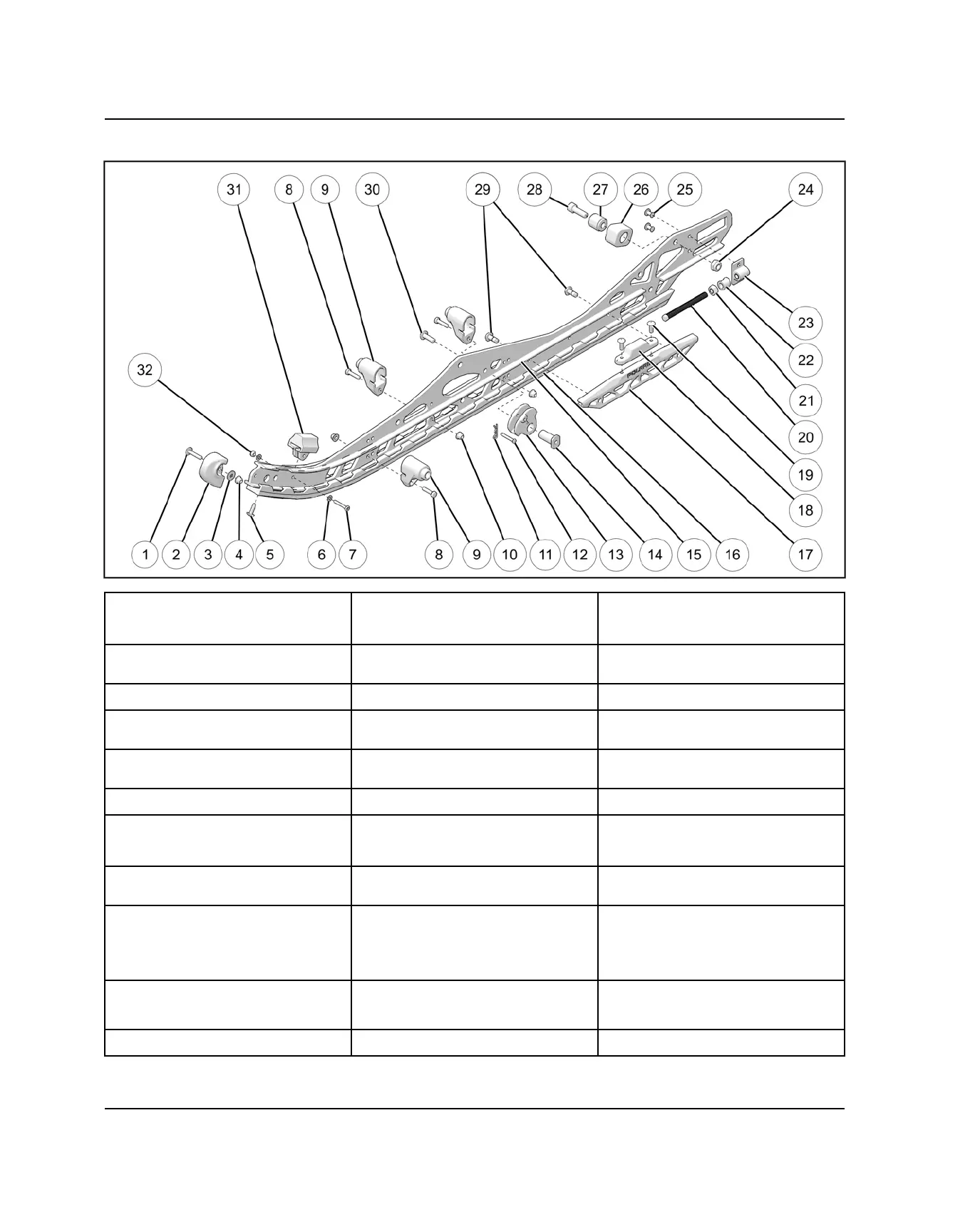

PRO-CC RAIL ASSEMBLY VIEW
q
Rail Tip Fastener
Head of screw to be on opposite side of rail as
adjuster block
d
Clevis Pin
2#
Idler Adjustment Block
w
Rail Tip
f
Spring Square Guide
2$
Nut
33 ft-lbs (45 N·m)
e
Washer
g
Spring Roller Shaft
2%
Rivet
r
Nut
4 ft-lbs (6 N·m)
h
Rail Assembly
2^
Pivot Arm Bumper
t
Hi-Fax Fastener
4 ft-lbs (6 N·m)
j
Hi-Fax
2&
Bumper Mount
y
Washer
k
Rail Plate Reinforcement
2*
Pivot Arm Bumper Fastener
u
Jounce Bumper Fastener
Head of screw to be on same side of rail as
adjuster block
l
Front Torque Arm Bumper
2(
Rail Plate Reinforcement Fasteners
17 ft-lbs (23 N·m)
i
Wheel Mount Block Fastener
1(
Front Torque Arm Bumper Fasteners
4 ft-lbs (6 N·m)
3)
Spring Roller Shaft Fastener
17 ft-lbs (23 N·m)
o
Wheel Mount Block
Wheel block goes in front hole on the LH rail
asm.
Wheel block goes in rear hole on the RH rail
asm.
2)
Adjustment Fastener
3!
Front Jounce Bumper
a
Nut
9 ft-lbs (12 N·m)
2!
Nut
3@
Nut
Torque until screw protrudes 5mm out of
nut
s
Hitch Pin
2@
Idler Adjustment Spacer
