DIGITAL WRENCH – DATA LIST DISPLAY
The Data List Display will display real time engine and
vehicle information.

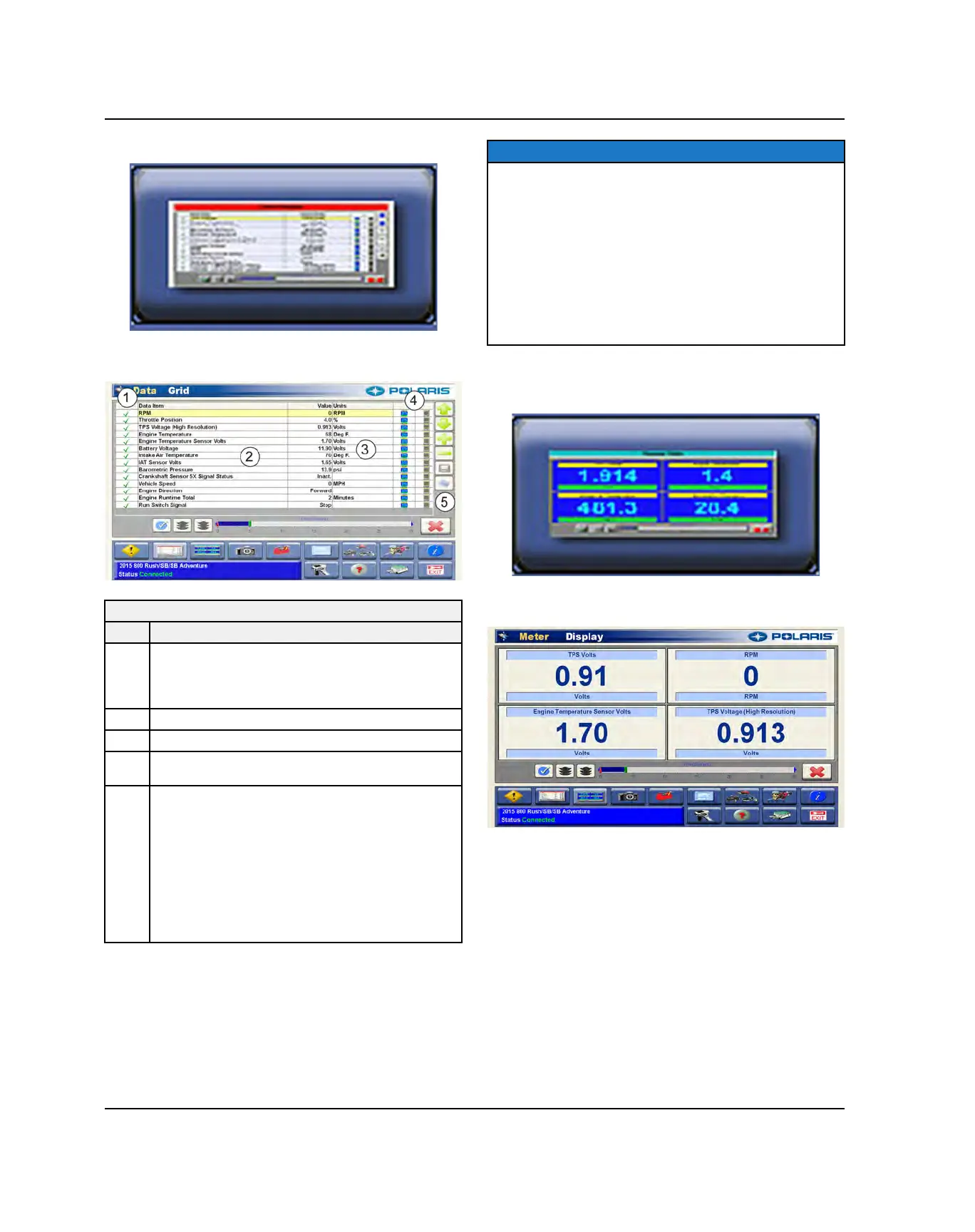

DIGITAL WRENCH DATA LIST DISPLAY
REF.
DESCRIPTION
q
Active Display – When check mark is displayed,
Digital Wrench will update the data. Click to
disable monitoring. This can speed-up the data
streams for the remaining items.
w
Components currently monitored by ECU
e
Component values and value units
r
Click to display either a large meter or real time
chart for the component
t
Table formatting tools
Click arrows to move data fields up or down in
the list.
Click + or — to add or subtract data fields. Up to
14 items can be displayed on the screen at one
time.
Click the save button to save the current view as
a custom data map.
Click the folder button to display more preset
data lists or create a customized data list.
NOTICE
Some components require the engine to be running or
power supplied to the CRITICAL PWR test connector to
display data.
For example, the EV actuator / converter will not return
any data values unless the engine is running or power
is supplied to the CRITICAL PWR test connector.
In another example, the EGT sensor(s) data value will
be inaccurate at room temperature. The EGT sensor
will only return accurate signal information after the
engine has been running over 3,000 RPM for several
minutes.
DIGITAL WRENCH – METERS
Click on the Meters button to display 4 large data meters
on the screen.
