3.109

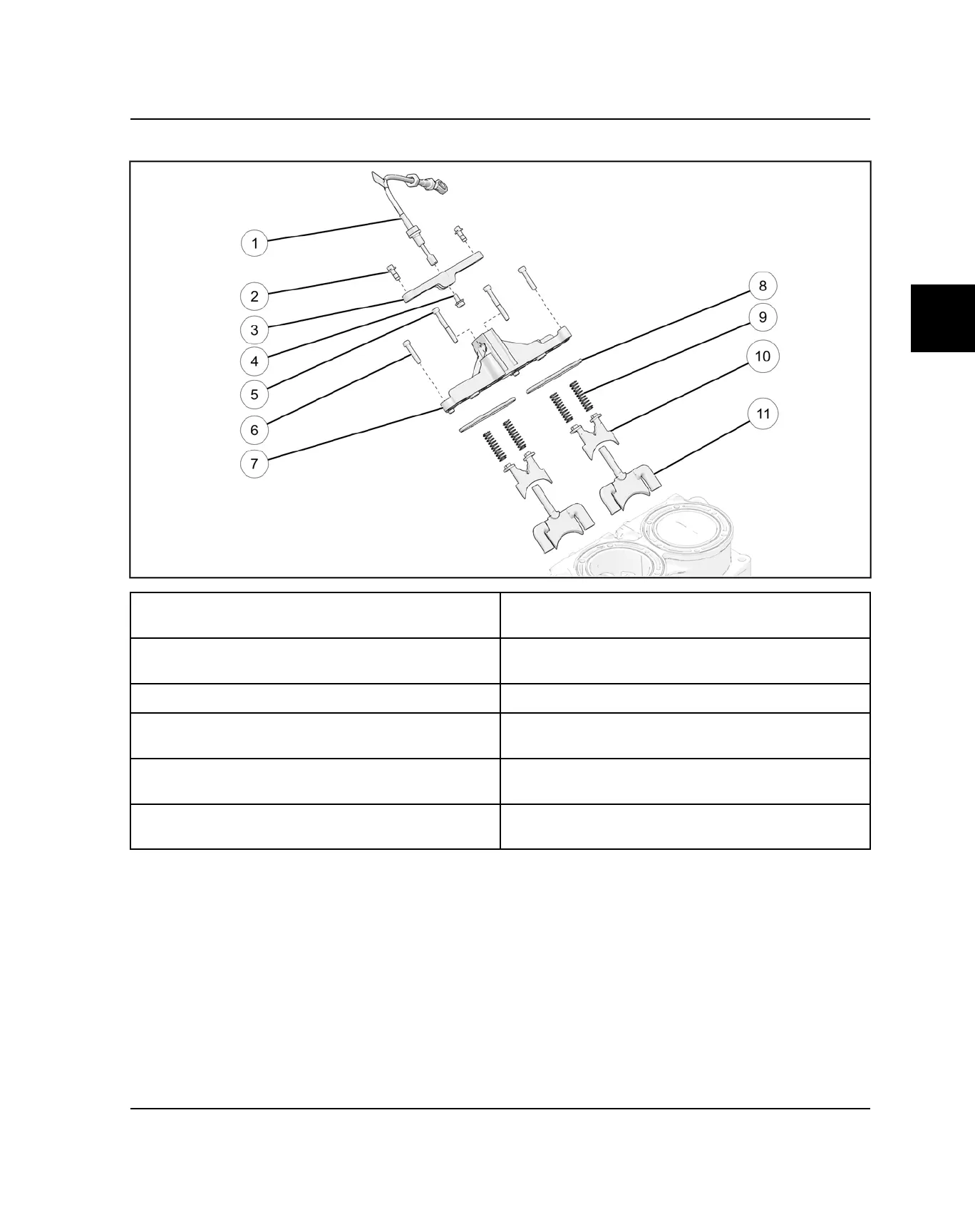

E-VES-II ASSEMBLY VIEW
q
EV Valve Push / Pull Cable
9 ft-lbs (12 N·m)
u
Exhaust Valve Base
w
Exhaust Valve Tiebar Fasteners (M6 x 1.0 x 16)
14 ft-lbs (19 N·m)
i
Cylinder Exhaust Valve Base Seal
e
Exhaust Valve Tiebar
o
Exhaust Valve Spring
r
EV Valve Push / Pull Cable Fastener (M6 x 1.0 x 12)
9 ft-lbs (12 N·m)
a
Upper Exhaust Valve Guillotine
t
Exhaust Valve Base Fasteners (M6 x 1.0 x 50)
9 ft-lbs (12 N·m)
s
Lower Exhaust Valve Guillotine
y
Exhaust Valve Base Fasteners (M6 x 1.0 x 30)
9 ft-lbs (12 N·m)
