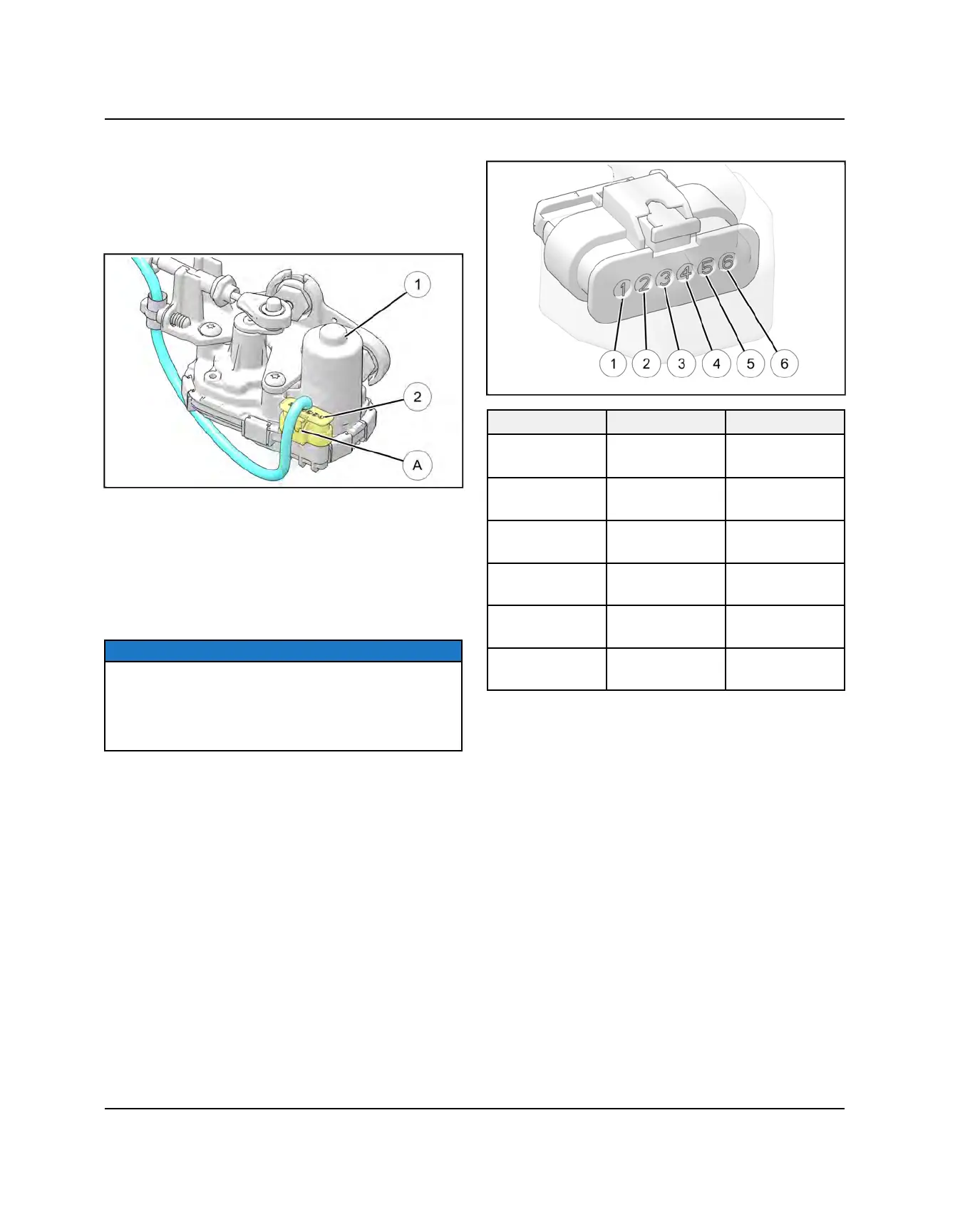

EV ACTUATOR WIRE HARNESS
CONNECTOR
The EV actuator
q
6 pin wire harness connector
w
differs from the vehicle’s other wire connectors in that it
uses a locking mechanism
A
to ensure the connector
remains connected during vehicle operation.
The connector cannot be removed from the actuator
when the lock is engaged. To disengage the lock, pull it
back with your fingernail.
When reinstalling the connector, push the connector onto
the actuator. A “click” should be heard.
Then, push the lock into the connector. When the lock is
pushed in, a second “click” should be heard.
NOTICE
The position of the connector lock mechanism should
be checked if you are experiencing diagnostic trouble
codes related to the E-VES system or if the EV Learn
Procedure fails due to insufficient battery voltage and
the battery is supplying at least 12.5 volts.
EV ACTUATOR CONNECTOR PINOUT
COMPONENT COLOR FUNCTION
q
EV Actuator
Pin 1
WH / DG
EV Actuator H-
Bridge (-)
w
EV Actuator
Pin 2
WH / DB
EV Actuator H-
Bridge (+)
e
EV Actuator
Pin 3
N/A N/A
r
EV Actuator
Pin 4
RD / WH
ECU 5V Sensor
Power
t
EV Actuator
Pin 5
BN / WH ECU Ground
y
EV Actuator
Pin 6
DG / OG
EV Actuator
Position
ENGINE / COOLING / EXHAUST
