9850064 R03 - 2021 650 / 850 Matryx Trail Performance / Crossover Snowmobile Service Manual
© Copyright Polaris Inc.

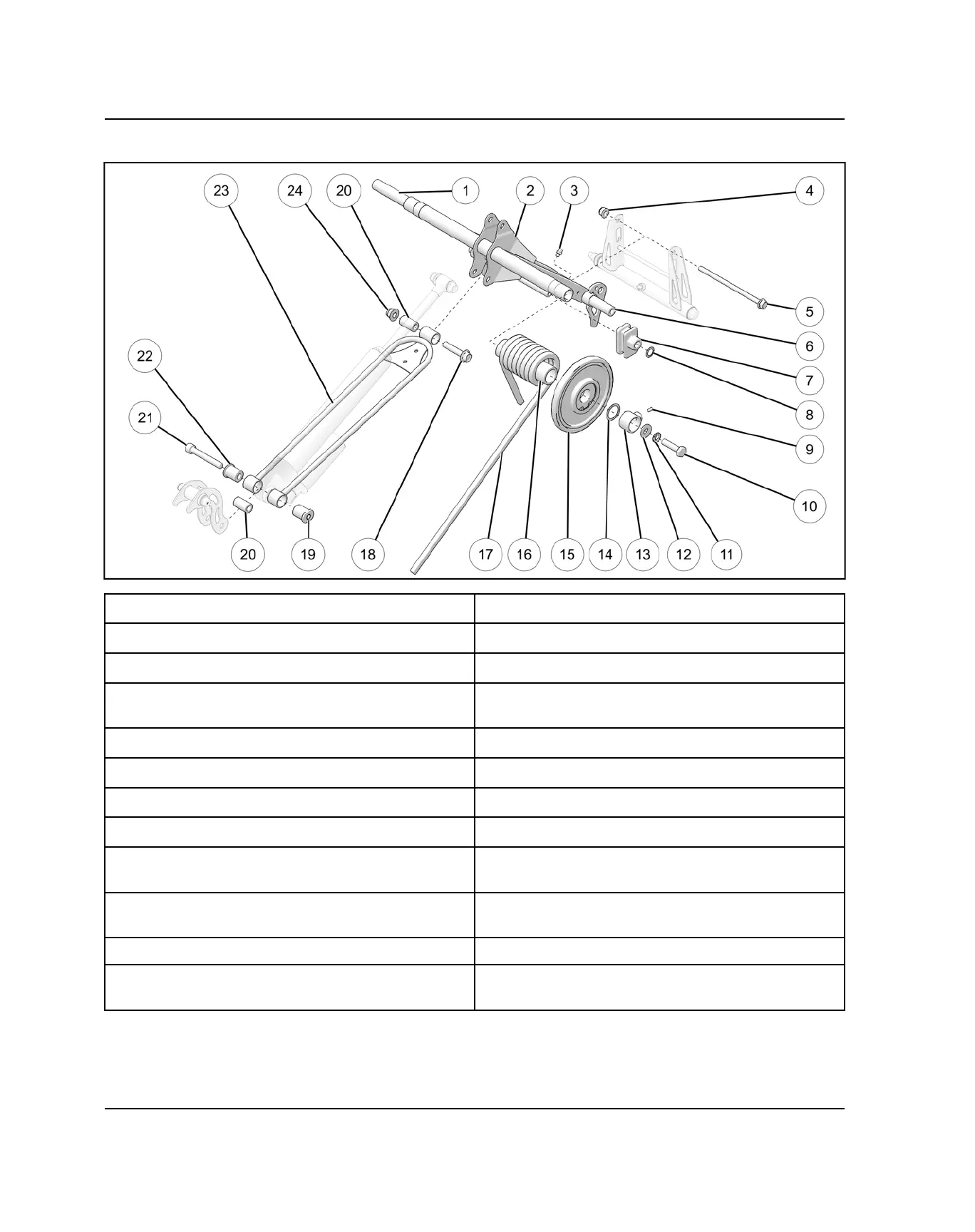

IGX 146 REAR TORQUE ARM ASSEMBLY VIEW
q
Rear Torque Arm Shaft
f
Spacer
w
Rear Torque Arm
g
Spring Washer
e
Lubrication Fitting
h
Plain Carrier Wheel
r
Nut
17 ft-lbs (23 N·m)
j
Torsion Spring Sleeve
t
Rear Torque Arm to Rear Pivot Arm Fastener
k
Torsion Spring
y
Rear Torque Arm Shaft
l
Upper Shock Rod Fastener
u
Roller Spring Adjuster
1(
RTS Threaded Bushing
i
Push On Clip
2)
Bushing
o
Set Screw
2!
Lower RTS Fastener
33 ft-lbs (45 N·m)
a
Rear Torque Arm to Tunnel Fastener
46 ft-lbs (63 N·m)
2@
RTS Bushing
s
Washer
2#
Shock Rod
d
Washer
2$
Nut
33 ft-lbs (45 N·m)
STEERING / SUSPENSIONS
