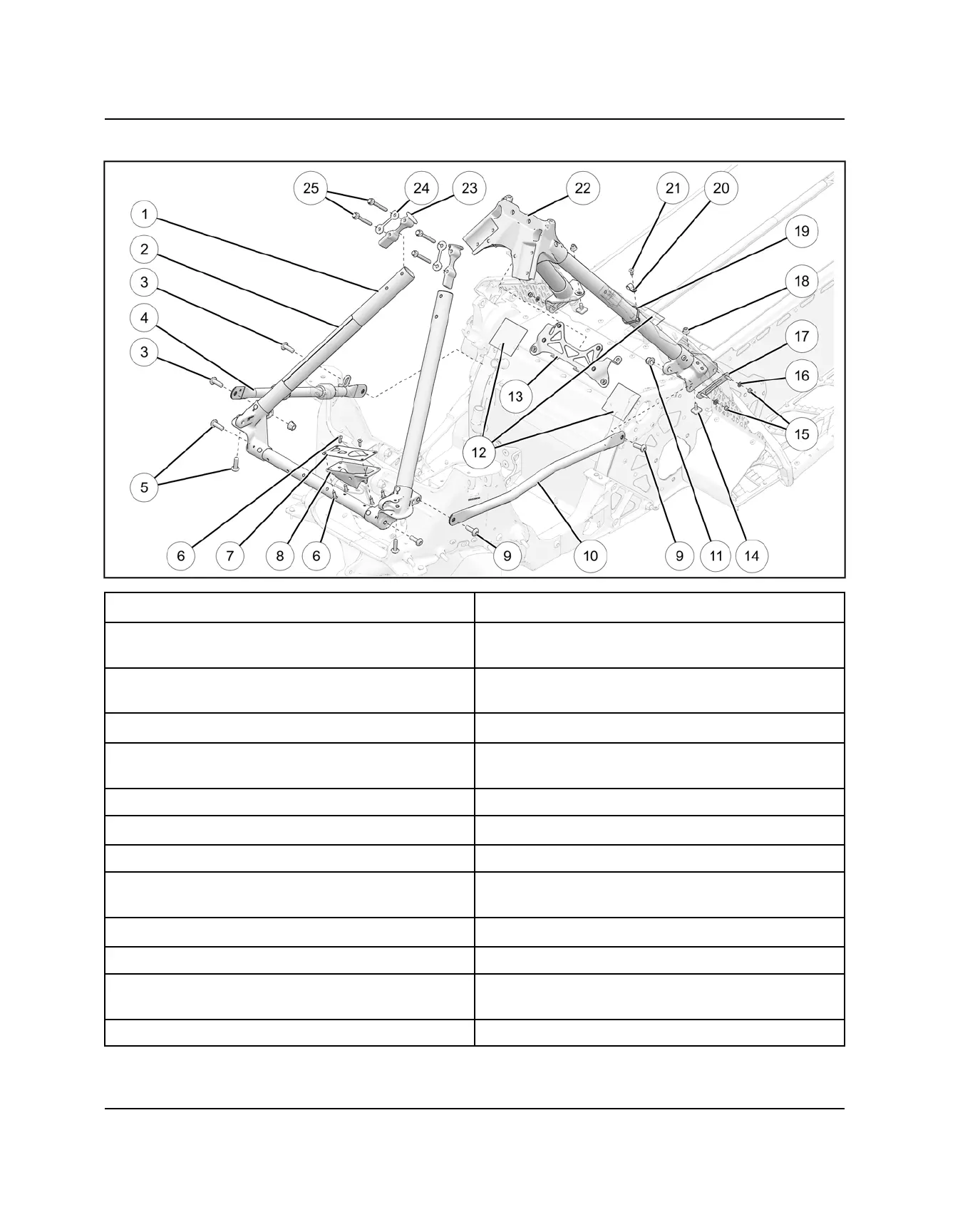

OVER STRUCTURE ASSEMBLY VIEW
q
Front Frame (Over Structure)
g
Square Mounting Bolts
w
Foil
h
Nut
40 in-lbs (4.5 N·m)
e
Tube Brace Fasteners
22 ft-lbs (30 N·m)
j
Washer
r
Right Tube Brace
k
Stud Plate
t
Front Lower Over Structure Fasteners
22 ft-lbs (30 N·m)
l
Nut
9 ft-lbs (12 N·m)
y
Rivets
1(
Cable Tie
u
Load Center Bracket
2)
Cable Clap
i
Load Center Mount
2!
Rivet
o
Tube Brace Fasteners
22 ft-lbs (30 N·m)
2@
Rear Frame (Over Structure)
a
Left Tube Brace
2#
Tube Spacers
s
Nut
2$
Tube Shims
d
Foam Pads
2%
Upper Over Structure Fasteners
12.5 ft-lbs (17 N·m)
f
PBR Mount
