9850064 R03 - 2021 650 / 850 Matryx Trail Performance / Crossover Snowmobile Service Manual
© Copyright Polaris Inc.
10.37

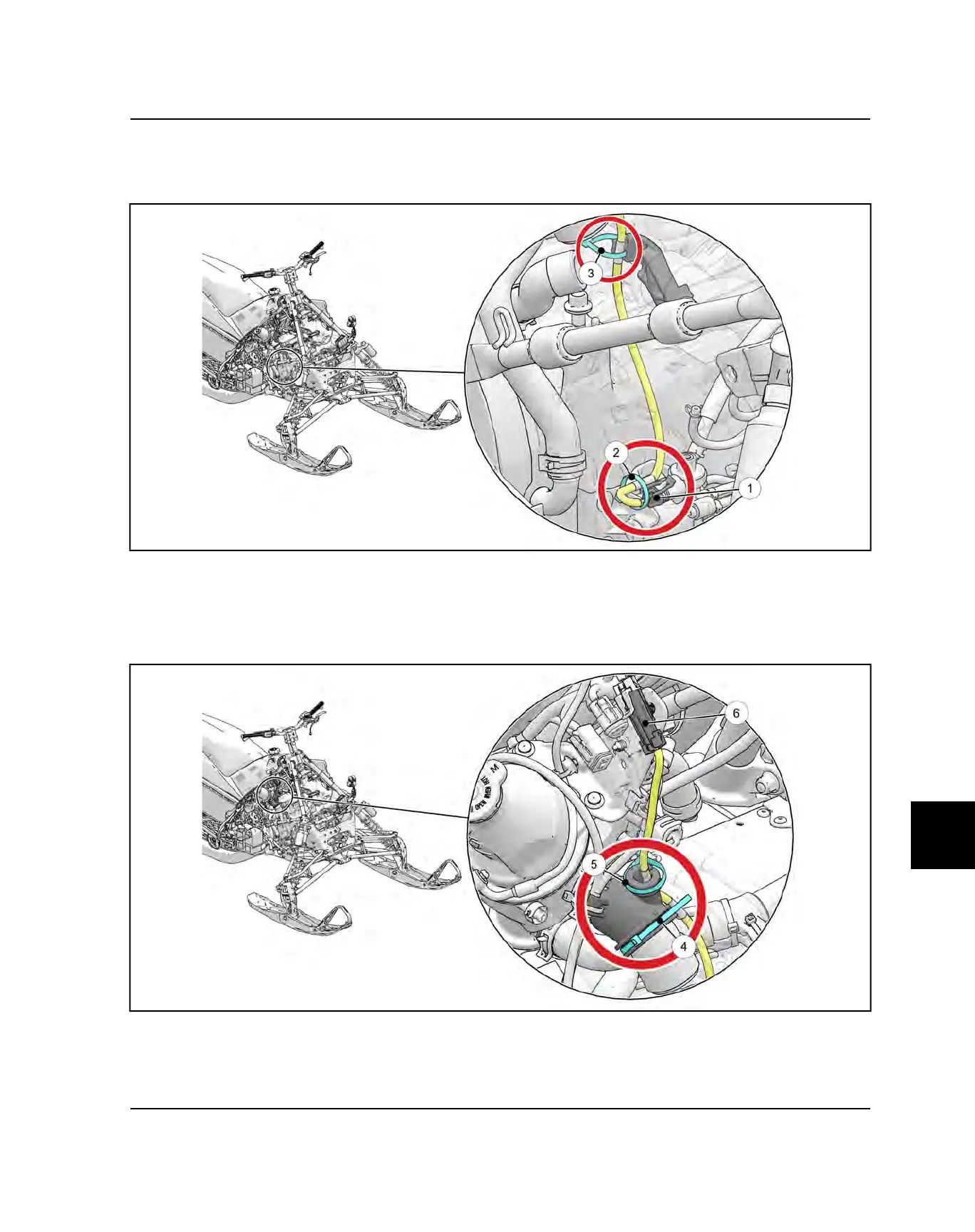

OIL PUMP JUMPER HARNESS ROUTING
1. Connect the oil pump jumper harness connector
q
to the electronic oil pump. Route the jumper harness back
along the connector and secure the jumper harness to the connector with a panduit strap
w
.
2. Route the oil pump jumper harness up to the stator wire retainer and secure jumper harness with a panduit strap
e
.
3. Route the oil pump jumper harness upward toward the coolant bottle and secure on the outside of the hose/
electrical support with a panduit
r
. Continue to route the oil pump jumper harness upward and secure in the hose/
electrical support with a panduit
t
.
4. Complete routing by connecting oil pump jumper harness connector
y
to the main harness connector. Secure the
oil pump jumper harness connector to the connector placement bracket using the Christmas tree clip on the
connector.
BATTERY / ELECTRICAL
