9850064 R03 - 2021 650 / 850 Matryx Trail Performance / Crossover Snowmobile Service Manual
© Copyright Polaris Inc.
6.27

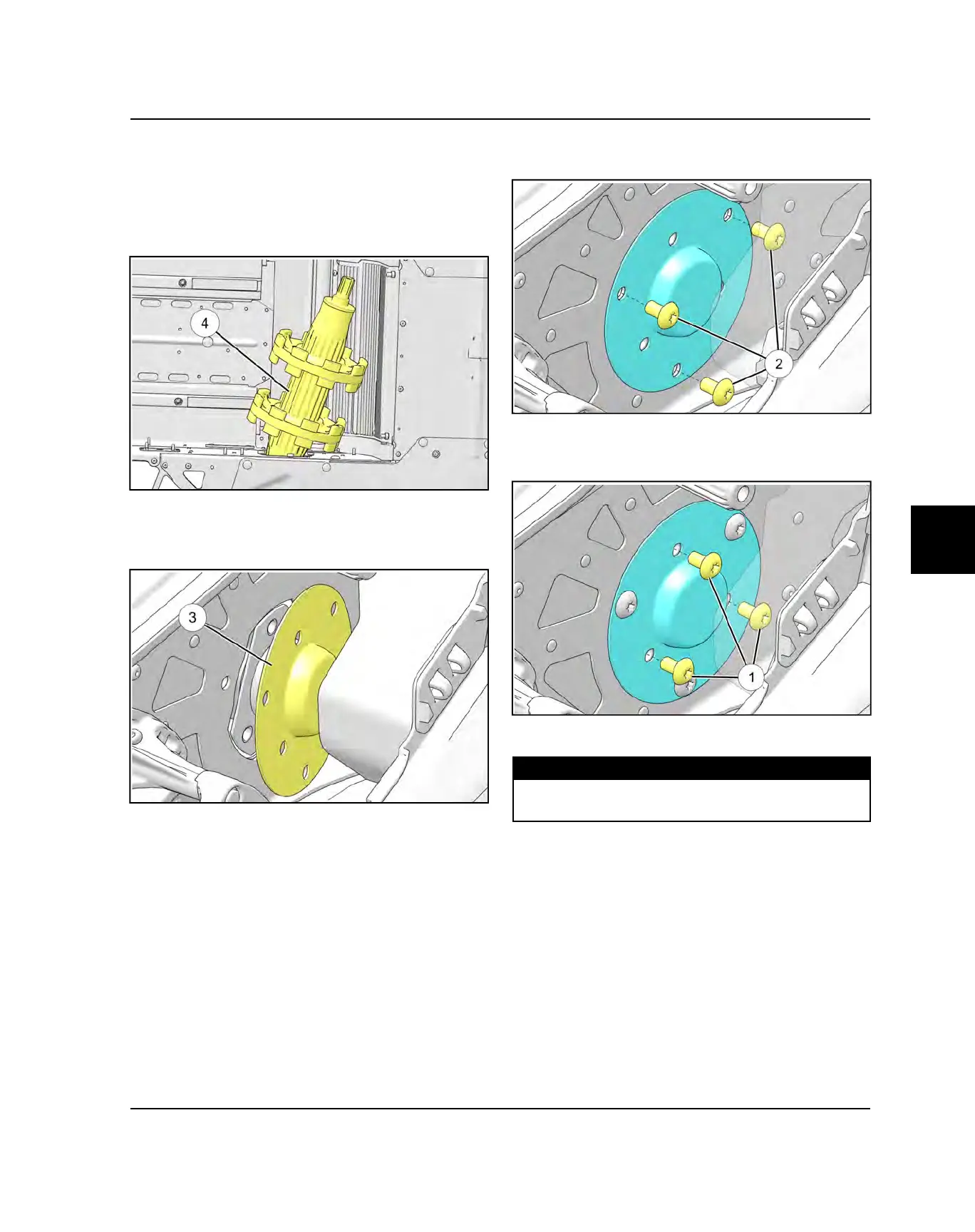

DRIVESHAFT INSTALLATION
1. From underneath the tunnel, install the track. Verify
the arrows on the track point in the direction of
forward vehicle travel.
2. Insert the driveshaft
r
through the clutch-side of the
bulkhead.
3. Insert the splined-end of the driveshaft into the
chaincase.
4. Install the bearing cover and align mounting holes.
5. Loosely install the three outer fasteners
w
, securing
the bearing cover to the tunnel.
6. Loosely install the three fasteners
q
, securing the
driveshaft bearing flange to the tunnel / bearing
cover.
7. Torque the bearing cover fasteners to specification.
TORQUE
Driveshaft Bearing Cover Fasteners:
18 ft-lbs (25 N·m)
8. Reinstall the driven clutch assembly.
9. Reinstall the rear suspension.
10.Follow the procedure for chaincase reassembly.
FINAL DRIVE / BRAKE SYSTEMS
